Xerox ColorQube 9303 Series Service Manual

February 2013
4-217
ColorQube® 9303 Family
REP 12.70-171, REP 12.71-171
Repairs/Adjustments
REP 12.70-171 Tri-Folder Feed Roller and Drive Belt
Parts List on PL 12.205.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Undock the Tri-Folder from the HVF and move the unit to the right to access the left side
of the frame, REP 12.99-171.
2. Remove the drive belt, Figure 1.

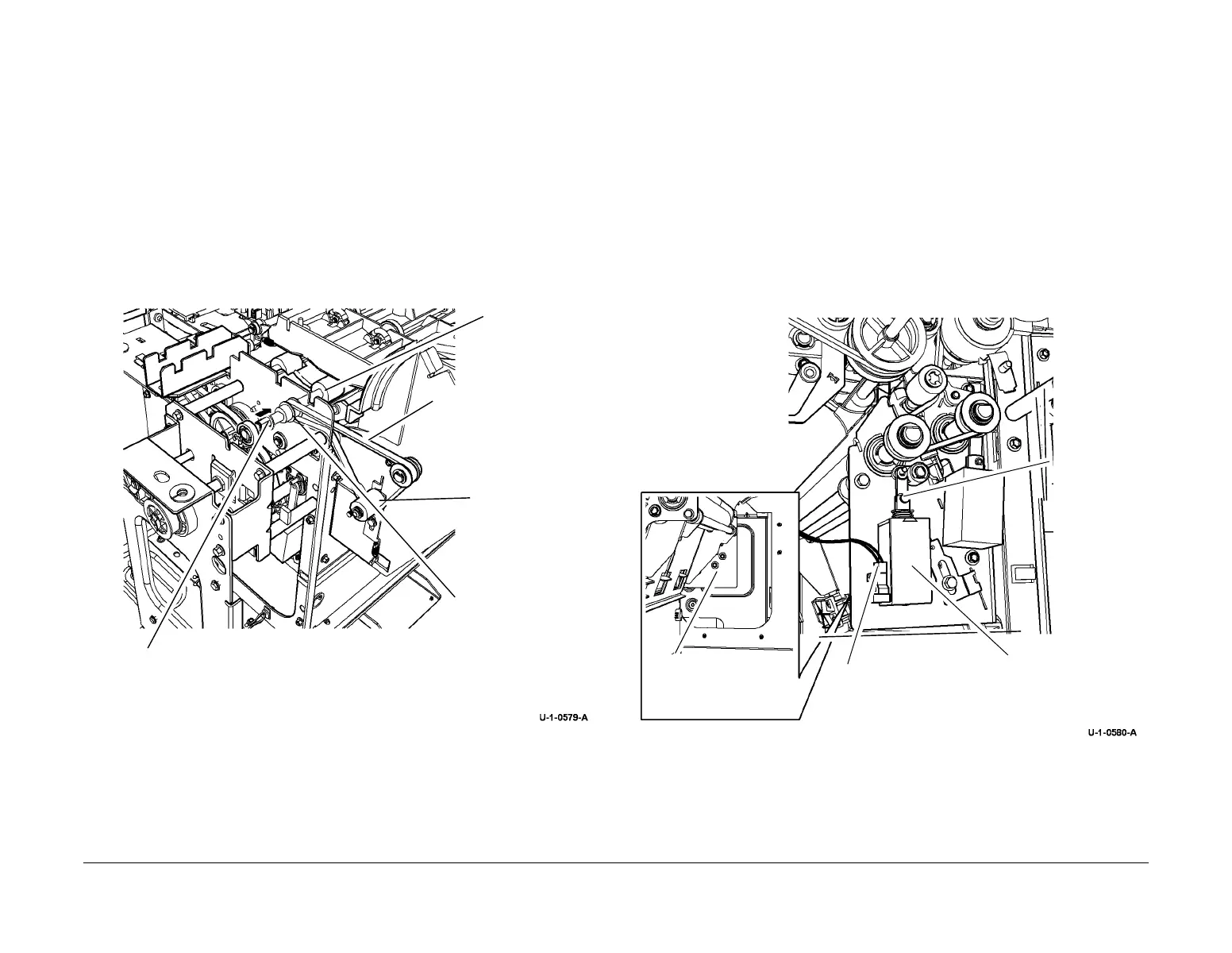

Figure 1 Feed Roller and Drive Belt
3. If required, remove the feed roller shaft front circlip and bearing and remove the feed
roller assembly from the Tri-Folder.
Replacement
1. Reverse the removal procedures to replace the feed roller and drive belt.
2. Before docking the Tri-Folder unit to the HVF, perform ADJ 12.10-171, Motor Driven Belt
Tensioning
REP 12.71-171 TF Assist Gate Solenoid
Parts List on PL 12.215.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Open the TF front door, or remove the Bin 2 assembly, then remove the Tri-Folder rear
cover, REP 12.67-171.
2. Disconnect the harness and remove the solenoid and spring, Figure 1. Remove the arma-
ture and lever if required.
Figure 1 Assist Gate Solenoid
Replacement
1. Reverse the removal procedures to replace the entry solenoid.
2. Refit the armature and lever before replacing the spring and solenoid coil. If necessary,
get assistance to hold the armature coil in position when replacing the screws.
Driven pulley
Feed roller
1
Release the tension
on the belt.
3
Pull the feed roller through
the frame bearing then
remove the drive belt.
2
Remove the circlip, then move the feed roller
shaft towards the front to remove the drive
pulley.
1
Remove 2 screws
behind frame.
2
Disconnect harness.
3
Remove solenoid and
spring.
Armature and
lever
