Xerox Phaser 3200MFP Service Manual

General Procedures and Information
Phaser 3200MFP / Workcentre PE220 04/07 6-11
GP 2 System Overview
System Layout
The system comprises of the Main Controller, Operation Panel, Scanner, Line Interface and Pow-
er supply. Each component is modular with focus on common and standard designs of different
products. The Main controller consists of the Fax & LBP Printer, Chorus2 CPU(ASIC) (PE220) /
Chorus-M CPU(ASIC) (Phaser 3200) and 1 Board. The scanner comprises of the ADF and Platen
Assembly and is connected to the Main PBA.

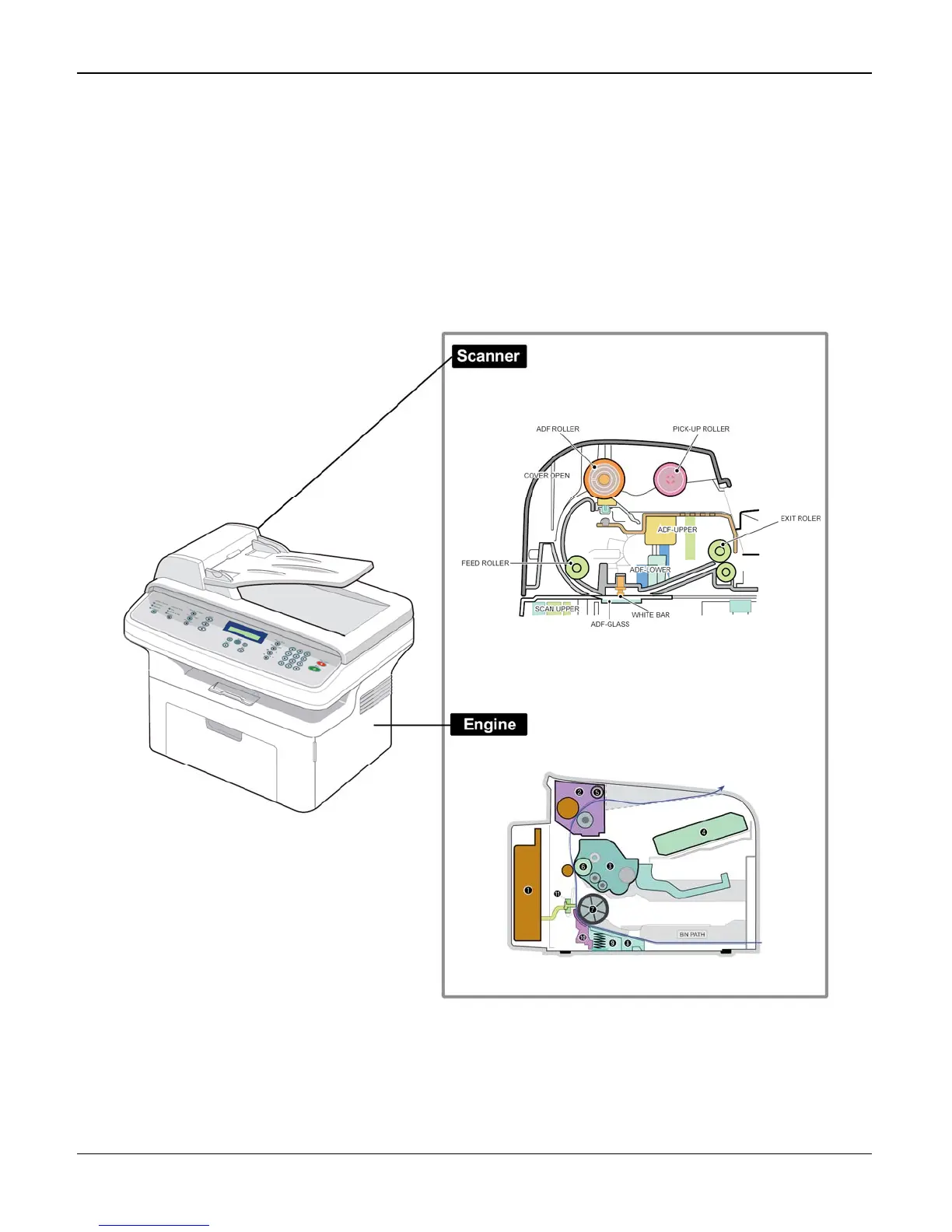

Figure 1

Xerox Phaser 3200MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
First Page Out Time	Less than 10 seconds
Copy Resolution	Up to 600 x 600 dpi
Maximum Copy Count	99 copies
Fax Transmission Speed	33.6 kbps
Standard Paper Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Operating System Compatibility	Windows, Mac OS
Duplex Printing	Manual
Scan Type	Flatbed
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Media Weight	60 to 163 g/m²
Monthly Duty Cycle	10, 000 pages
Toner Yield	Up to 3, 000 pages
