Xerox Phaser 3200MFP Service Manual

General Procedures and Information
Phaser 3200MFP / Workcentre PE220 04/07 6-53

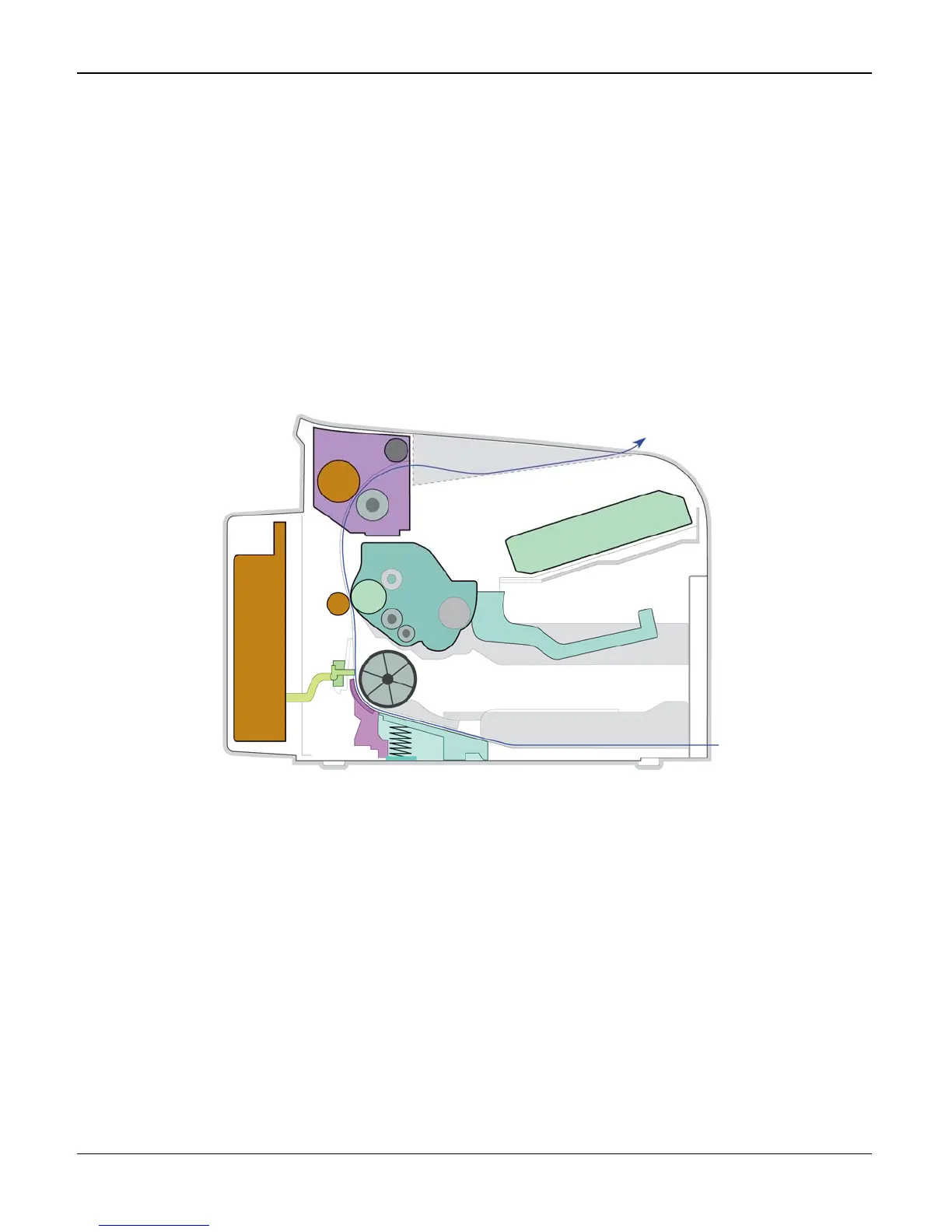

Printer Paper Path
1) After receiving a print command, the printer feeds paper from the main cassette or manual feed-
er as required.
2) The paper being fed passes the paper feed sensor. (Jam 0 occurs if the sensor is not operated
within a certain time)
3) Having passed the paper feed sensor the paper moves to the paper exit sensor via printing
process. (Jam 1 occurs if the sensor is not operated within a certain time)
4) The paper then passes through the paper exit sensor and out of the set. (Jam 2 occurs if the
trailing edge of the
paper does not pass the exit sensor within a certain time of the paper leading edge activating the
exit sensor)
Figure 2

Xerox Phaser 3200MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
First Page Out Time	Less than 10 seconds
Copy Resolution	Up to 600 x 600 dpi
Maximum Copy Count	99 copies
Fax Transmission Speed	33.6 kbps
Standard Paper Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Operating System Compatibility	Windows, Mac OS
Duplex Printing	Manual
Scan Type	Flatbed
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Media Weight	60 to 163 g/m²
Monthly Duty Cycle	10, 000 pages
Toner Yield	Up to 3, 000 pages
