Xerox Phaser 3200MFP Service Manual

Repairs/Adjustments
Phaser 3200MFP / Workcentre PE220 04/07 4-3
REP 1 MP Tray
Parts list on PL 9.0
Note: The illustrations show the Workcentre
PE220 but the procedure is identical for the
Workcentre PE220 and Phaser 3200.
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.

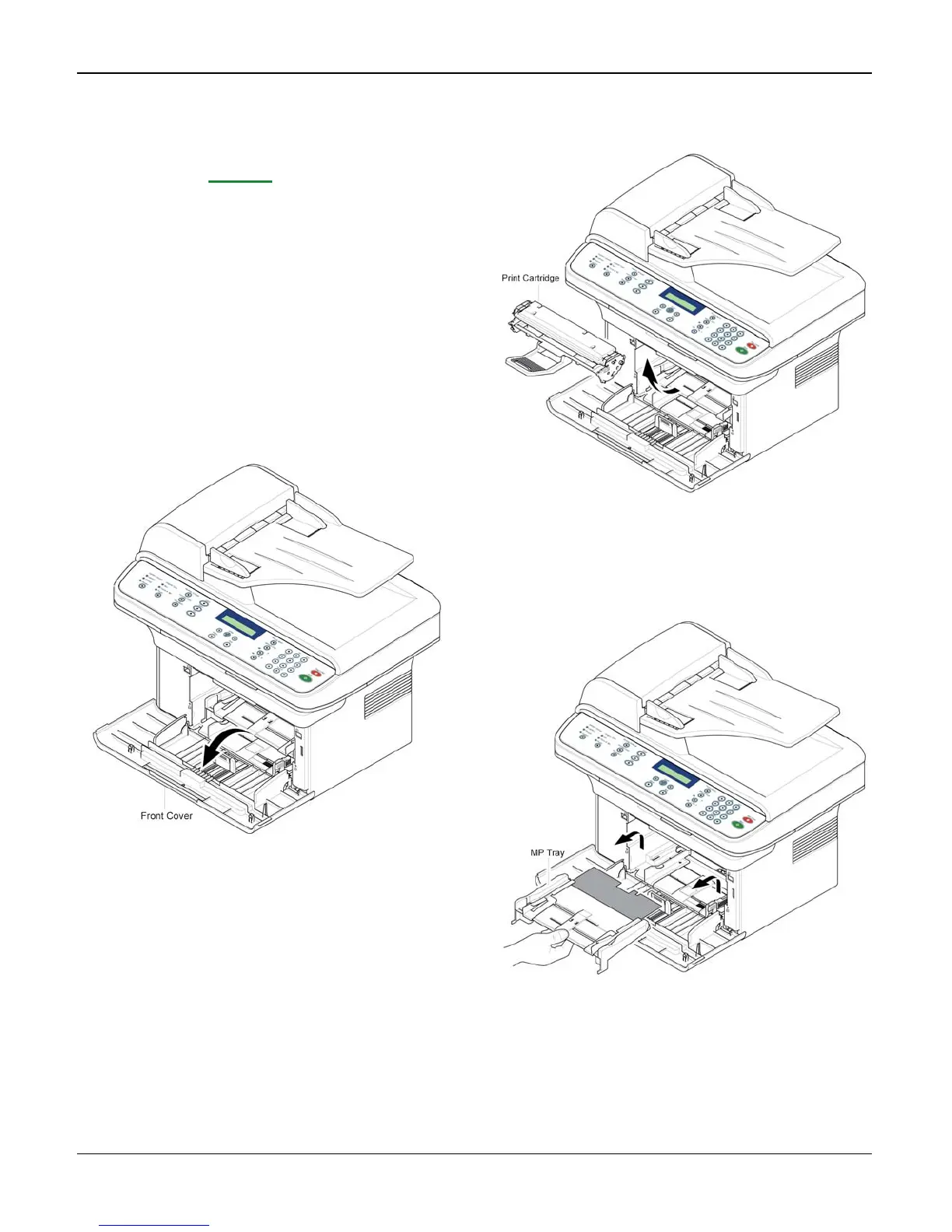

1. Open the front cover, Figure 1.
Figure 1
2. Remove the toner cartridge, Figure 2.
Figure 2
3. Hold the MP tray and pull it in the direction
of the arrow, Figure 3.
Figure 3
