Xerox Phaser 3200MFP Service Manual

Repairs/Adjustments
Phaser 3200MFP / Workcentre PE220 04/07 4-23
REP 14.1 Main PBA
Phaser 3200
Parts list on PL 1.1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.

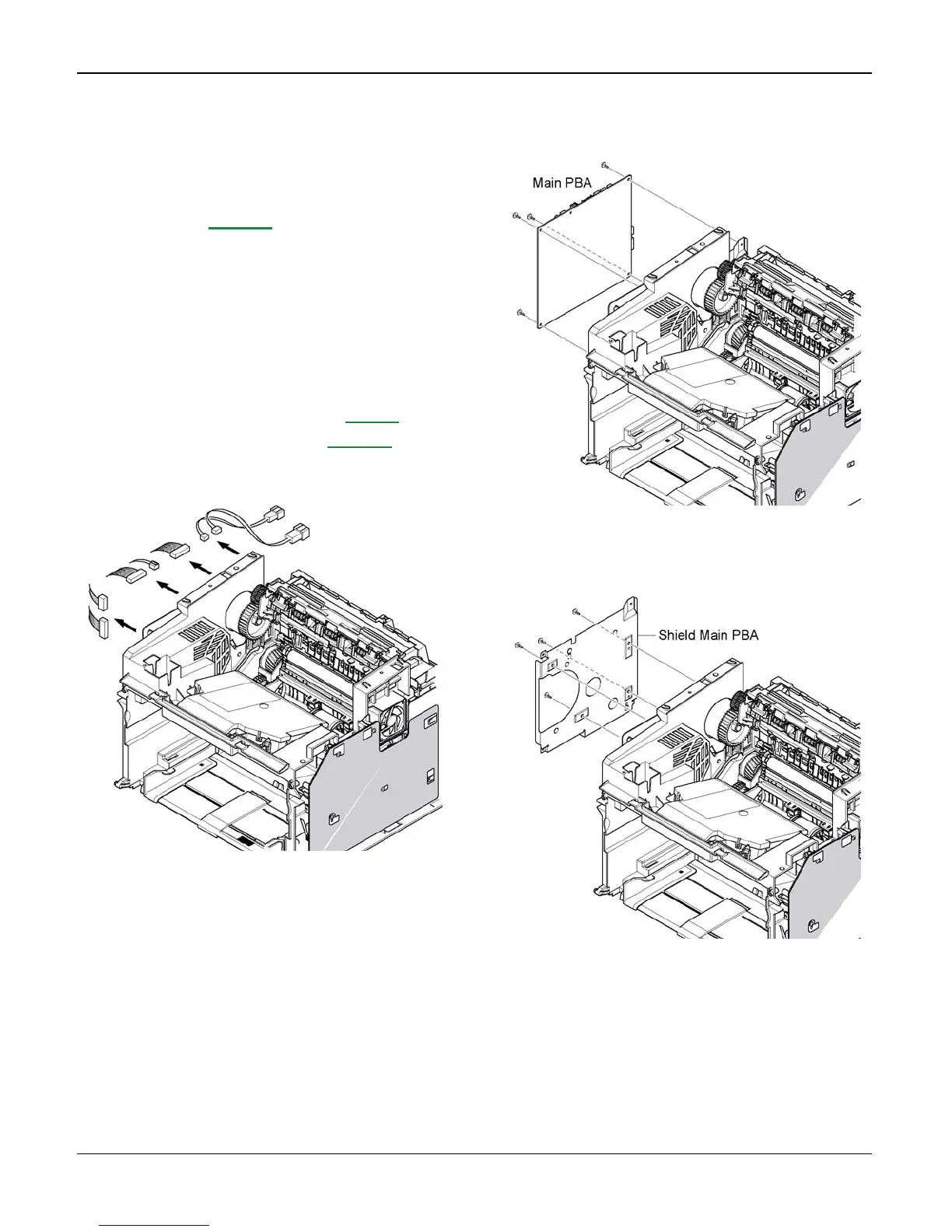

1. Remove the scan assembly, REP 8.
2. Remove the middle cover, REP 12.
3. Unplug the all Connectors from the main
PBA, Figure 1.
Figure 1
4. Remove 4 screws securing the main PBA
and remove it, Figure 2.
Figure 2
5. Remove 4 screws securing the shield
main PBA and remove it, Figure 3.
Figure 3
Replacement
Replacement is the reverse of the removal
procedure.

Xerox Phaser 3200MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
First Page Out Time	Less than 10 seconds
Copy Resolution	Up to 600 x 600 dpi
Maximum Copy Count	99 copies
Fax Transmission Speed	33.6 kbps
Standard Paper Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Operating System Compatibility	Windows, Mac OS
Duplex Printing	Manual
Scan Type	Flatbed
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Media Weight	60 to 163 g/m²
Monthly Duty Cycle	10, 000 pages
Toner Yield	Up to 3, 000 pages
