Repairs/Adjustments
4-34 04/07 Phaser 3200MFP / Workcentre PE220
Replacement
Replacement is the reverse of the removal
procedure.
REP 17 Engine Shield (LIU
PBA, SMPS)
Parts list on:
- PL 1.0 (Workcentre PE220)
- PL 1.1 (Phaser 3200)
Note: The illustrations show the Workcentre
PE220 but the procedure is identical for the
Workcentre PE220 and Phaser 3200.
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the scan assembly, REP 8.
2. Remove the middle cover, REP 12.
3. Unplug all Connectors from the SMPS
and LIU PBA, Figure 1.

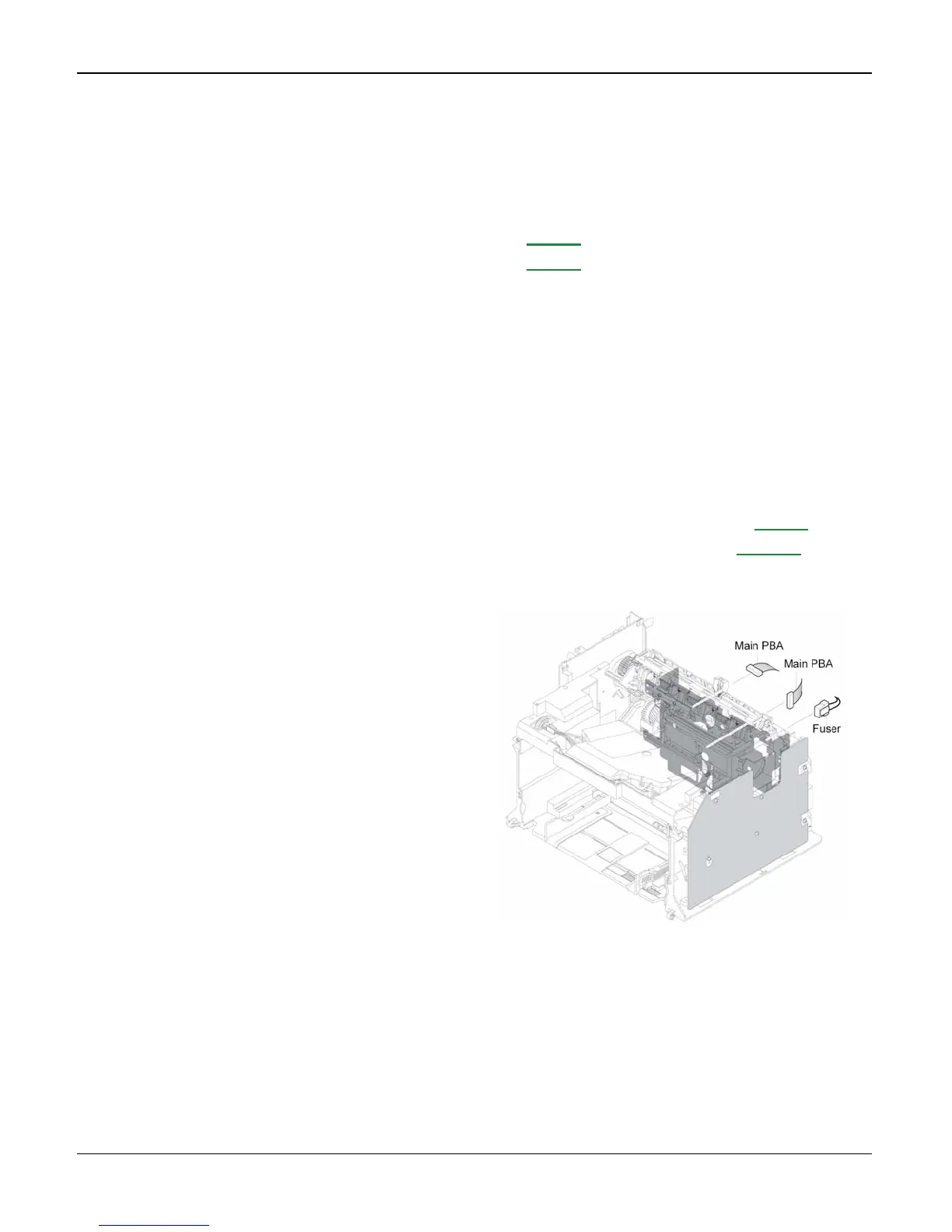

Figure 1
To Next Page
