Xerox Phaser 3200MFP Service Manual

Status Indicator RAPs
Phaser 3200MFP / Workcentre PE220 04/07 2-9

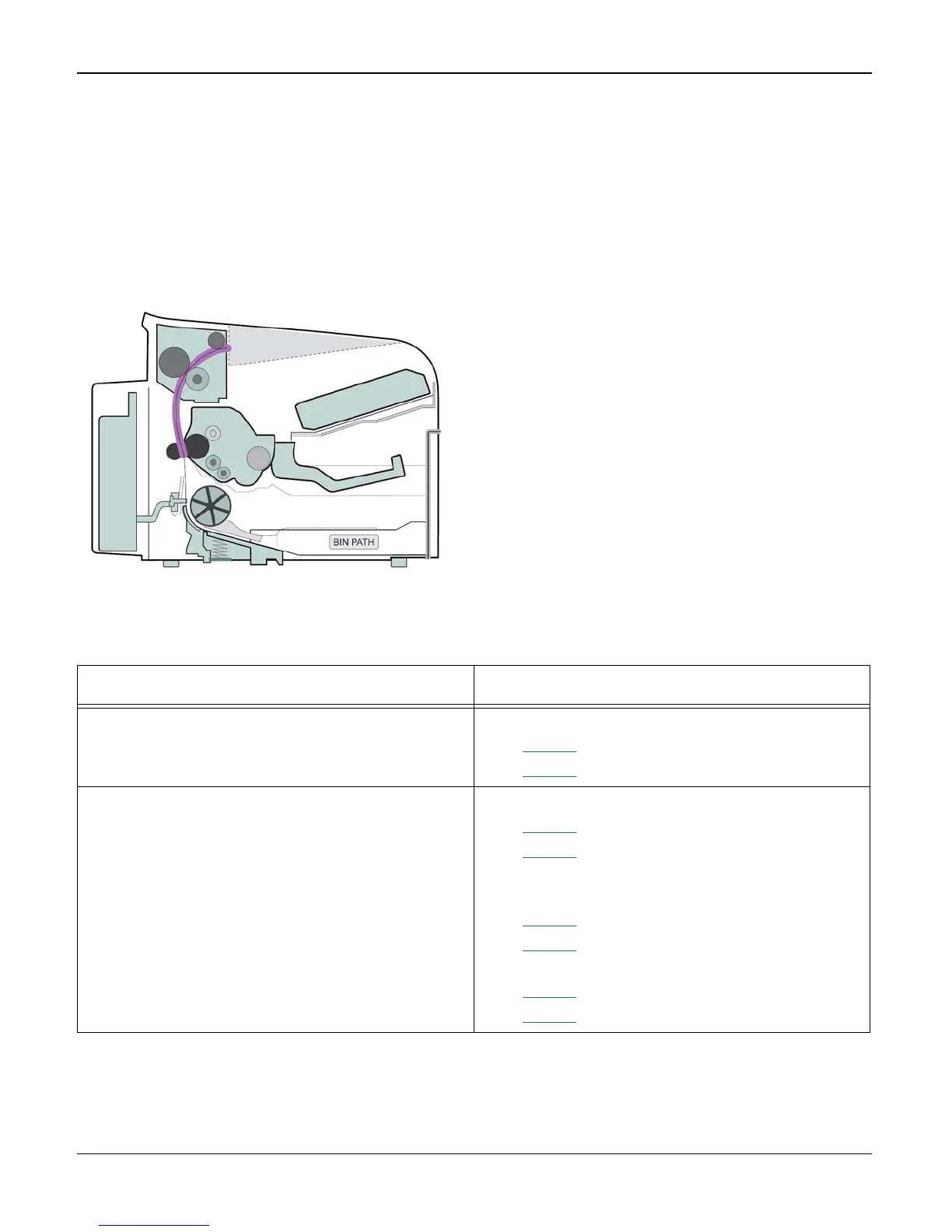

4 JAM 2 RAP
Description
Paper is jammed inside the fuser.
Paper is jammed in the discharge roller and in the fuser just after passing through the Actuator-
Feed.
Check and Cause Solution
1. If the paper is completely fed out of the
machine, but Jam 2 occurs, the exit sensor
actuator may be defective.
1. Check the exit sensor actuator:
- PL 7.0 (Workcentre PE220)
- PL 1.4 (Phaser 3200).
2. Concertina jam occurs in the fuser. 2. Remove any paper jammed in the fuser:
- PL 7.0 (Workcentre PE220)
- PL 7.1 (Phaser 3200)
Clean and check the parts as necessary:
• Pressure roller
- PL 7.0 (Workcentre PE220)
- PL 7.1 (Phaser 3200)
• Main Frame Assembly
- PL 8.0 (Workcentre PE220)
- PL 8.1 (Phaser 3200)

Xerox Phaser 3200MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
First Page Out Time	Less than 10 seconds
Copy Resolution	Up to 600 x 600 dpi
Maximum Copy Count	99 copies
Fax Transmission Speed	33.6 kbps
Standard Paper Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Operating System Compatibility	Windows, Mac OS
Duplex Printing	Manual
Scan Type	Flatbed
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Media Weight	60 to 163 g/m²
Monthly Duty Cycle	10, 000 pages
Toner Yield	Up to 3, 000 pages
