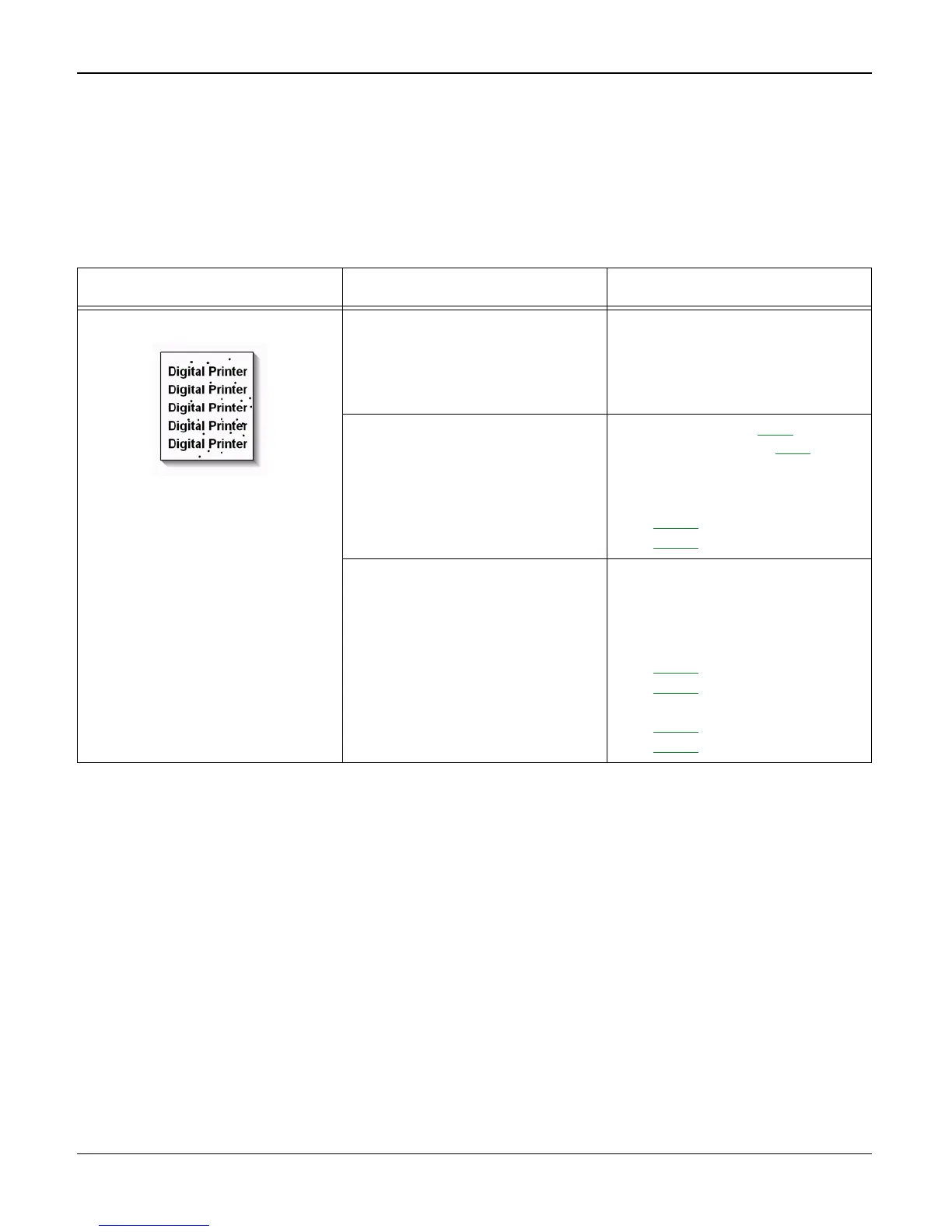

Image Quality
3-6 04/07 Phaser 3200MFP / Workcentre PE220
IQ 4 Black/White Spot
Description
Dark or blurry black spots on the print.
White spots occur on the print.
Check and Cause Solution
1. If faded areas or voids occur in a
black image at intervals of 75.5
mm, or black spots occur else-
where, the OPC drum surface is
damaged.
1. Remove foreign substances
stuck on the OPC location equiva-
lent to black spots and white spots
with a clean cloth.
2. If dark or blurry black spots occur
periodically, the rollers in the Devel-
oper may be contaminated with for-
eign matter or paper particles.
(Charge roller: 37.7 mm interval,
OPC drum: 75.5 mm interval)
2. Run Clean Drum, GP 3
, and run
the Engine Test Mode, GP 6
, 2 or 3
times.
Check and install a new toner car-
tridge if necessary:
- PL 1.0
(Workcentre PE220)
- PL 1.1
(Phaser 3200)
3. If a black image is partially bro-
ken, the transfer voltage is abnor-
mal or the transfer roller's life has
expired.
(Approximately 50,000 sheets)
3. Clean the inside surfaces of the
machine.
Check and install new parts as nec-
essary:
• Transfer roller
- PL 6.0
(Workcentre PE220)
- PL 8.1
(Phaser 3200)
• Toner cartridge
- PL 1.0
(Workcentre PE220)
- PL 1.1
(Phaser 3200)

Xerox Phaser 3200MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
First Page Out Time	Less than 10 seconds
Copy Resolution	Up to 600 x 600 dpi
Maximum Copy Count	99 copies
Fax Transmission Speed	33.6 kbps
Standard Paper Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Operating System Compatibility	Windows, Mac OS
Duplex Printing	Manual
Scan Type	Flatbed
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Media Weight	60 to 163 g/m²
Monthly Duty Cycle	10, 000 pages
Toner Yield	Up to 3, 000 pages
