Xerox Phaser 3200MFP Service Manual

Repairs/Adjustments
4-10 04/07 Phaser 3200MFP / Workcentre PE220
REP 7 Left Cover
Parts list on
- PL 1.0 (Workcentre PE220)
- PL 1.2 (Phaser 3200)
Note: The illustrations show the Workcentre
PE220 but the procedure is identical for the
Workcentre PE220 and Phaser 3200.
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.

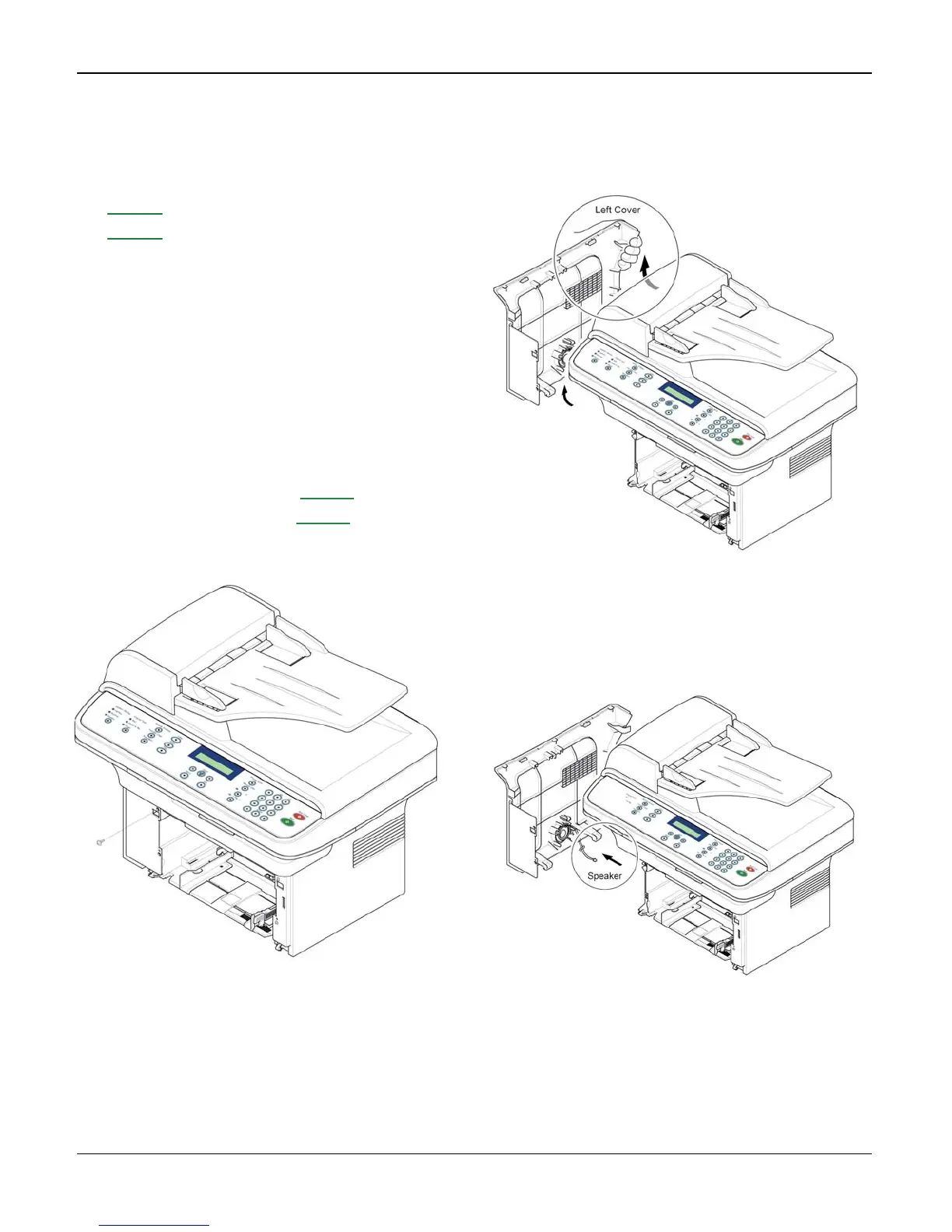

1. Remove the front cover, REP 3.
2. Remove the rear cover, REP 5.
3. Remove the screw securing the left cover,
Figure 1.
Figure 1
4. Apply light pressure to the back of the left
cover and pull it to the left side in the
direction of the arrow, Figure 2.
Figure 2
5. Unplug the speaker connector from the
main PBA, Figure 3.
Figure 3
6. If necessary, remove the two screws
securing the speaker.
