Repairs/Adjustments
4-38 04/07 Phaser 3200MFP / Workcentre PE220
REP 19.1 Paper Path Frame
Phaser 3200
Parts list on PL 6.1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the scan assembly, REP 8.
2. Remove the middle cover, REP 12.
3. Remove the fuser, REP 16.1.
4. Remove the engine shield, REP 17.

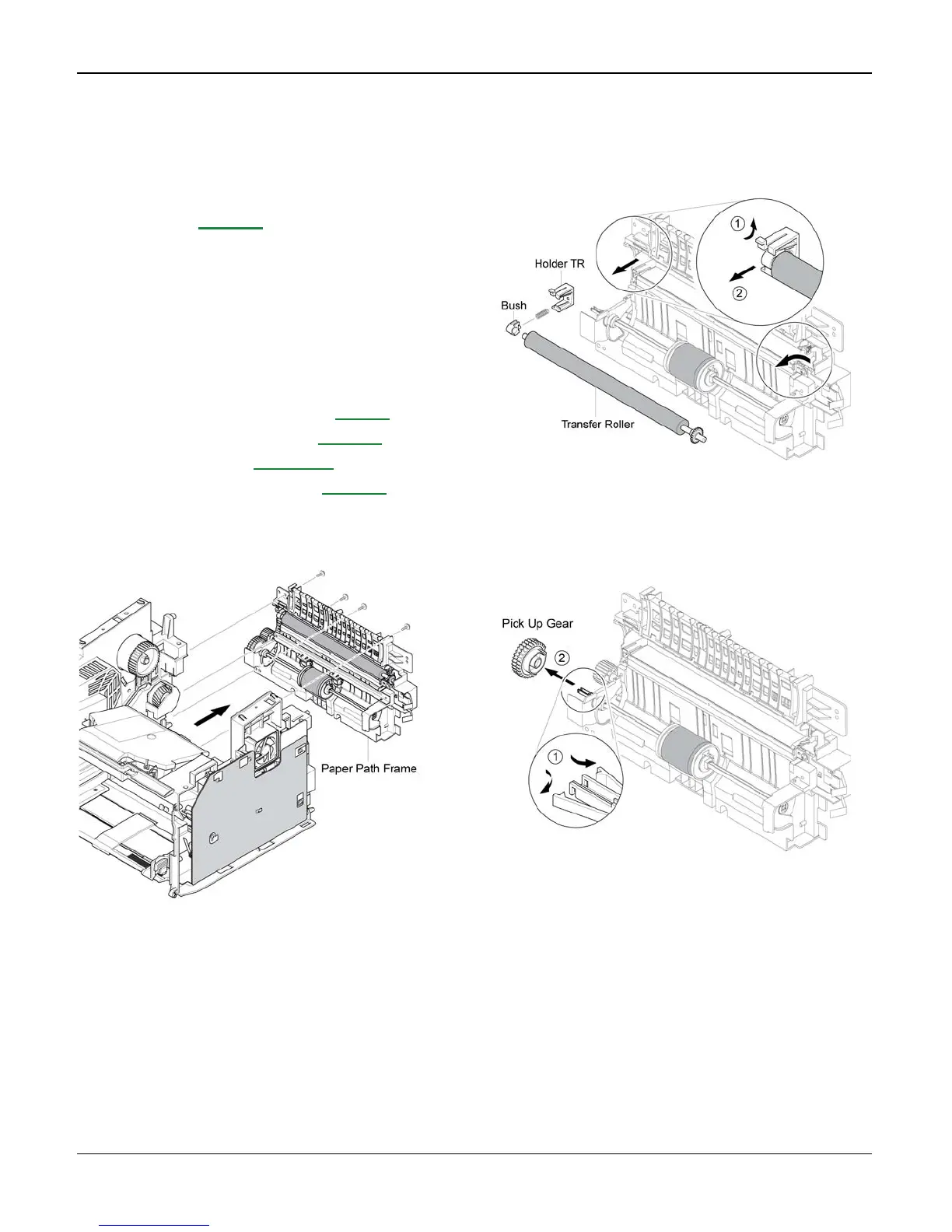

5. Remove 4 screws securing the paper path
frame and remove it in the direction of the
arrow, Figure 1.
Figure 1
6. Unlatch the TR holder from the frame,
then release the transfer roller in the
direction of the arrow, Figure 2.
Figure 2
7. Unlatch the pick up gear and remove it,
Figure 3.
Figure 3
8. Unlatch the pick up cam by lifting the pick
up cam notch and sliding it to the right.
To Next Page
