Repairs/Adjustments
Phaser 3200MFP / Workcentre PE220 04/07 4-11

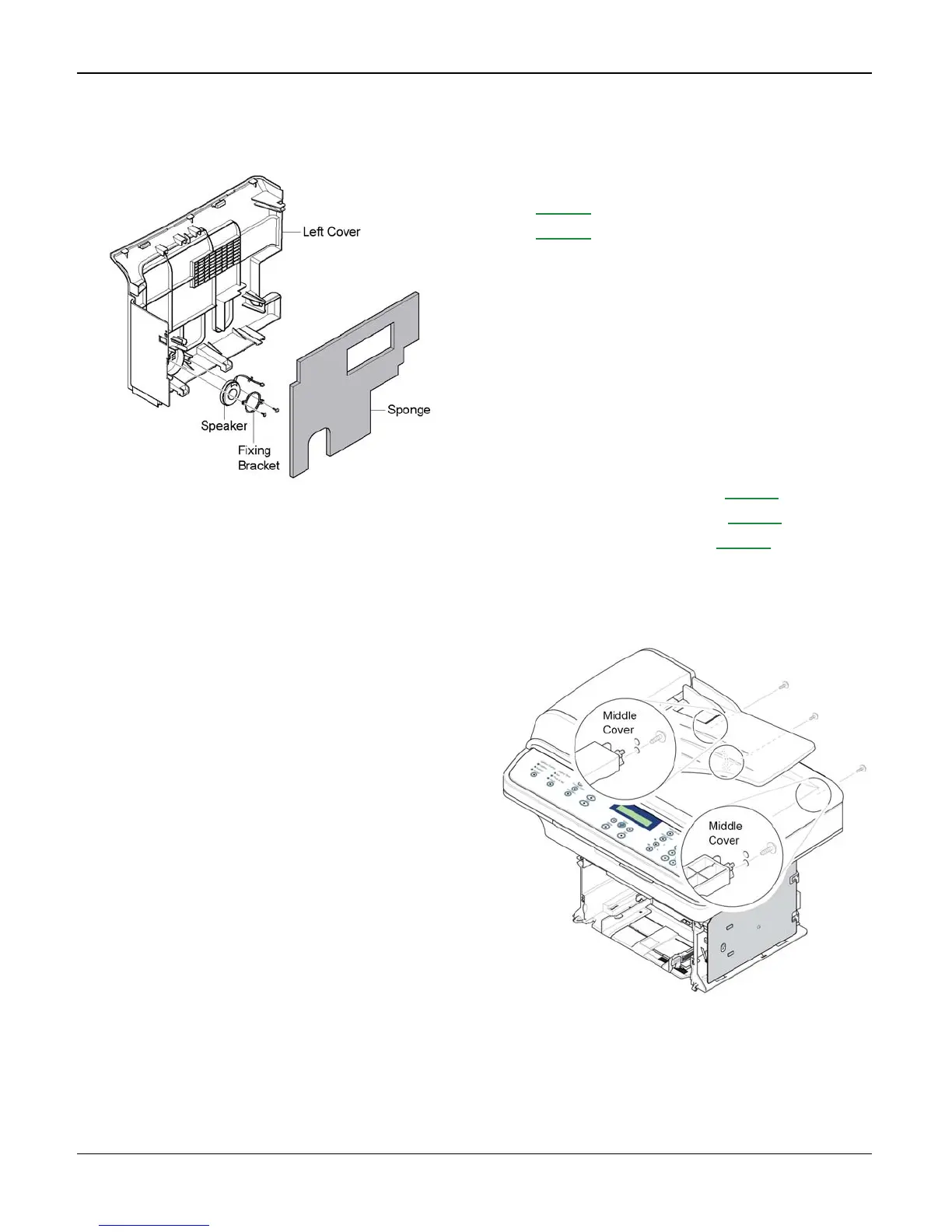

7. If necessary, remove 2 screws securing
the speaker, then remove it, Figure 4.
Figure 4
Replacement
Replacement is the reverse of the removal
procedure.
REP 8 Scanner Assembly
Parts list on
- PL 1.0 (Workcentre PE220)
- PL 1.1 (Phaser 3200)
Note: The illustrations show the Workcentre
PE220 but the procedure is identical for the
Workcentre PE220 and Phaser 3200.
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the rear cover, REP 5.
2. Remove the right cover, REP 6.
3. Remove the left cover, REP 7.
4. Remove 2 screws from the middle cover
and remove the screw securing the
ground cable, Figure 1.
Figure 1
