Repairs/Adjustments
4-36 04/07 Phaser 3200MFP / Workcentre PE220
REP 18 LSU
Parts list on:
- PL 1.0 (Workcentre PE220)
- PL 1.1 (Phaser 3200)
Note: The illustrations show the Workcentre
PE220 but the procedure is identical for the
Workcentre PE220 and Phaser 3200.
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Do not touch the LSU Glass Window. Con-
tamination on the LSU Glass Window can
lead to Image Quality problems.
1. Remove the scan assembly, REP 8.
2. Remove the middle cover, REP 12.

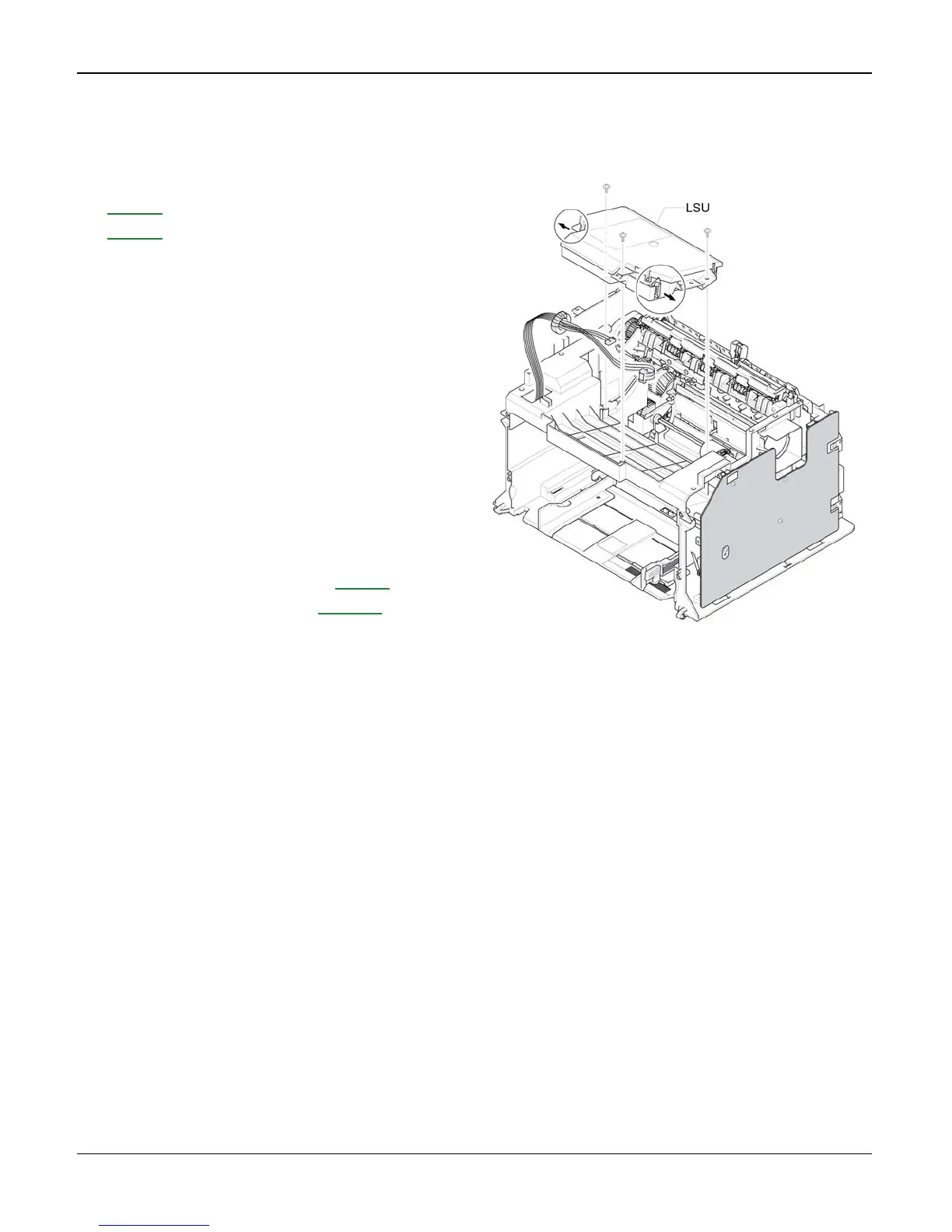

3. Remove 3 screws securing the LSU and
remove it. Unplug the 2 connectors from
the LSU, Figure 1.
Figure 1
Replacement
Replacement is the reverse of the removal
procedure.
