Repairs/Adjustments
4-20 04/07 Phaser 3200MFP / Workcentre PE220

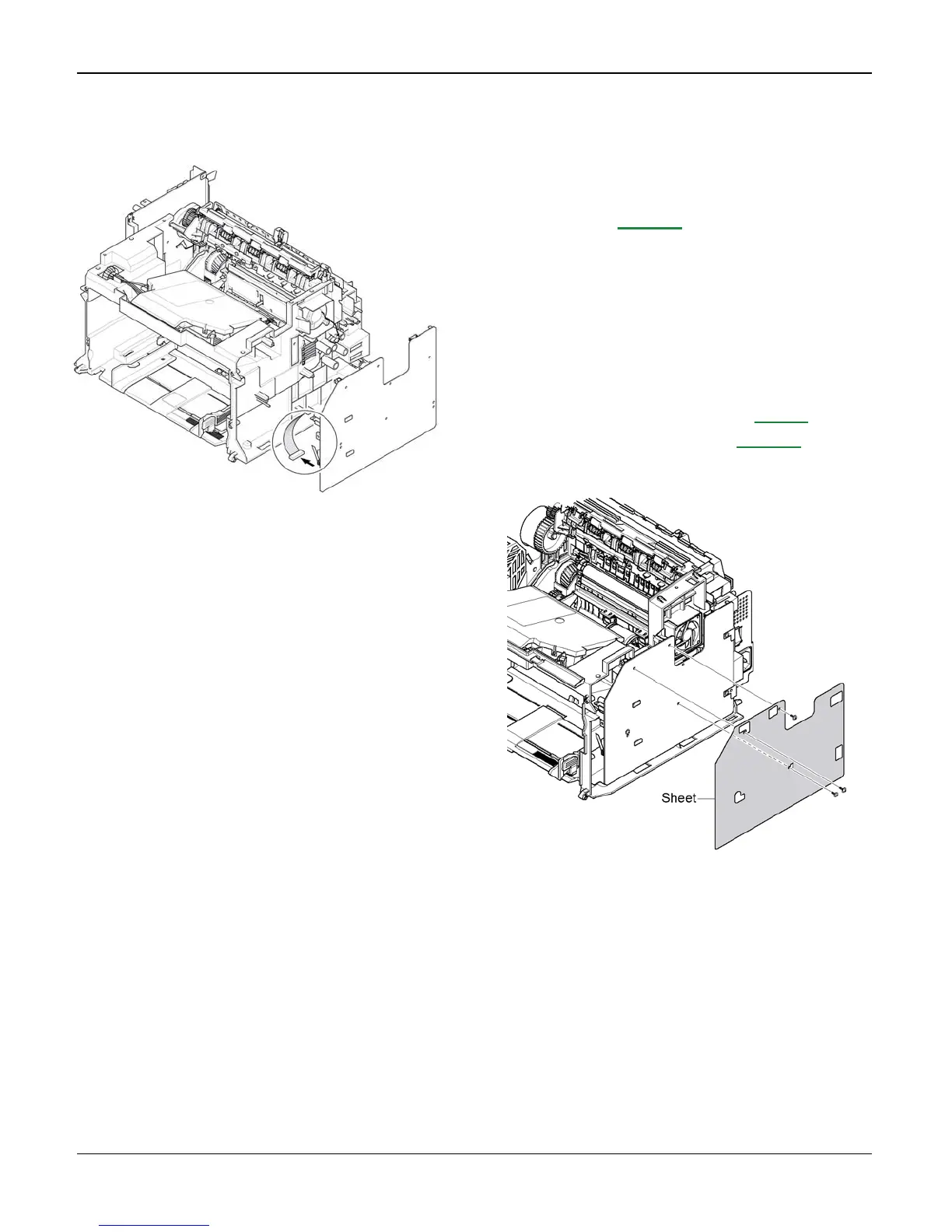

4. Unplug the Connector from the HVPS,
Figure 2.
Figure 2
Replacement
Replacement is the reverse of the removal
procedure.
REP 13.1 HVPS
Phaser 3200
Parts list on PL 1.1
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the scan assembly, REP 8.
2. Remove the middle cover, REP 12.
3. Remove 3 screws securing the Sheet and
remove it, Figure 1.
Figure 1
