Repairs/Adjustments
Phaser 3200MFP / Workcentre PE220 04/07 4-19

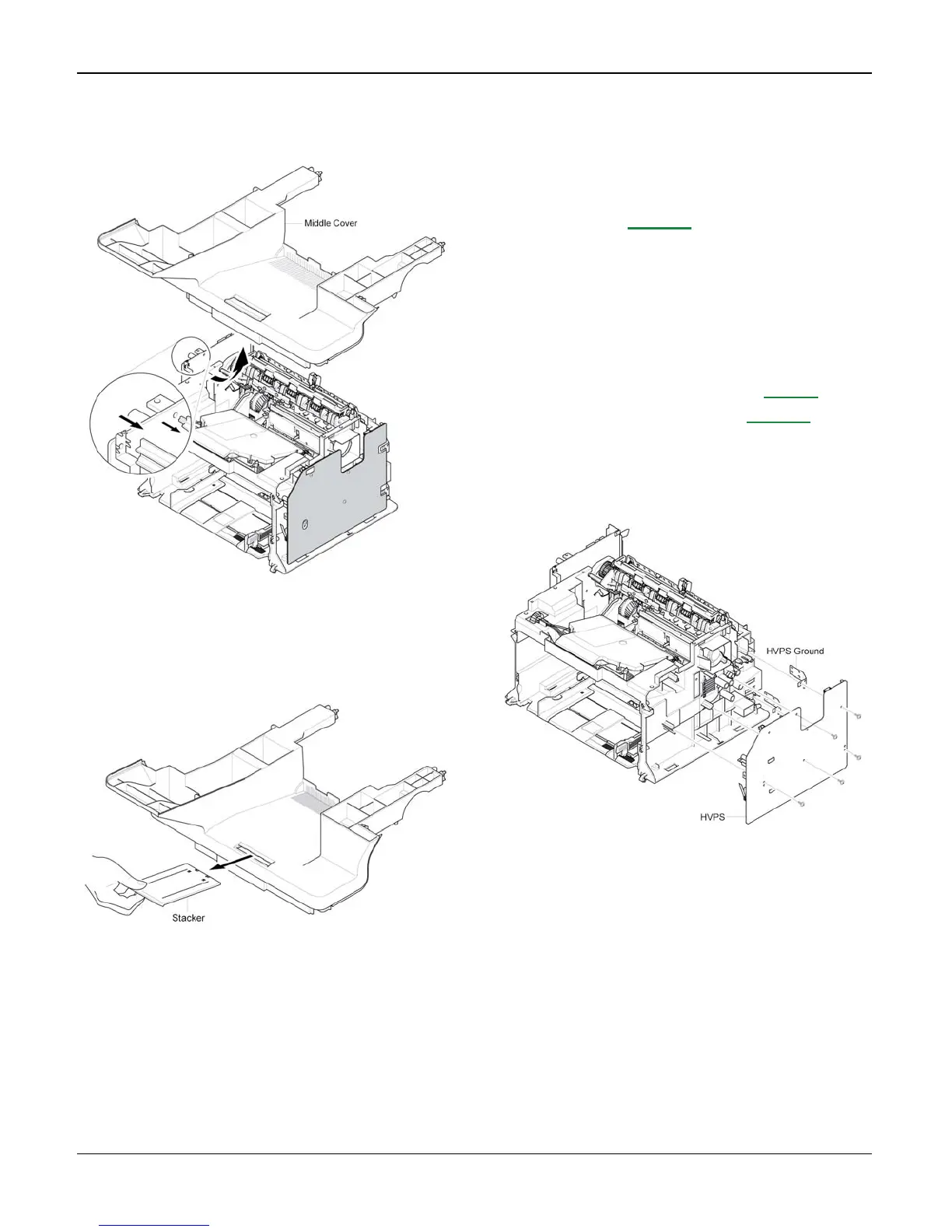

3. Carefully release the middle cover from
the main PBA, Figure 2.
Figure 2
4. If necessary, remove the stacker, Figure
3.
Figure 3
Replacement
Replacement is the reverse of the removal
procedure.
REP 13.0 HVPS
Workcentre PE220
Parts list on PL 1.0
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the scan assembly, REP 8.
2. Remove the middle cover, REP 12.
3. Remove five screws securing the HVPS
and remove it with the HVPS ground, Fig-
ure 1.
Figure 1
