Xerox Phaser 3200MFP - REP 2.0 Pick up Roller (Workcentre PE220)

Repairs/Adjustments
4-4 04/07 Phaser 3200MFP / Workcentre PE220
Replacement
Replacement is the reverse of the removal
procedure.
REP 2.0 Pick Up Roller
Workcentre PE220
Parts list on PL 6.0
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the MP tray, REP 1.
2. To exchange the pick up sponge, pull
apart pick up housing U while pressing
the hooks on both sides of pick up Hous-

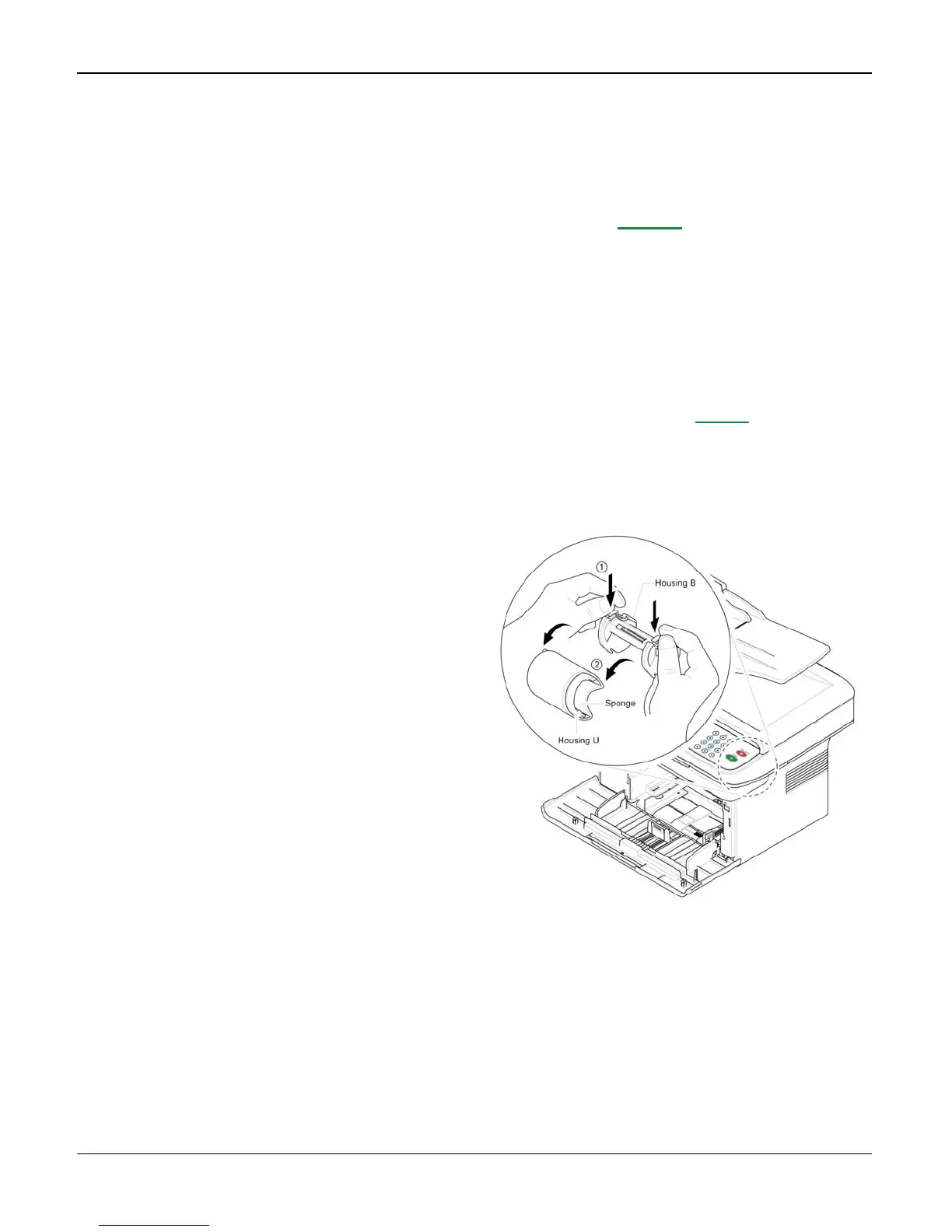

ing B, Figure 1.
Figure 1
Replacement
Replacement is the reverse of the removal
procedure.
