Xerox Phaser 3200MFP Service Manual

Repairs/Adjustments
Phaser 3200MFP / Workcentre PE220 04/07 4-7

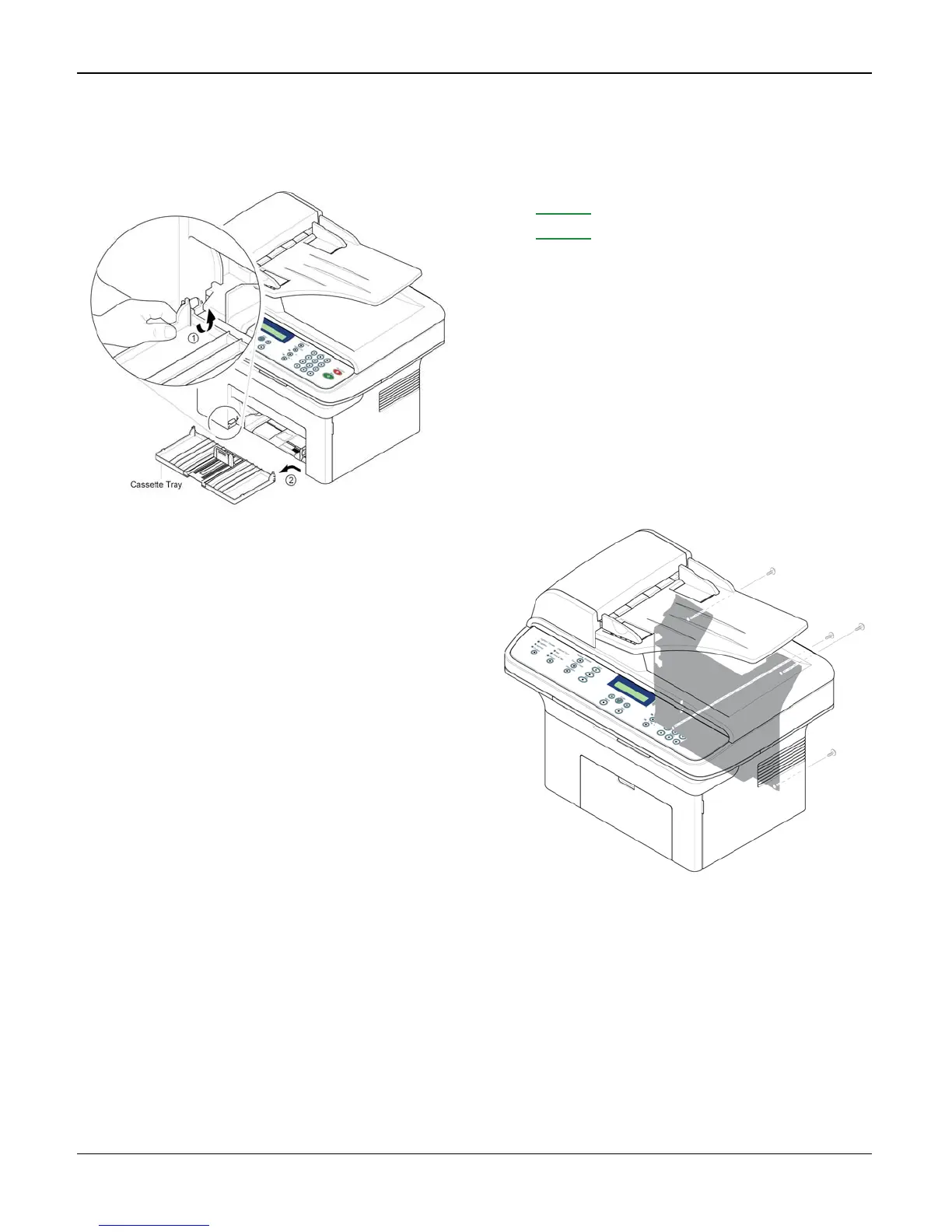

2. To remove the cassette tray, carefully lift
the knob in the direction of the arrow while
holding the machine, Figure 2.
Figure 2
Replacement
Replacement is the reverse of the removal
procedure.
REP 5 Rear Cover
Parts list on
- PL 1.0 (Workcentre PE220)
- PL 1.4 (Phaser 3200)
Note: The illustrations show the Workcentre
PE220 but the procedure is identical for the
Workcentre PE220 and Phaser 3200.
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove 4 screws securing the rear cover,
Figure 1.
Figure 1
