Xerox Phaser 3200MFP Service Manual

Repairs/Adjustments
Phaser 3200MFP / Workcentre PE220 04/07 4-5
REP 2.1 Pick Up Roller
Phaser 3200
Parts list on PL 6.2
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the MP tray, REP 1.
2. To exchange the Pick Up Sponge, pull
apart the pickup stoppers.
3. Release the Pick Up Sponge in the direc-
tion of the arrow.

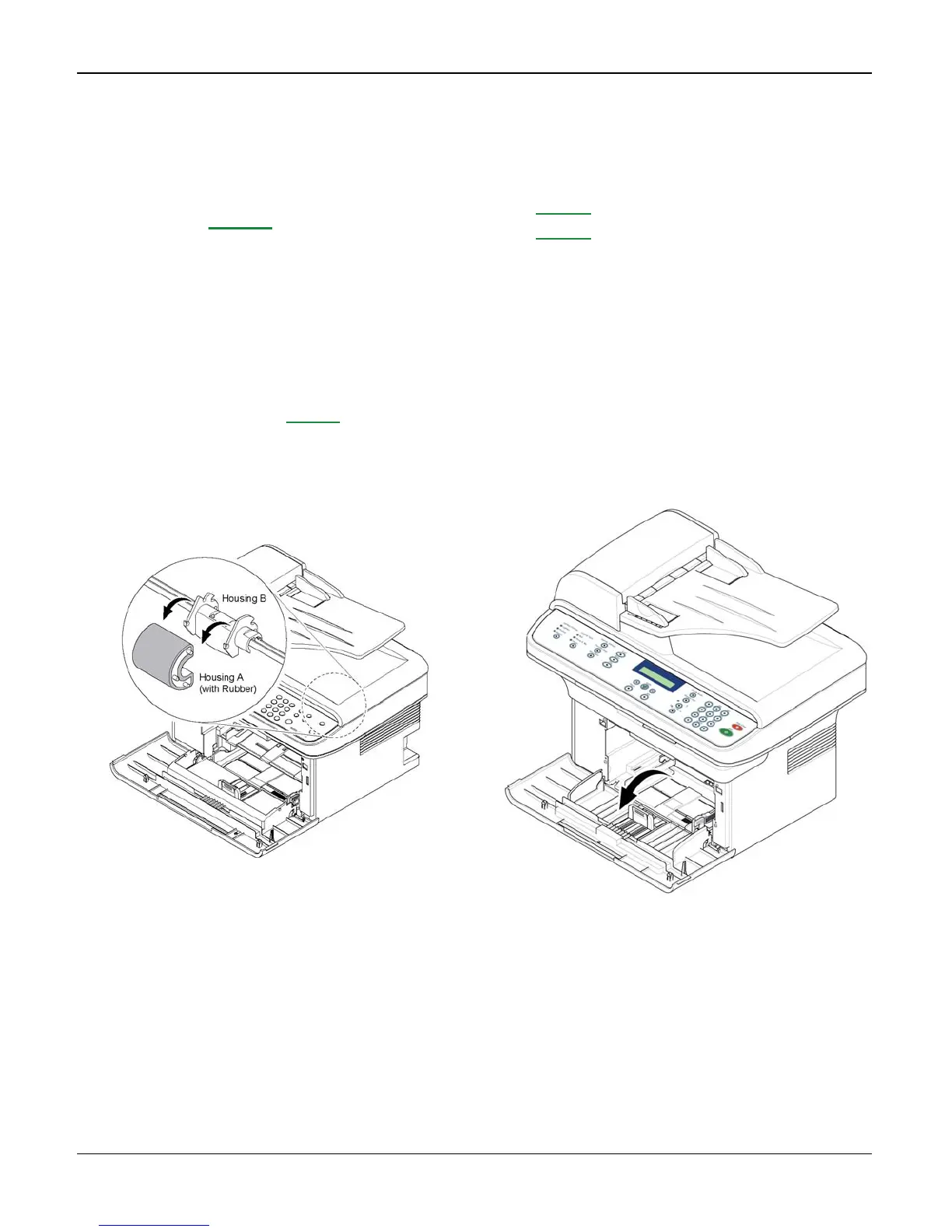

Figure 1
Replacement
Replacement is the reverse of the removal
procedure.
REP 3 Front Cover
Parts list on:
- PL 1.0 (Workcentre PE220)
- PL 1.3 (Phaser 3200)
Note: The illustrations show the Workcentre
PE220 but the procedure is identical for the
Workcentre PE220 and Phaser 3200.
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Open the front cover, Figure 1.
Figure 1

Xerox Phaser 3200MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
First Page Out Time	Less than 10 seconds
Copy Resolution	Up to 600 x 600 dpi
Maximum Copy Count	99 copies
Fax Transmission Speed	33.6 kbps
Standard Paper Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Operating System Compatibility	Windows, Mac OS
Duplex Printing	Manual
Scan Type	Flatbed
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Media Weight	60 to 163 g/m²
Monthly Duty Cycle	10, 000 pages
Toner Yield	Up to 3, 000 pages
