Repairs/Adjustments
4-12 04/07 Phaser 3200MFP / Workcentre PE220

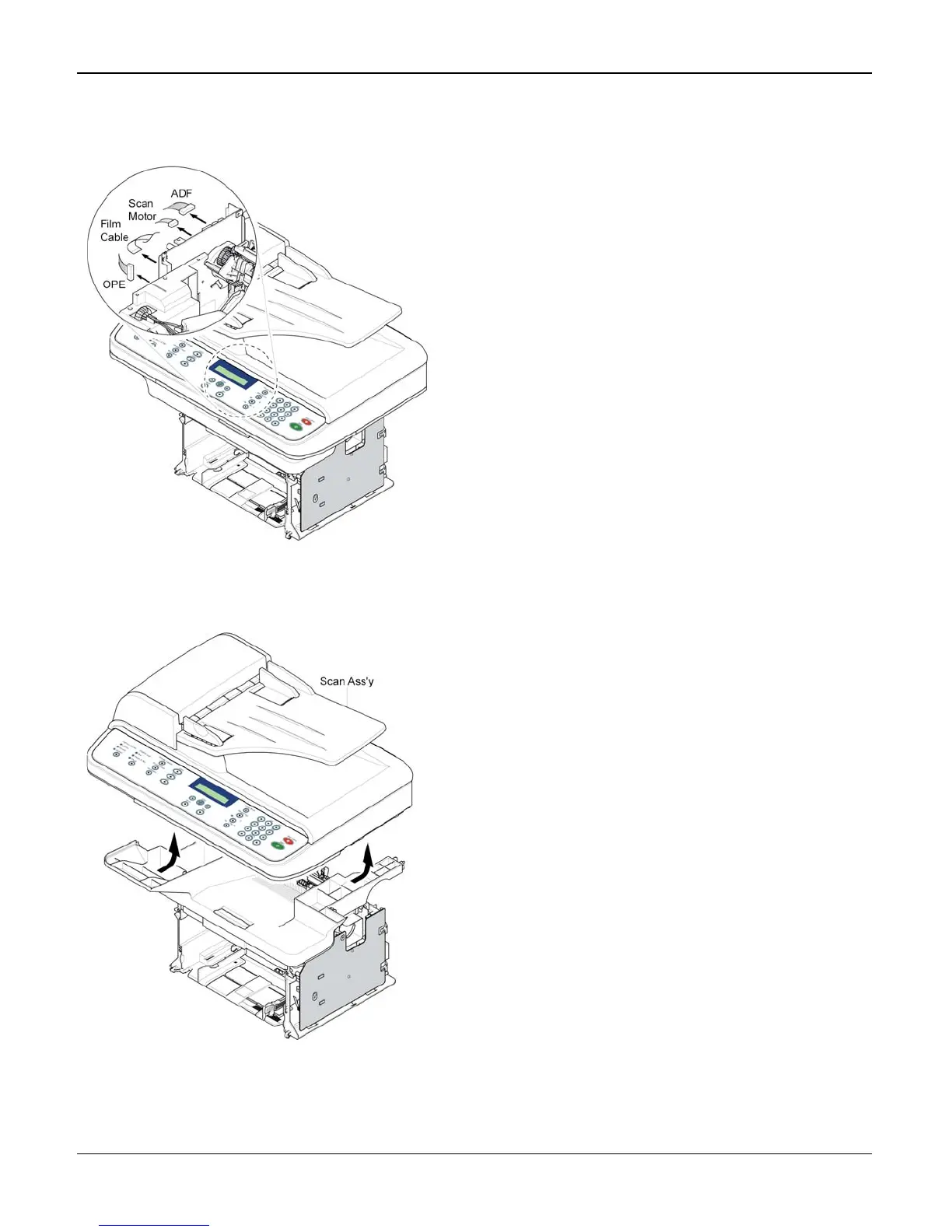

5. Unplug the 3 connectors (ADF, Scan
Motor, OPE) and CIS cable, Figure 2.
Figure 2
6. Release the scan assembly in the direc-
tion of the arrow, Figure 3.
Figure 3
Replacement
Replacement is the reverse of the removal
procedure.
