Xerox Phaser 3200MFP Service Manual

Repairs/Adjustments
4-22 04/07 Phaser 3200MFP / Workcentre PE220
REP 14.0 Main PBA
Workcentre PE220
Parts list on PL 1.0
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the scan assembly, REP 8.
2. Remove the middle cover, REP 12.

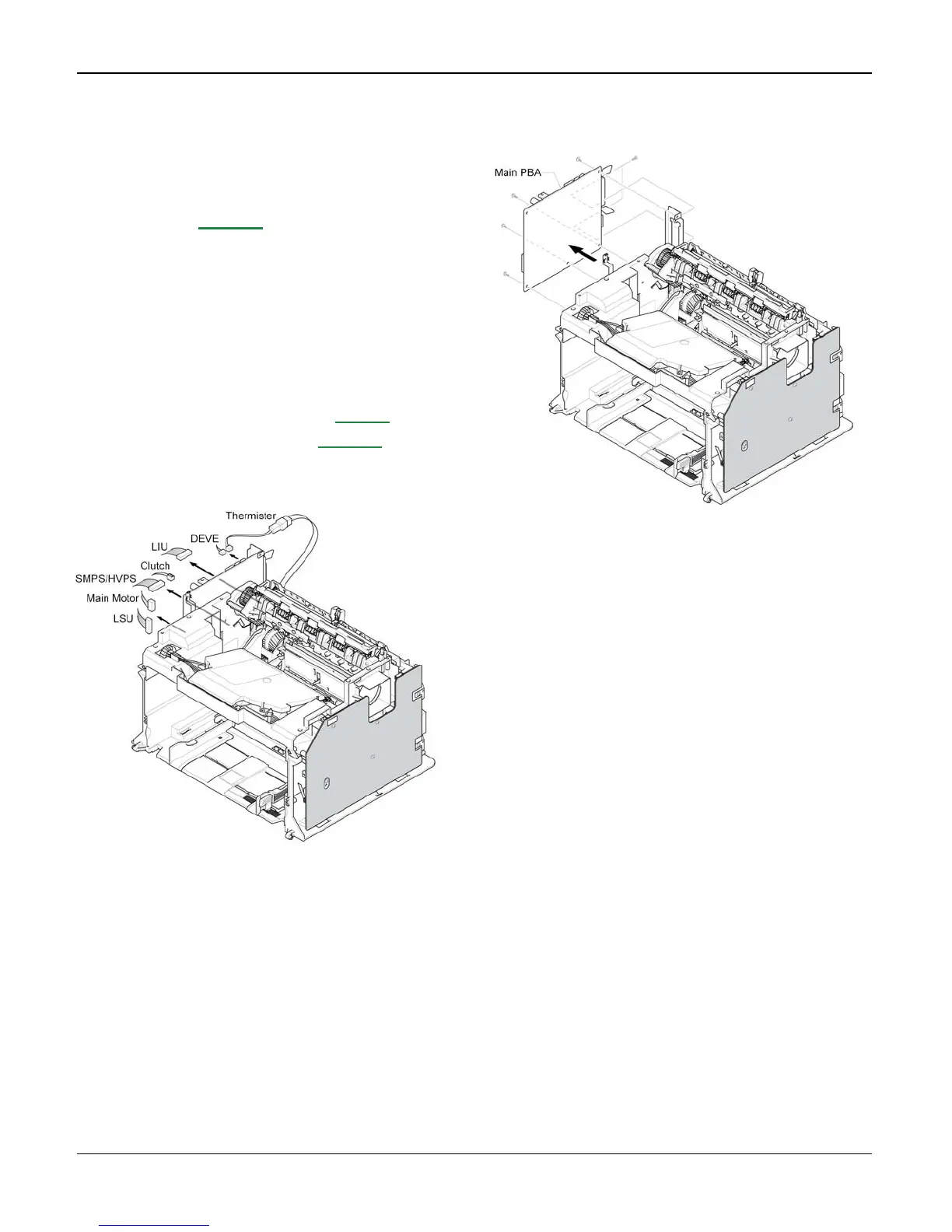

3. Unplug the all connectors from the main
PBA, Figure 1.
Figure 1
4. Remove 6 screws securing the main PBA
and remove it, Figure 2.
Figure 2
Replacement
Replacement is the reverse of the removal
procedure.
