Xerox Phaser 3200MFP Service Manual

Repairs/Adjustments
4-24 04/07 Phaser 3200MFP / Workcentre PE220
REP 15.0 Main Drive Assembly
Workcentre PE220
Parts list on PL 8.0
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the scan assembly, REP 8.
2. Remove the middle cover, REP 12.
3. Remove the main PBA, REP 14.0.
4. If necessary, remove bracket port, bracket
main PBA and ground, Figure 1.

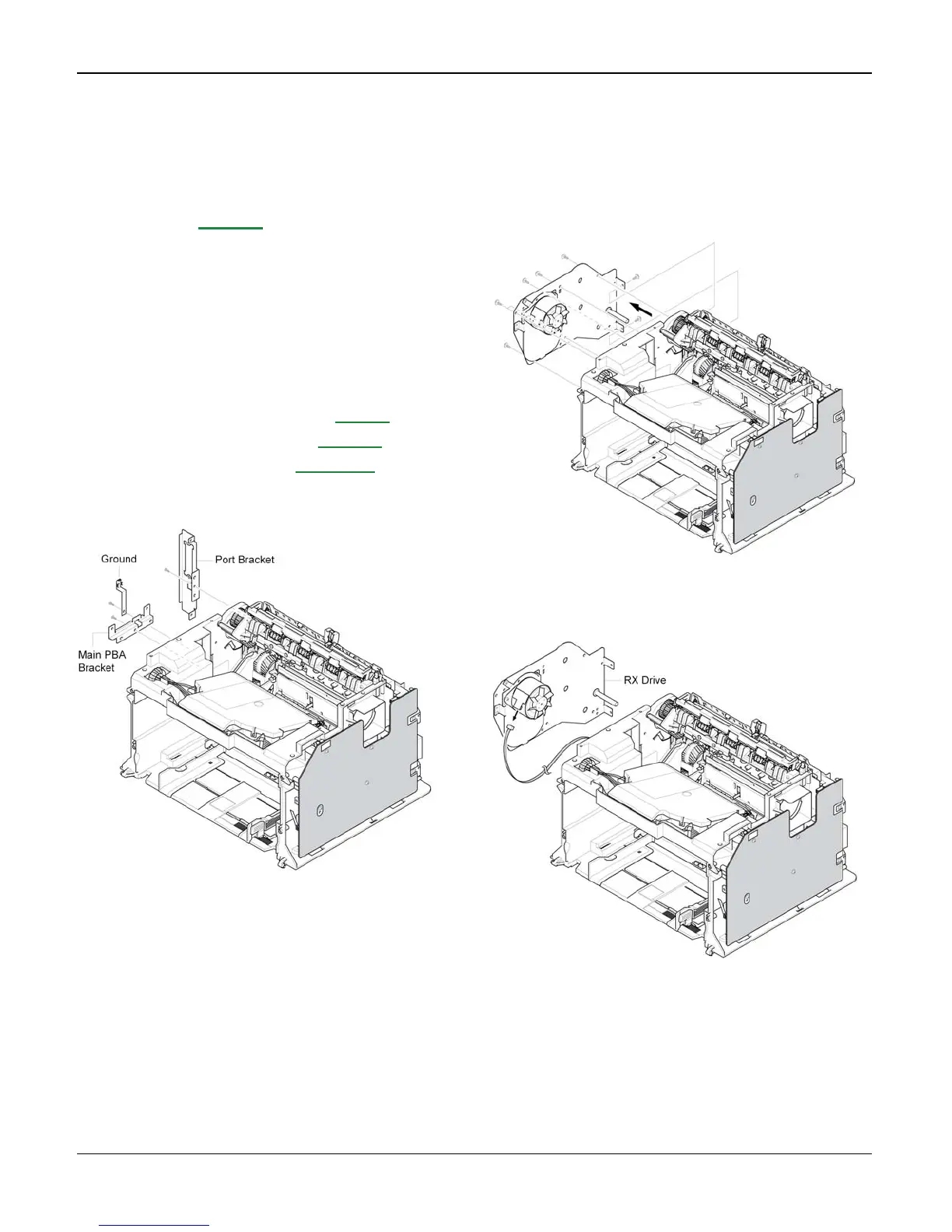

Figure 1
5. Remove 2 screws securing the engine
shield and remove six screws securing
the frame, then remove the main drive
assembly in the direction of the arrow,
Figure 2.
Figure 2
6. Remove the connector, Figure 3.
Figure 3
