Xerox Phaser 3200MFP Service Manual

Repairs/Adjustments
4-14 04/07 Phaser 3200MFP / Workcentre PE220

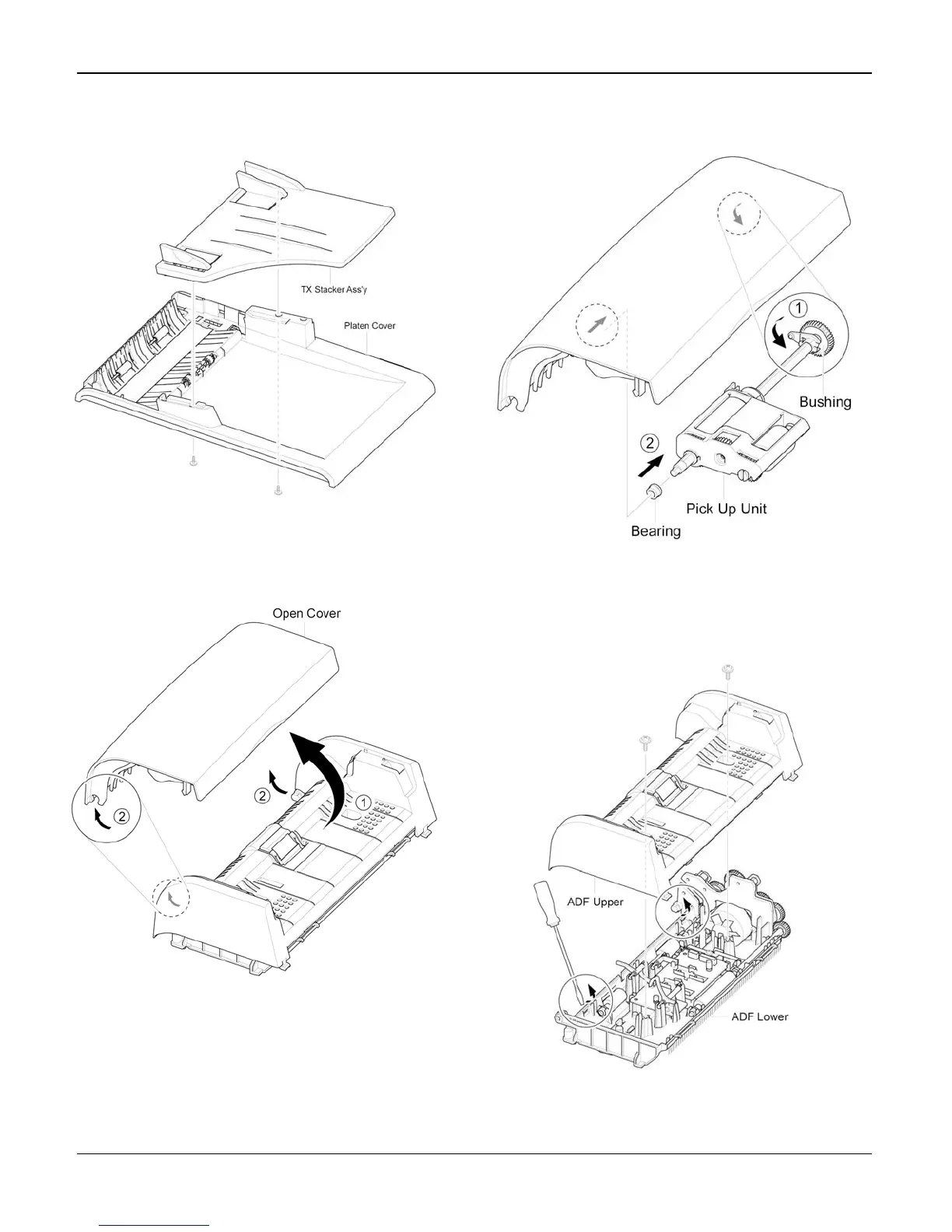

5. If necessary, remove 2 screws securing
the TX stacker assembly, Figure 4.
Figure 4
6. Open the open cover and remove the
open cover in the direction of the arrow,
Figure 5.
Figure 5
7. Pull and rotate the bushing until it reaches
the slot, then lift the pick up unit, Figure 6.
Figure 6
8. Remove 2 screws securing the ADF
upper and insert a flat-blade screwdriver
in to the slot and remove the ADF upper,
Figure 7.
Figure 7

Xerox Phaser 3200MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
First Page Out Time	Less than 10 seconds
Copy Resolution	Up to 600 x 600 dpi
Maximum Copy Count	99 copies
Fax Transmission Speed	33.6 kbps
Standard Paper Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Operating System Compatibility	Windows, Mac OS
Duplex Printing	Manual
Scan Type	Flatbed
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Media Weight	60 to 163 g/m²
Monthly Duty Cycle	10, 000 pages
Toner Yield	Up to 3, 000 pages
