Xerox WorkCentre 5024

Maintenance
Xerox
®
WorkCentre
®
5022/5024 Multifunction Printer
User Guide
12-8

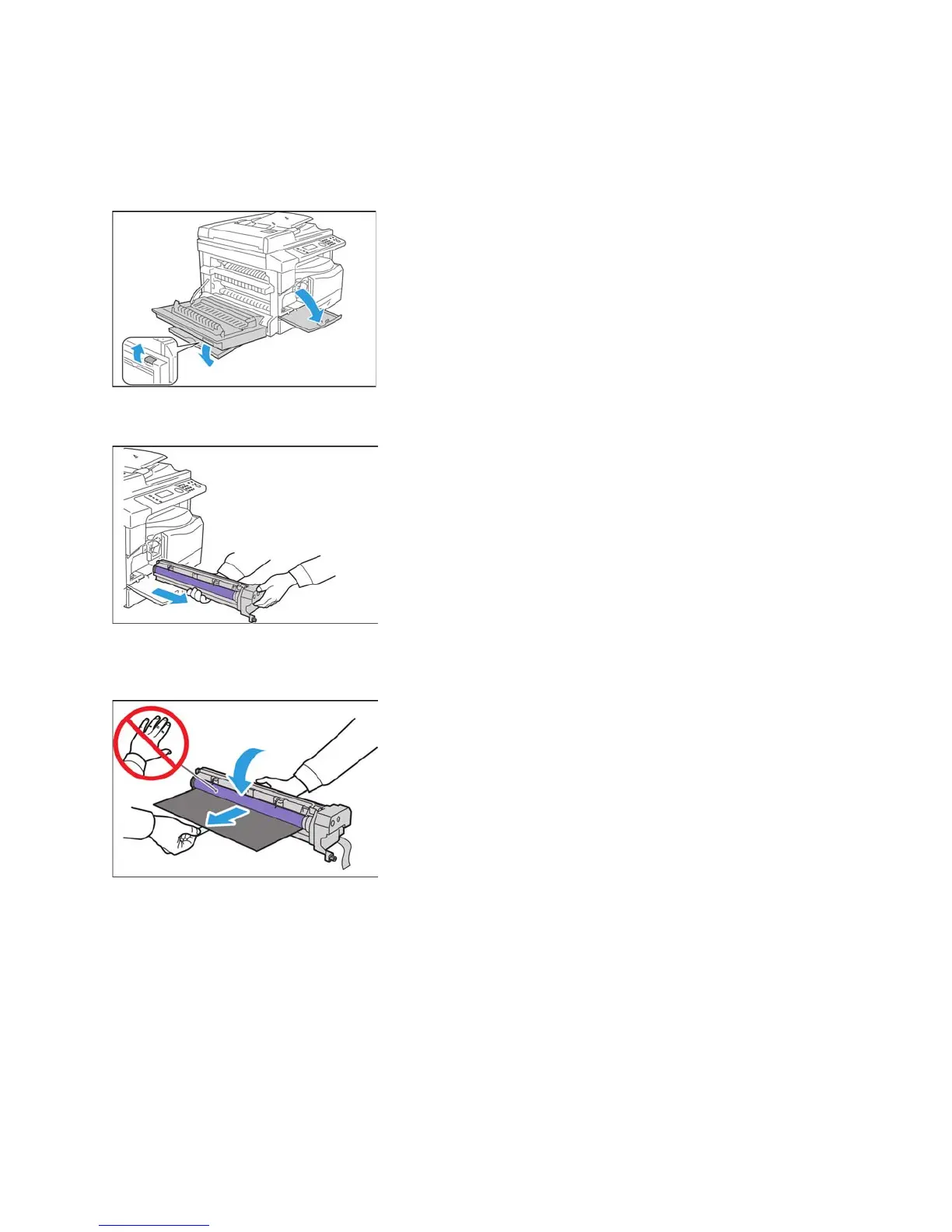

Follow the steps below to replace the drum cartridge.
1. Turn off the machine power. Refer to Power Source on page 3-7.
2. Open the left cover and the front cover.
3. Unscrew the two mounting screws and remove the drum.
4. Remove the protective cover from the new drum.
CAUTION: .Take care to not touch the drum surface.
