12-9

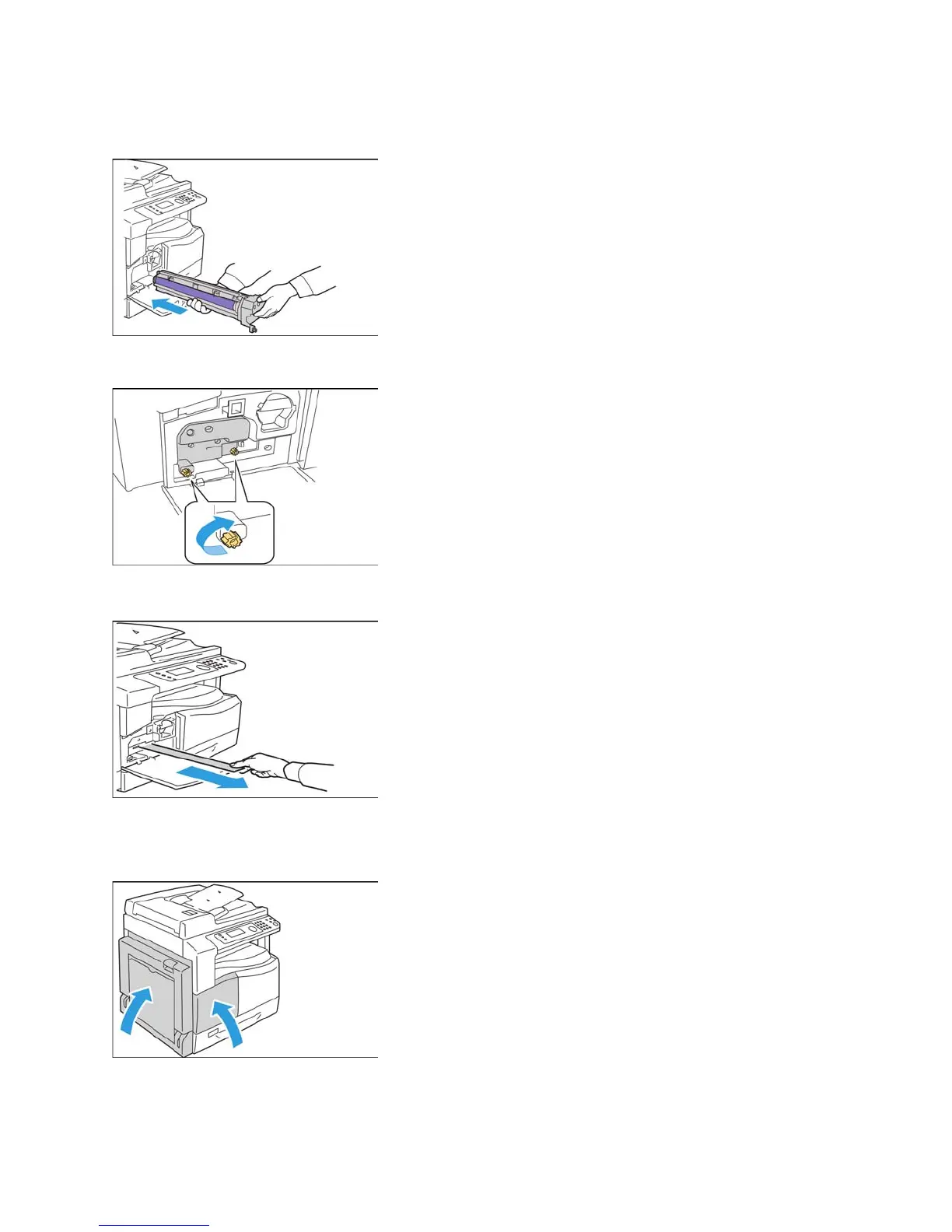

5. Install the new drum.
CAUTION: Align the guide on the bottom of the drum with receiver on the machine.
6. Tighten the two screws finger tight.
7. Remove the tape.
8. Close the left cover and the front cover.
Note If the front cover is not completely closed, an error code will appear.
