CDI unit with microcomputer

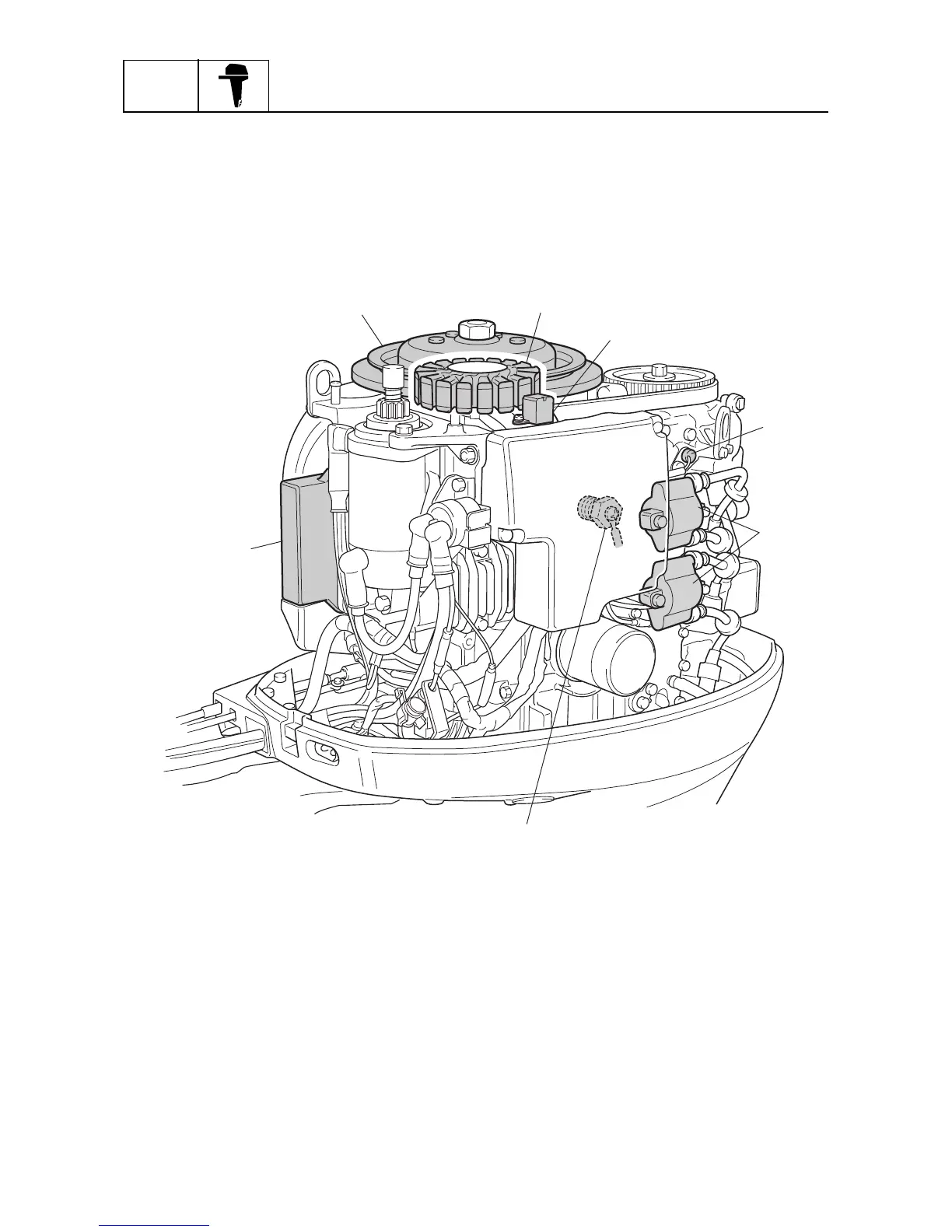

The ignition system consists of a flywheel, stator, pulser coil, thermoswitch, oil pressure switch, CDI
unit, and ignition coil. The CDI unit contains a built-in microcomputer that determines the ignition
timing separately for acceleration and for normal operation, based on signals received from the
pulser coil, thermoswitch, and oil pressure switch.
.
1
CDI unit
2
Flywheel
3
Stator
4
Pulser coil
5
Thermoswitch
6
Ignition coil
7
Oil pressure switch
2
3
4
5
6
7
1
S62Y1210
