Yamaha F50A - Adjusting the Trim Sensor

62Y3A11
7-46
1
2
3
4
5
6
7
8
I
4. Inject grease into both grease nipples
until grease comes out from the bushings
a
.

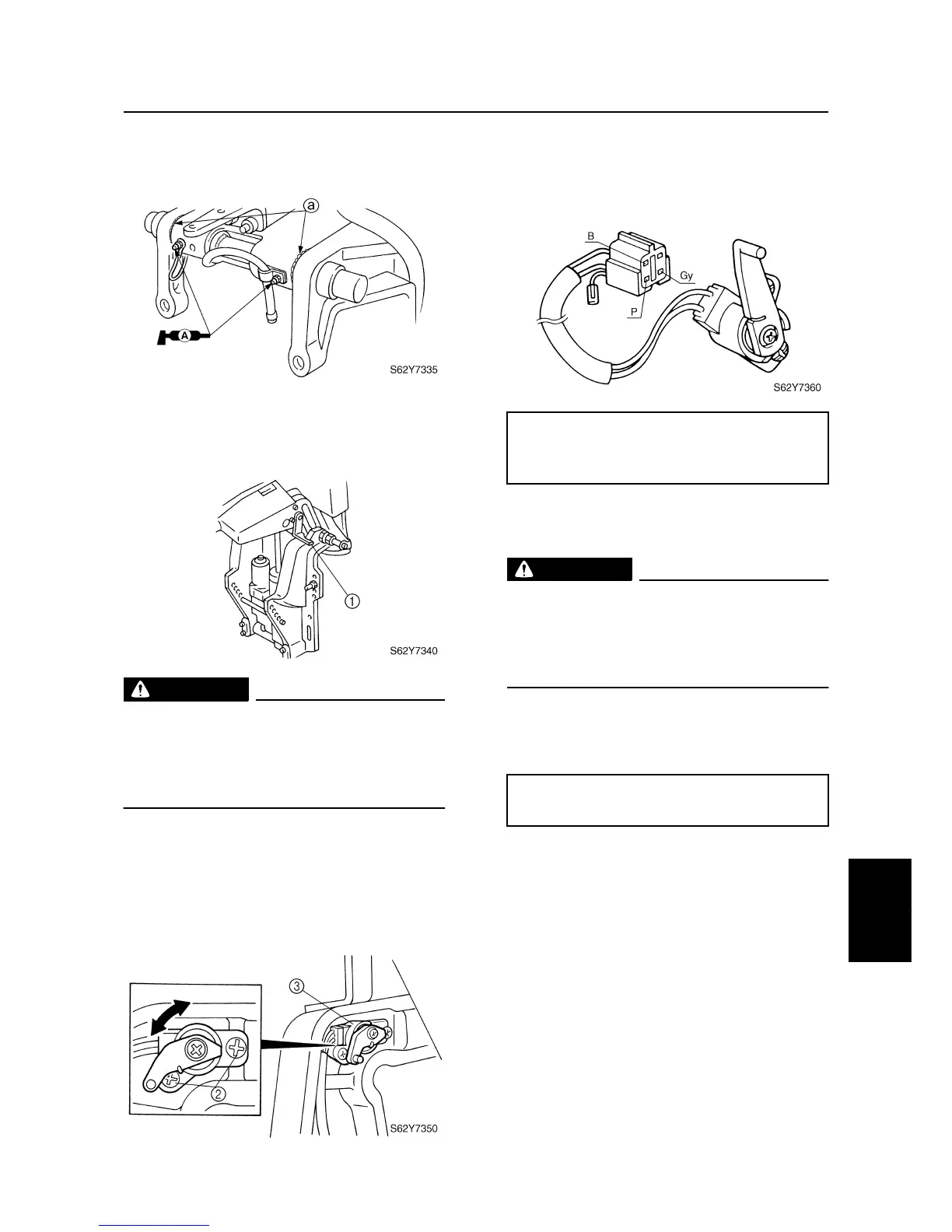

Adjusting the trim sensor
1. Fully tilt the outboard up, and then sup-
port it with the tilt stop lever
1
.
WARNING
After tilting up the outboard, be sure to
support it with the tilt stop lever.
Otherwise, the outboard could suddenly
lower if the power trim and tilt unit should
lose fluid pressure.
2. Loosen the cam screws
2
.
3. Adjust the position of the trim sensor
3
,
and then tighten the screws
2
finger
tight.
4. Fully tilt the outboard down.
5. Measure the trim sensor resistance.
Repeat steps 1–5 if out of specification.
6. Fully tilt the outboard up, and then sup-
port it with the tilt stop lever.
WARNING
After tilting up the outboard, be sure to
support it with the tilt stop lever.
Otherwise, the outboard could suddenly
lower if the power trim and tilt unit should
lose fluid pressure.
7. Tighten the cam screws
2
to the speci-
fied torque.
8. Fully tilt the outboard down.
Trim sensor setting resistance:
Pink (P) – Black (B)
9–11
Ω
at 20 °C (68 °F)
Trim sensor cam screw
2
:
2 N·m (0.2 kgf·m, 1.4 ft·lb)
Clamp brackets
