BRKT
Bracket unit
7-53
62Y3A11

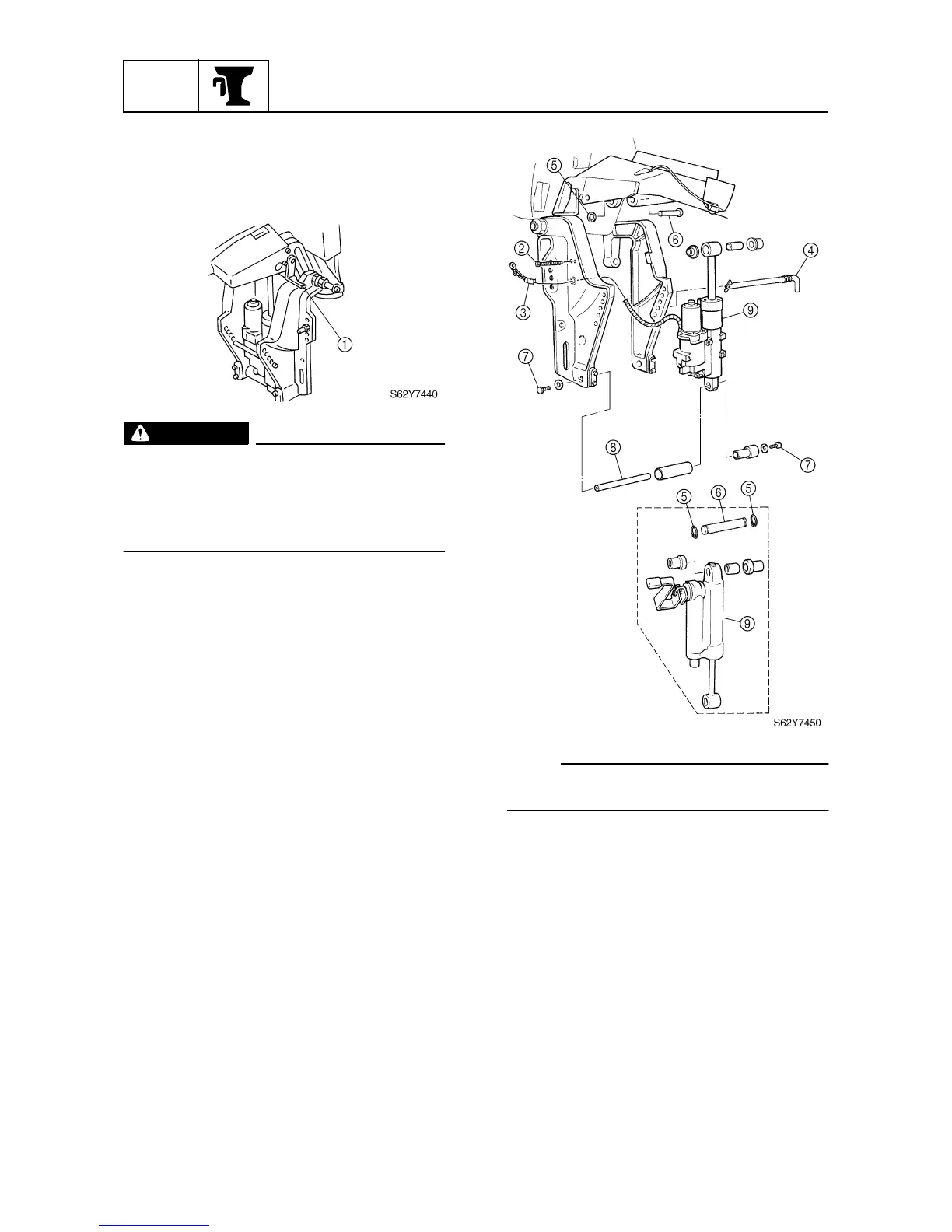

Removing the power trim and
tilt/hydro tilt
1. Fully tilt the outboard up, and then sup-
port it with the tilt stop lever
1
.
WARNING
After tilting up the outboard, be sure to
support it with the tilt stop lever.
Otherwise, the outboard could suddenly
lower if the power trim and tilt unit should
lose fluid pressure.
2. Loosen the plastic locking tie
2
, and
then pull out the PTT motor lead
3
.
3. Remove the tilt pin
4
.
4. Remove the circlip(s)
5
and the shaft
6
.
5. Loosen the bolt
7
, and then remove the
shaft
8
.
6. Remove the power trim and tilt/hydro tilt
9
.
NOTE:
To remove the power trim and tilt/hydro tilt,
lower the tilt rod slightly.
