Yamaha F50A - Ignition System and Ignition Control System

ELEC
Electrical systems
– +
8-11
62Y3A11

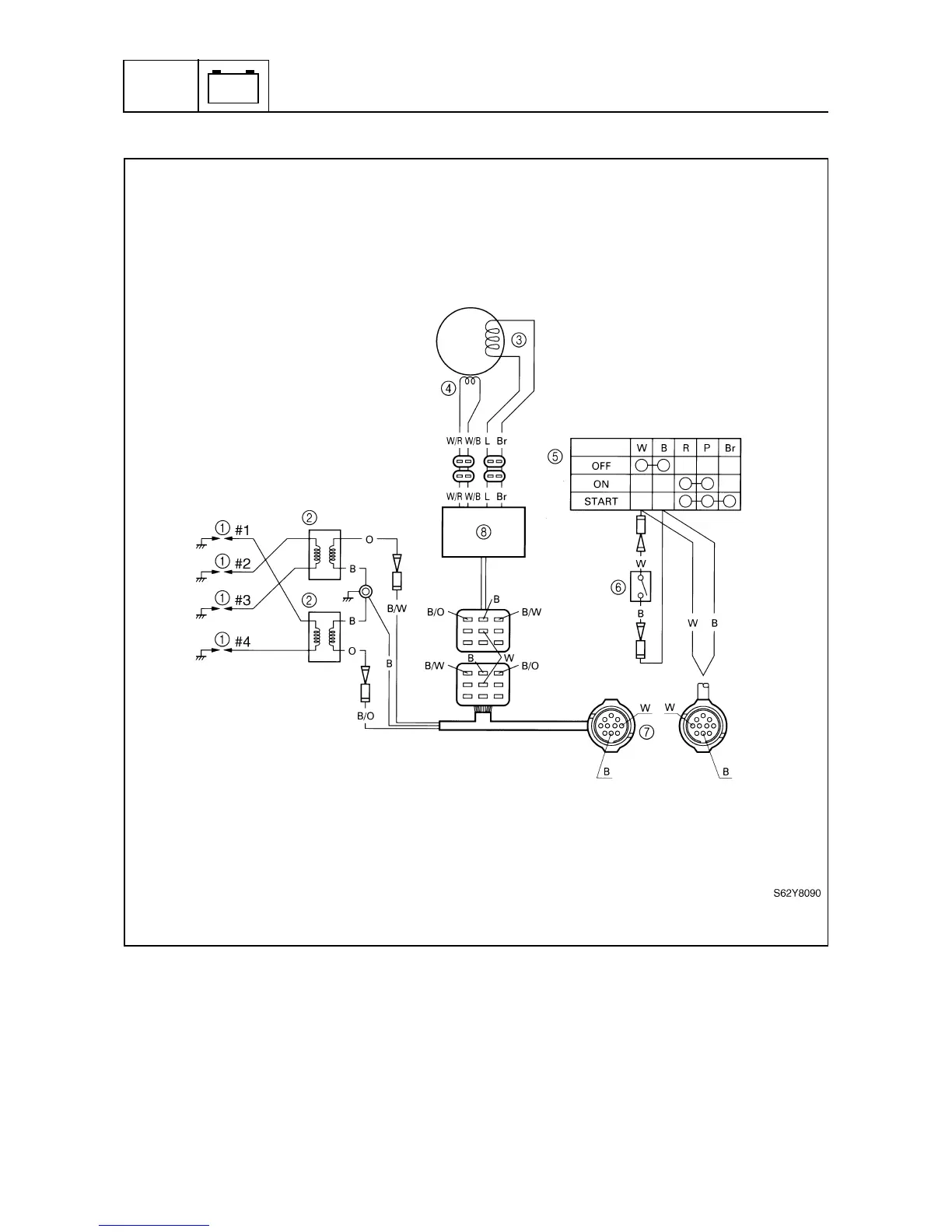

Ignition system and Ignition control system
8
1
Spark plug
2
Ignition coil
3
Charge coil
4
Pulser coil
5
Engine start switch
6
Engine shut-off switch
7
10-pin coupler
8
CDI unit
B: Black
Br : Brown
L: Blue
W: White
B/O : Black/orange
B/W : Black/white
W/B : White/black
W/R : White/red
