Yamaha F50A - Installing the Propeller Shaft Housing; Installing the Water Pump

62Y3A11
6-18
1
2
3
4
5
6
7
8
I

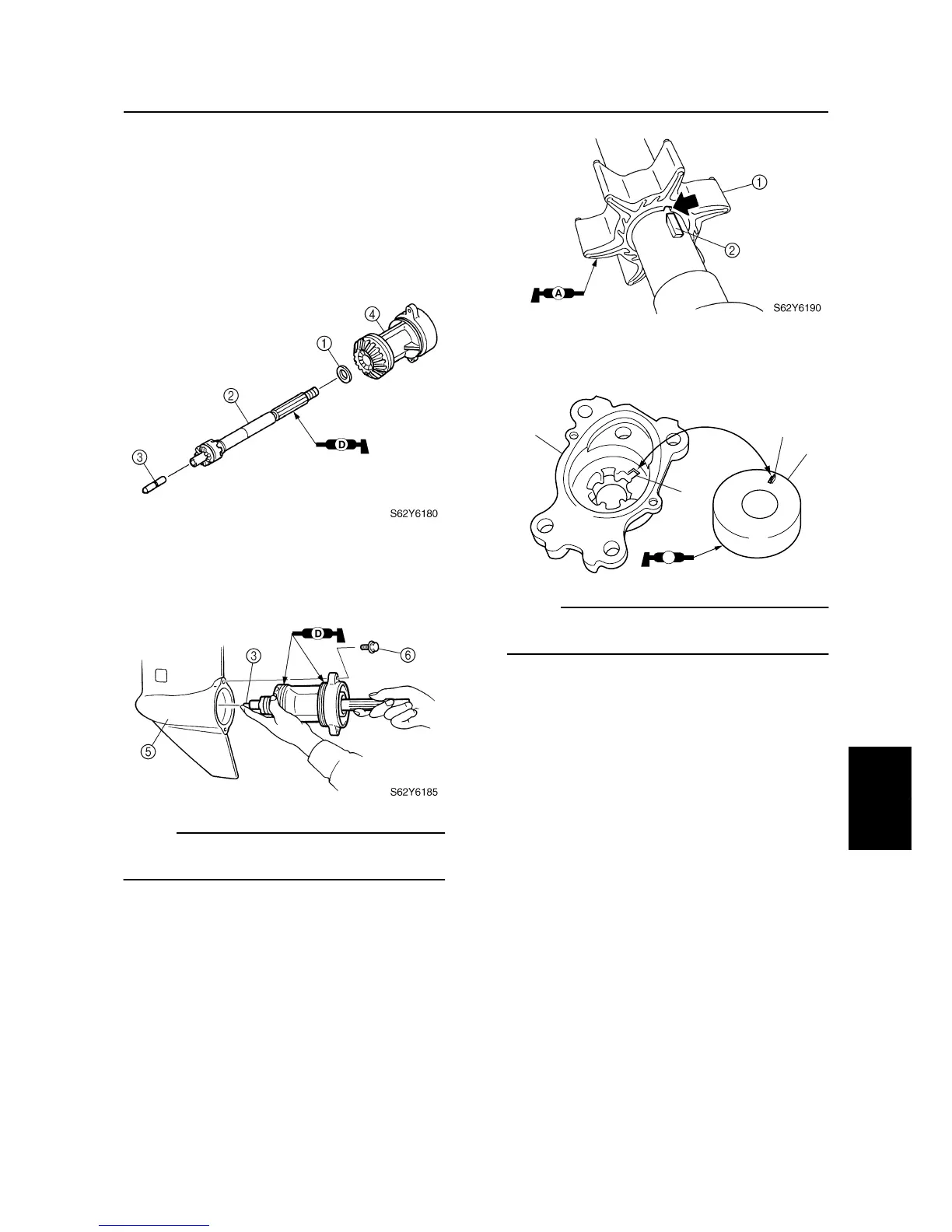

Installing the propeller shaft housing
1. Install the washer
1
, propeller shaft
assembly
2
, and shift plunger
3
, into
the propeller shaft housing assembly
4
.
2. Apply grease to the new O-rings.
3. Install the propeller shaft housing assem-
bly into the lower case
5
, and then
tighten the bolts
6
.
NOTE:
When installing the propeller shaft assembly,
be sure not to drop the shift plunger
3
.
Installing the water pump
1. Install the new gasket and outer plate
cartridge.
2. Install the Woodruff key into the drive
shaft.
3. Align the groove on the impeller
1
with
the Woodruff key
2
, and then install it to
the drive shaft.
4. Install the insert plate cartridge
3
into
the water pump housing
4
.
NOTE:
Align the projection
a
of the insert plate car-
tridge with the hole
b
in the pump housing.
S62Y6195
3
4
A
a
b
Water pump and propeller shaft housing (F50/F50A)
