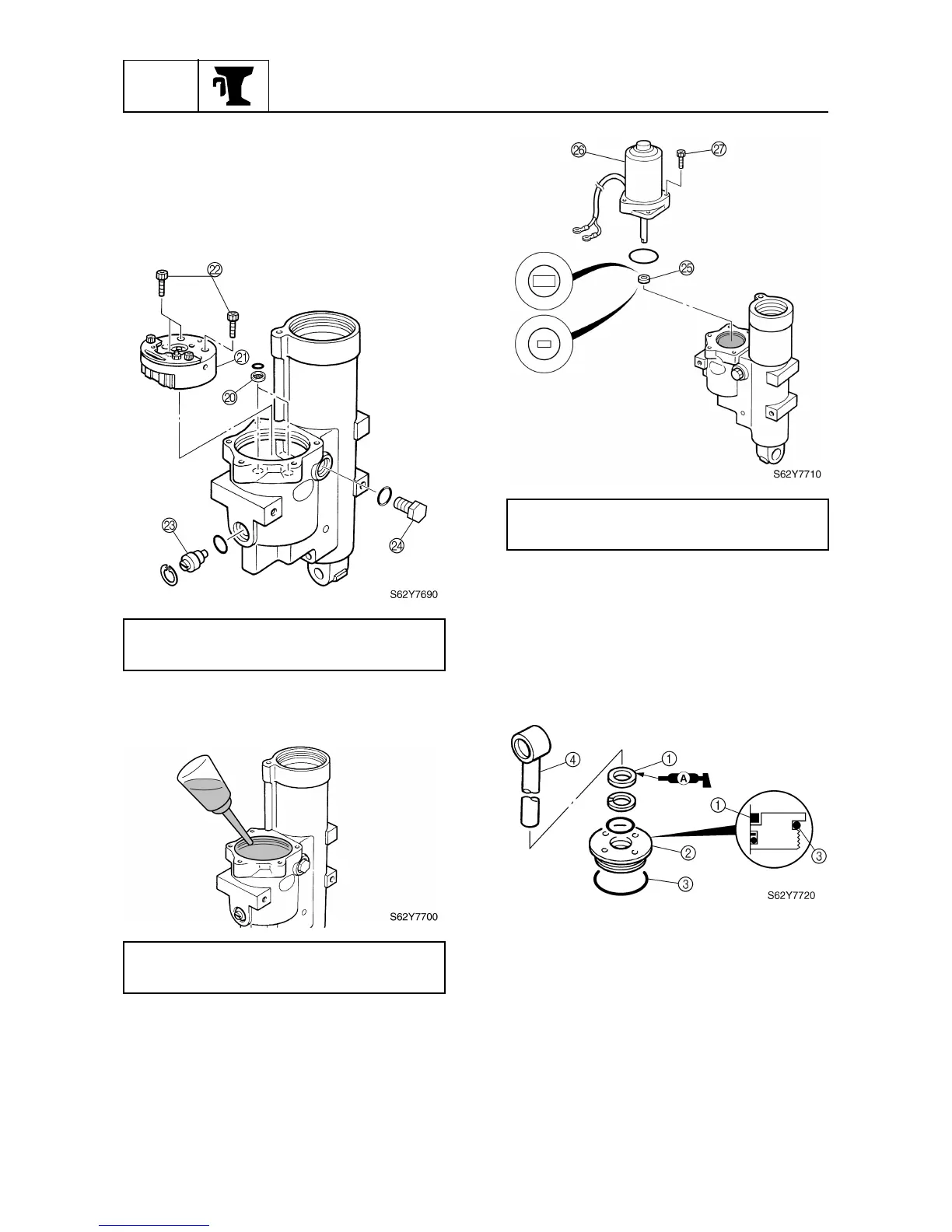

Yamaha F50A - Assembling the Trim Cylinder

BRKT
Bracket unit
7-67
62Y3A11
10. Install the filters
J
and gear pump
K
by
installing the bolts
L
, then tightening
them to the specified torque.
11. Install the manual release plug
M
and
reservoir cap
N
.
12. Fill the reservoir with the recommended
fluid to the correct level as shown.
13. Install the joint
O
and power trim and tilt
motor
P
by installing the bolts
Q
, then
tightening them to the specified torque.
Assembling the trim cylinder
1. Install the dust seal
1
into the tilt cylinder
end screw
2
.
2. Install the O-ring
3
to the end screw.
3. Install the tilt ram
4
into the end screw.
Gear pump bolt
L
:
6.5 N·m (0.65 kgf·m, 4.7 ft·lb)
Recommended power trim and tilt fluid:
ATF Dexron
II
PTT motor bolt
Q
:
4 N·m (0.4 kgf·m, 2.9 ft·lb)
