Yamaha F50A - Installing the Upper Case

BRKT
Bracket unit
7-41
62Y3A11

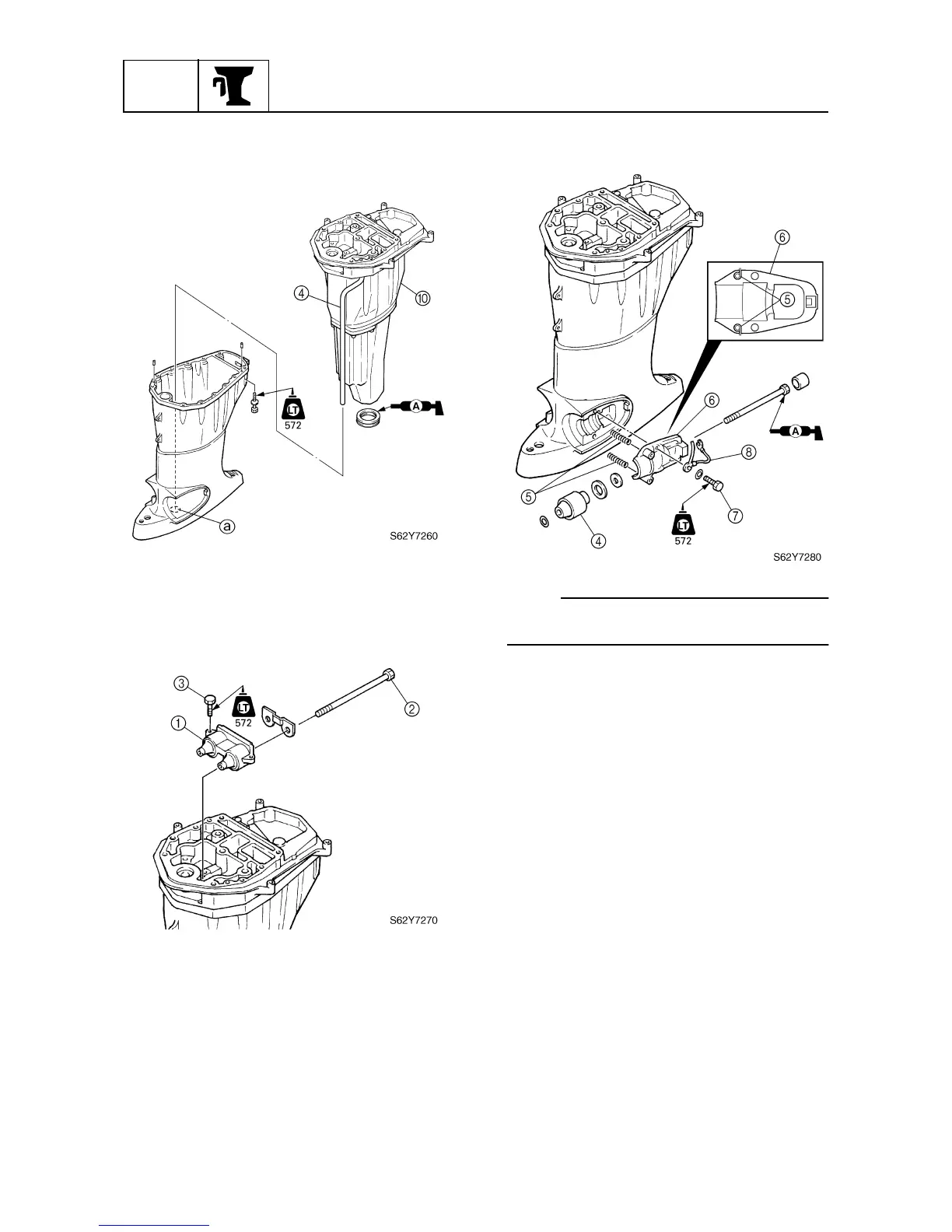

9. Install the muffler assembly
0
by insert-
ing the tip of the water pipe
4
into the
joint hole
a
of the upper case.
Installing the upper case
1. Install the upper mount
1
and bolts
2
into the upper case, and then tighten the
bolts
3
.
2. Set the lower mounts
4
and bolts to the
upper case.
3. Install the end of the spring
5
into the
groove of the mount housing
6
, and
then tighten the bolts
7
.
NOTE:
Be sure to install the ground lead
8
into the
mount housing
6
.
