Yamaha F50A - Checking the Power Trim and Tilt Switch;Trailer Switch; Checking the Trim Sensor

62Y3A11
7-80
1
2
3
4
5
6
7
8
I

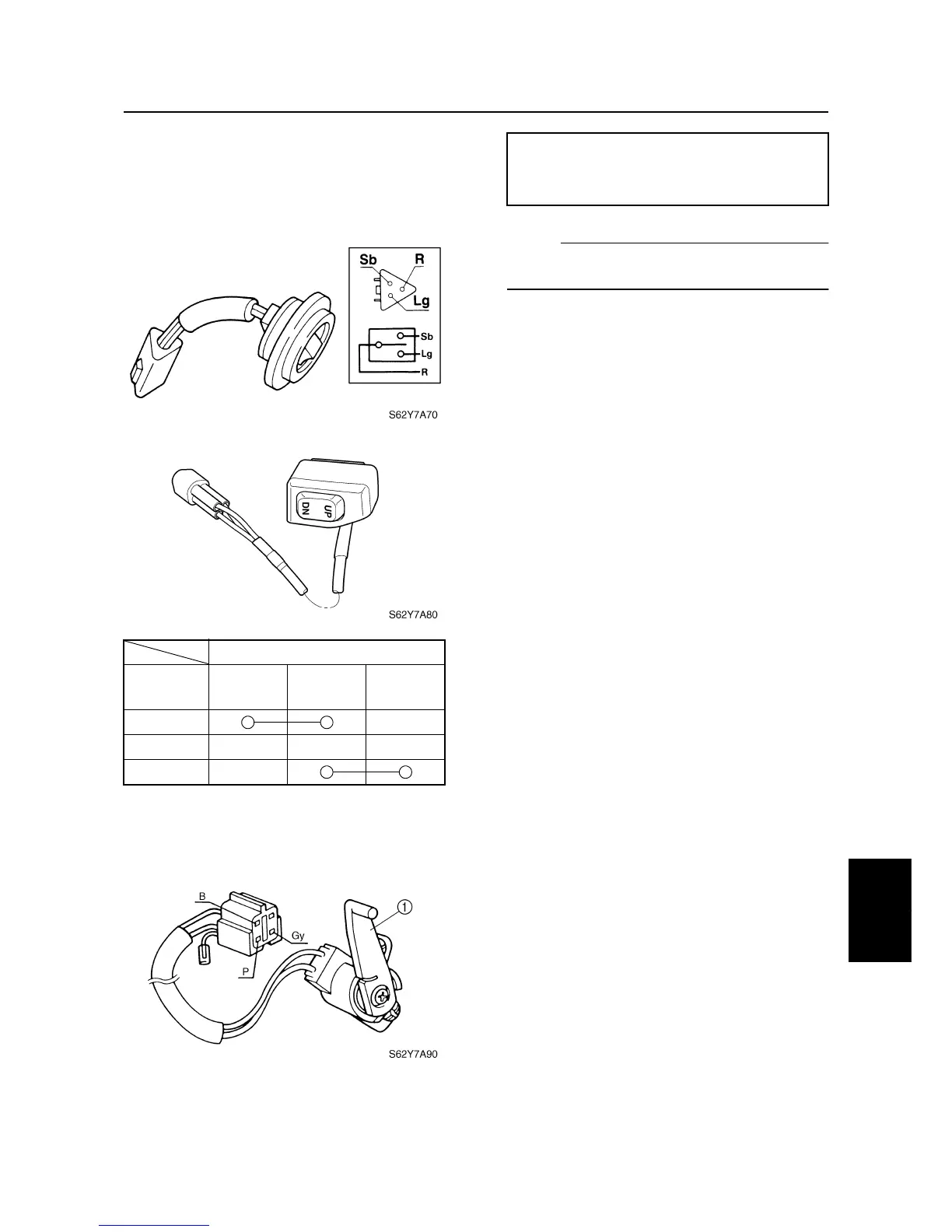

Checking the power trim and tilt
switch/trailer switch
1. Check the power trim and tilt
switch/trailer switch for continuity.
Replace if out of specification.
Checking the trim sensor
1. Measure the trim sensor resistance.
Replace if out of specification.
NOTE:
Turn the lever
1
and measure the resistance
as it gradually changes.
Lead color
Switch
position
Sky blue
(Sb)
Red (R)
Light green
(Lg)
Up
Free
Down
Trim sensor resistance:
Pink (P) – Black (B)
10–288.3
Ω
at 20 °C (68 °F)
Power trim and tilt electrical system
