Yamaha F50A - Assembling the Drive Shaft; Installing the Drive Shaft; Installing the Lower Unit

62Y3A11
6-66
1
2
3
4
5
6
7
8
I

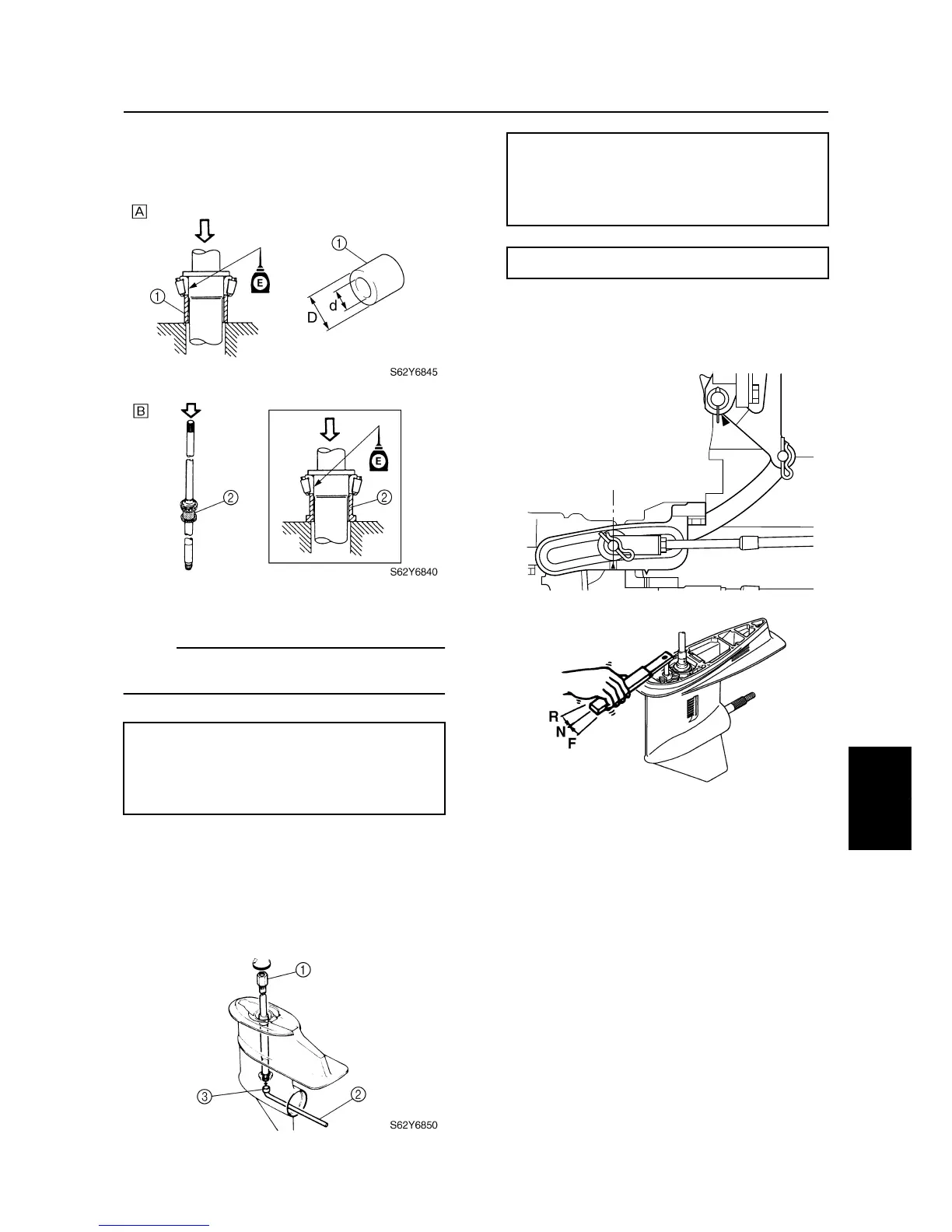

Assembling the drive shaft
1. Install the new drive shaft bearing into
the drive shaft using a press.
È
For USA and Canada
É
For worldwide
NOTE:
Use the special service tool or a general pipe
with the specified measurements.
Installing the drive shaft
1. Install the forward gear, then the drive
shaft assembly, pinion, and pinion nut,
and then tighten the nut to the specified
torque.
Installing the lower unit
1. Set the gearshift to the neutral position at
power unit and lower unit.
General pipe
1
:
D = 38 mm (1.49 in), d = 32 mm (1.26 in)
Bearing inner race attachment
2
:
90890-06643
Drive shaft holder
1
: YB-06049
Drive shaft holder 4
1
: 490890-06518
Pinion nut holder
2
: 90890-06505
Socket adapter 2
3
: 90890-06507
Pinion nut: 95 N·m (9.5 kgf·m, 68 ft·lb)
S62Y6505
N
Drive shaft and lower case (T50/FT50B, FT50C)
