POWR
Power unit
5-49
62Y3A11

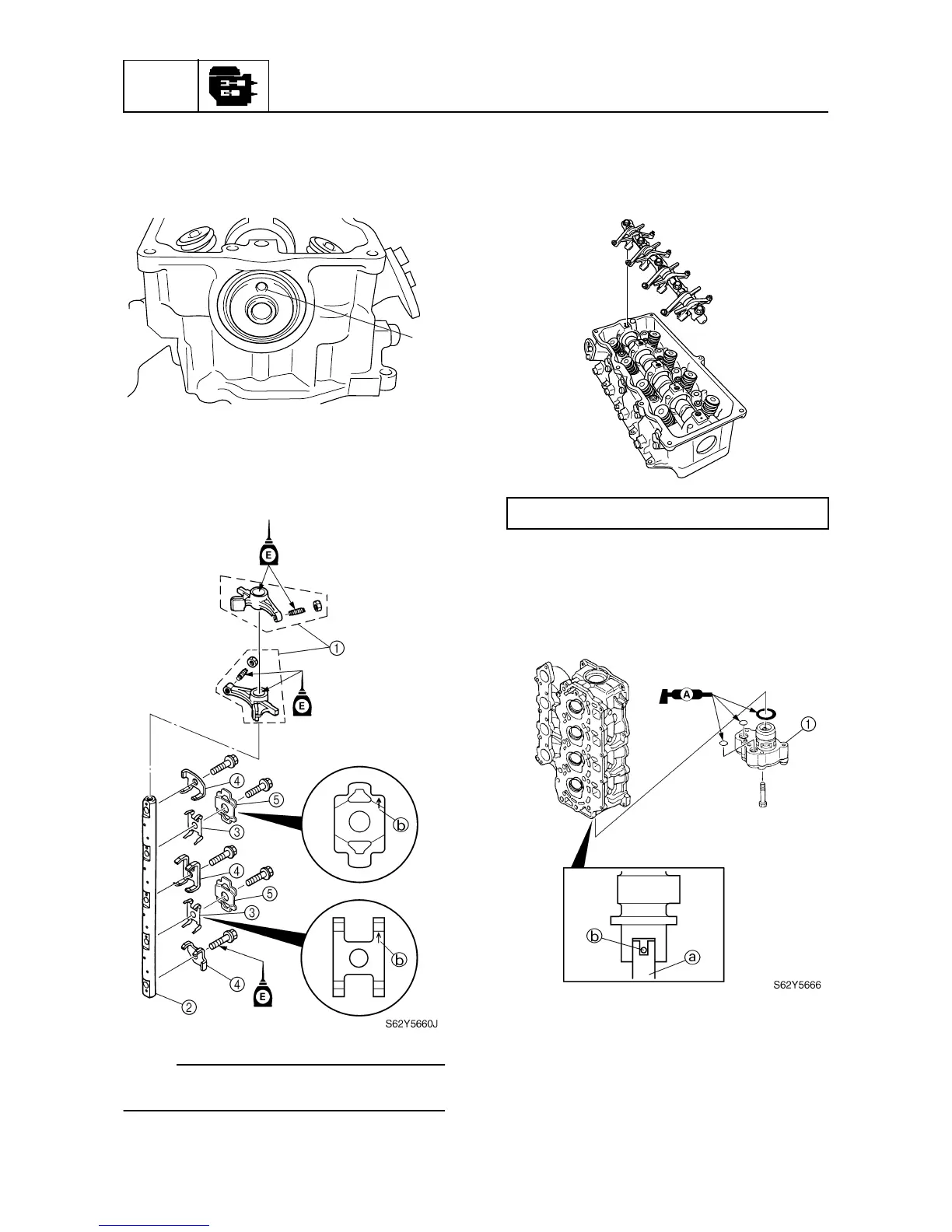

Installing the rocker arm assembly
1. Check that the camshaft dowel pin hole
a
is in the position shown in the illustra-
tion. Adjust if necessary.
2. Assembly the rocker arm
1
and rocker
arm shaft
2
, and the tensioner
3
, rocker
arm retainer
4
, stopper guide
5
by
installing the bolts.
NOTE:
Make sure that the arrow marks
b
on the two
tensioners and stopper guides are facing up.
3. Install the rocker arm shaft assembly to
the cylinder head by installing the bolts,
and then tighten them to the specified
torque.
Installing the cylinder head
1. Install the oil pump
1
by aligning the oil
pump drive shaft
a
with the camshaft pin
b
.
S62Y5650
a
Bolt: 18 N·m (1.8 kgf·m, 13 ft·lb)
S62Y5665R
To Next Page
