Yamaha F50A - Assembling the Forward Gear; Assembling the Drive Shaft

LOWR
Lower unit
6-27
62Y3A11
4. Install the forward gear original shim(s)
and taper roller bearing outer race.
CAUTION:
Add or remove shims, if necessary, when
replacing the forward gear or lower case.

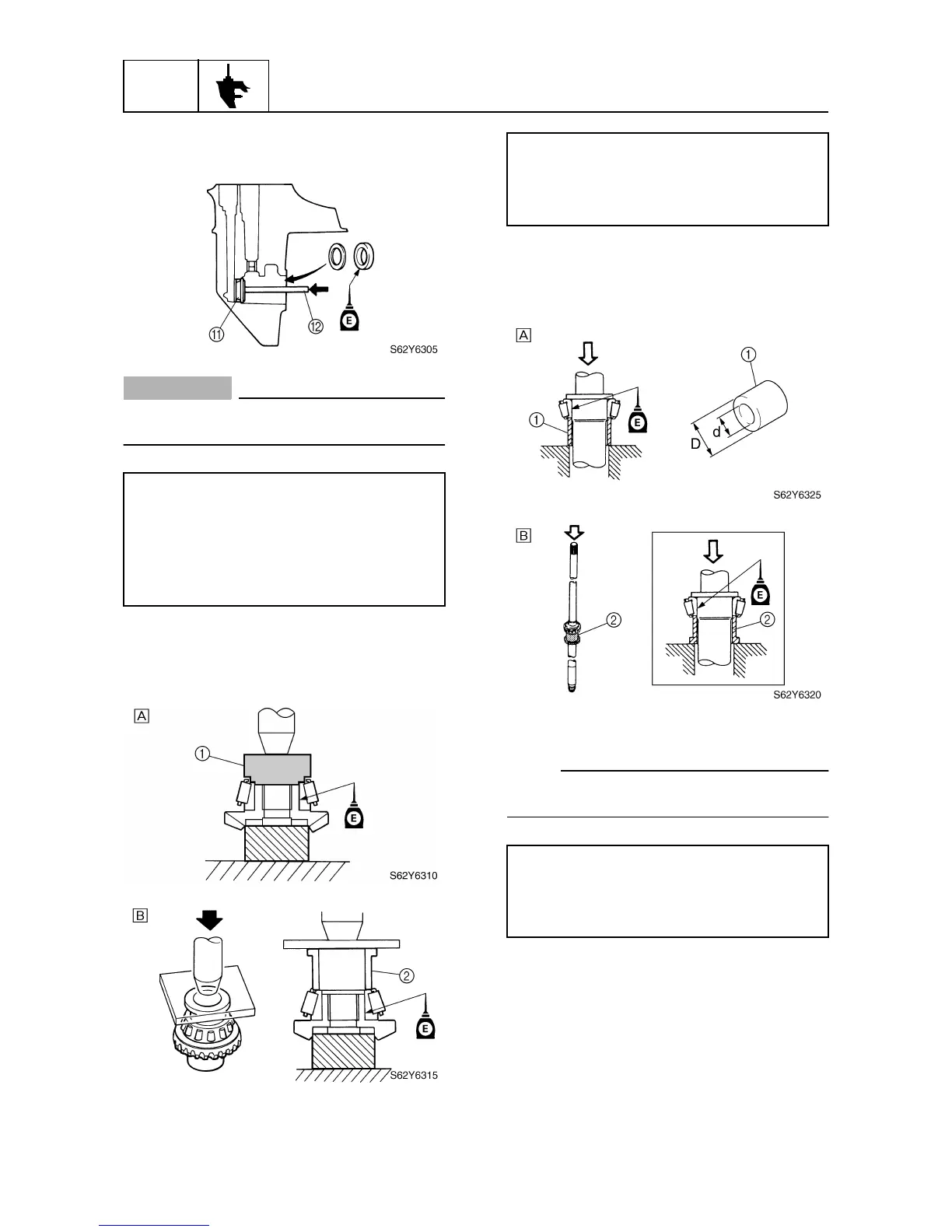

Assembling the forward gear
1. Install the new taper roller bearing into
the forward gear using a press.
È
For USA and Canada
É
For worldwide
Assembling the drive shaft
1. Install the new drive shaft bearing into
the drive shaft using a press.
È
For USA and Canada
É
For worldwide
NOTE:
Use a special service tool or a general pipe
with the specified measurements.
Forward gear bearing cup installer
A
:
YB-06109
Bearing outer race attachment
A
:
90890-06622
Driver handle
B
: YB-06071
Driver rod LL
B
: 90890-06605
Drive shaft taper roller bearing cup installer
1
: YB-06110
Bearing inner race attachment
2
:
90890-06639
General pipe
1
:
D = 38 mm (1.49 in), d = 32 mm (1.26 in)
Bearing inner race attachment
2
:
90890-06644
