Yamaha F50A - Tiller Handle Model (F50;F50 A, T50;FT50 B)

62Y3A11
8-8
1
2
3
4
5
6
7
8
I

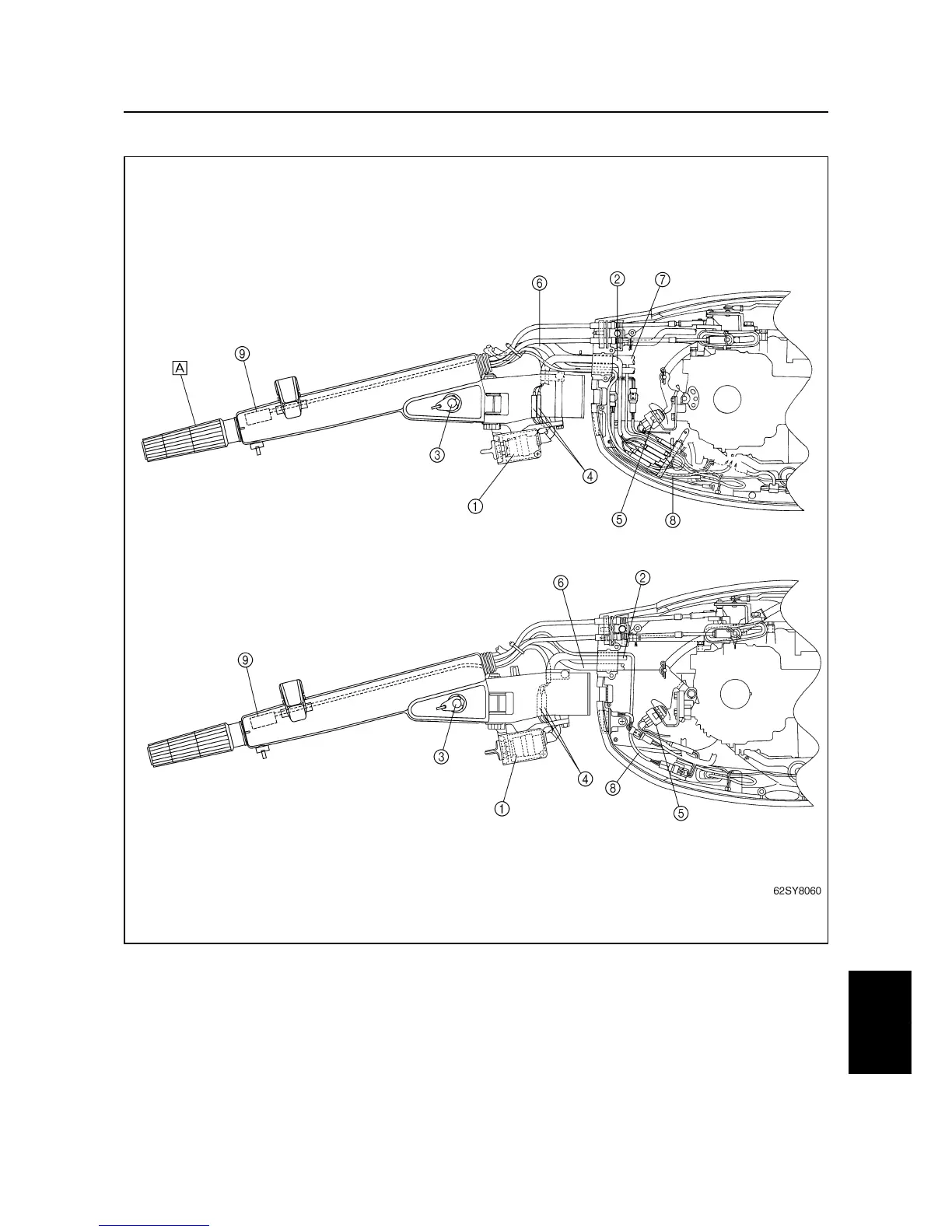

Tiller handle model (F50/F50A, T50/FT50B)
1
Engine start switch
2
Engine start switch harness
3
Engine shut-off switch
4
Engine shut-off switch connector
5
Neutral switch
6
Battery lead
7
Wiring harness extension
8
PTT switch lead
9
Power trim and tilt switch
È
Applicable for tachometer, trim meter or
warning buzzer model
Electrical components
