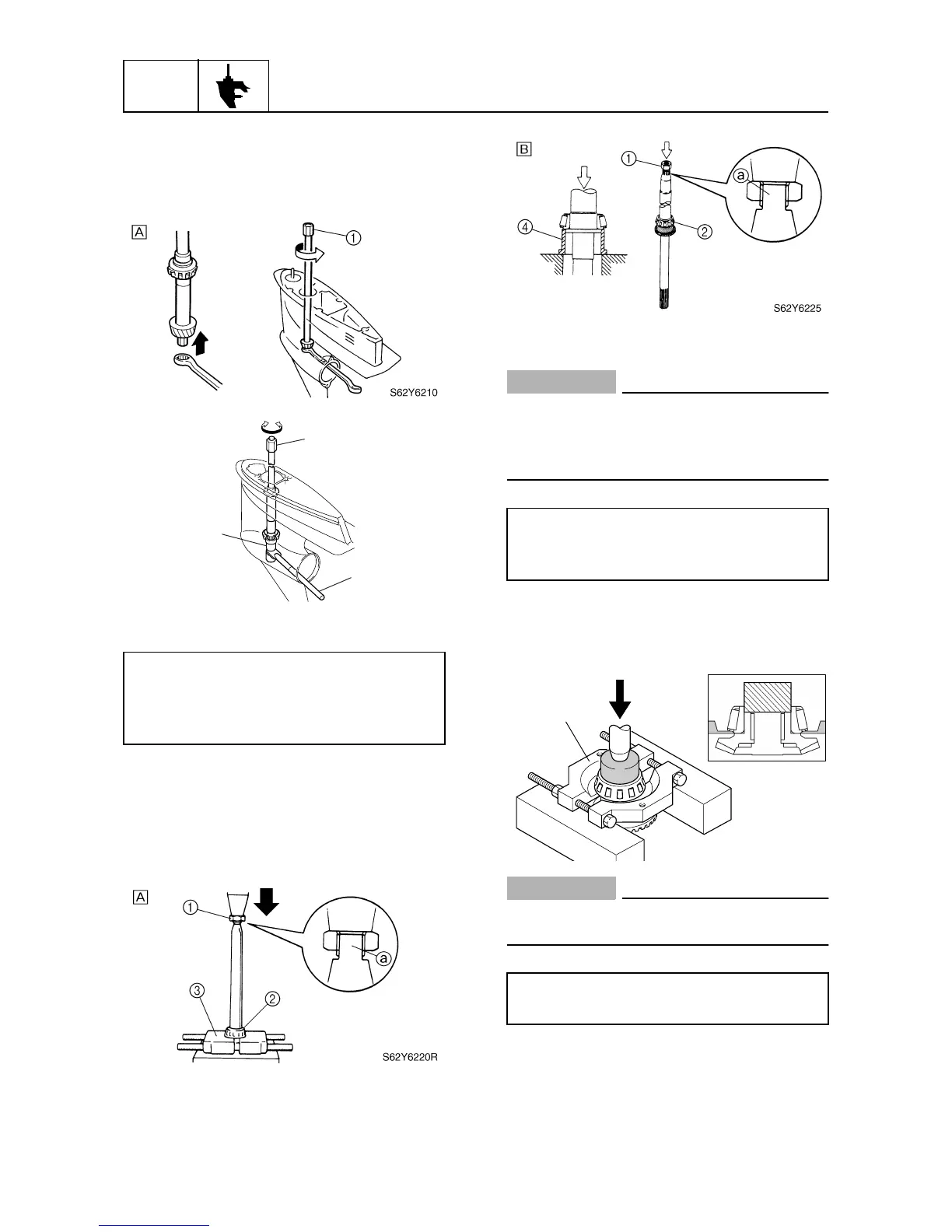

Removing the drive shaft
1. Remove the drive shaft assembly and
pinion, and then pull out the forward
gear.
È
For USA and Canada
É
For worldwide
Disassembling the drive shaft
assembly
1. Install the pinion nut
1
, tighten it finger
tight, and then remove the drive shaft
bearing
2
using a press.
È
For USA and Canada
É
For worldwide
CAUTION:
• Do not press the drive shaft threads
a
directly.
• Do not reuse the bearing, always
replace it with a new one.
Disassembling the forward gear
1. Remove the taper roller bearing from the
forward gear using a press.
CAUTION:
Do not reuse the bearing, always replace
it with a new one.
Drive shaft holder
1
: YB-06049
Drive shaft holder 4
2
: 90890-06518
Pinion nut holder
3
: 90890-06505
Socket adapter 1
4
: 90890-06506
S62Y6850R
2
4
3
É
Bearing splitter plate
3
: YB-06219
Bearing inner race attachment
4
:
90890-06641
Bearing splitter plate
1
: YB-06219
Bearing separator
1
: 90890-06534
S62Y6740K
