62Y3A11
7-78
1
2
3
4
5
6
7
8
I

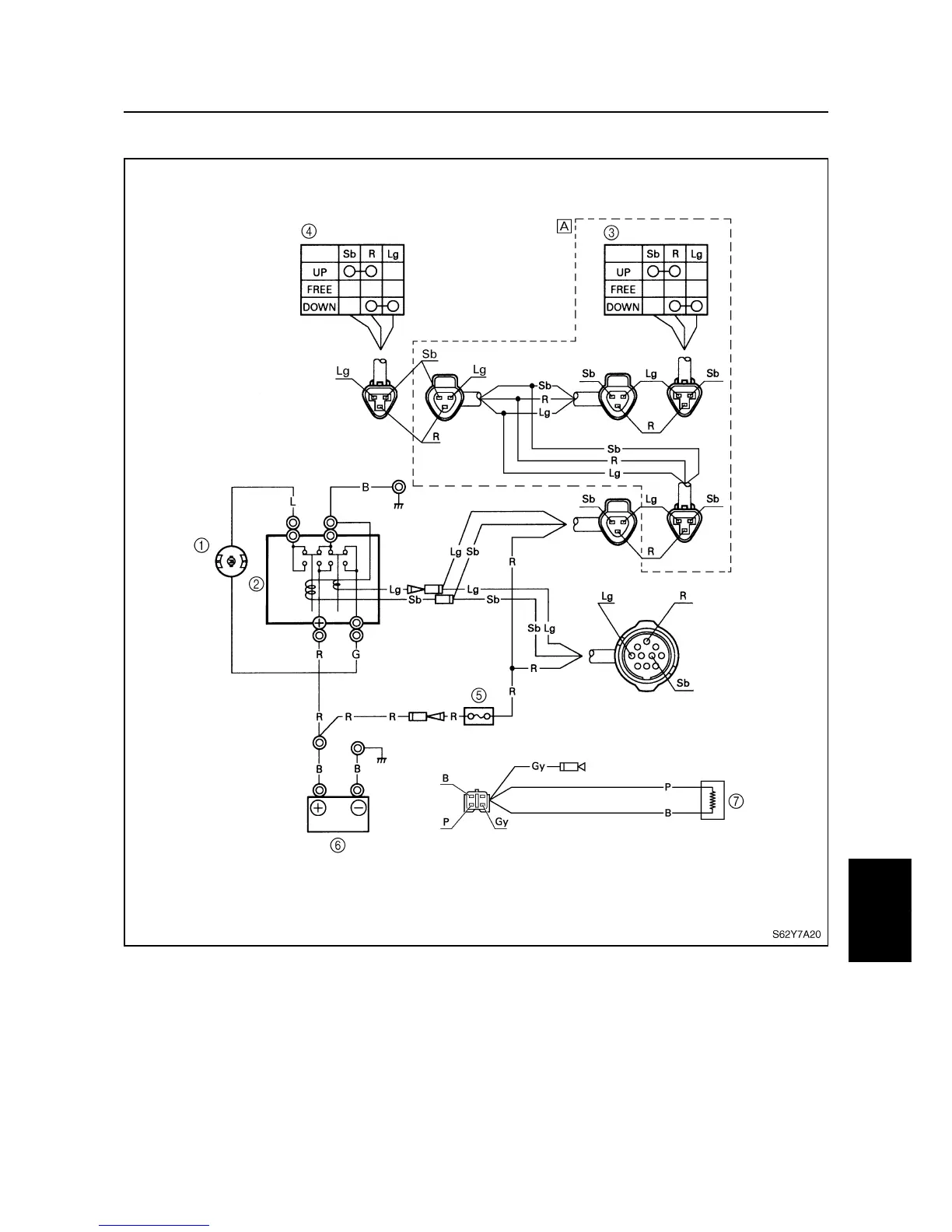

Power trim and tilt electrical system
7
1
Power trim and tilt motor
2
Power trim and tilt relay
3
Trailer switch
4
Power trim and tilt switch
5
Fuse
6
Battery
7
Trim sensor
È
Models with trailer switch
B: Black
G: Green
Gy : Gray
L: Blue
Lg : Light green
P: Pink
R: Red
Sb : Sky blue
Power trim and tilt motor / Power trim and tilt electrical system
