BRKT
Bracket unit
7-77
62Y3A11

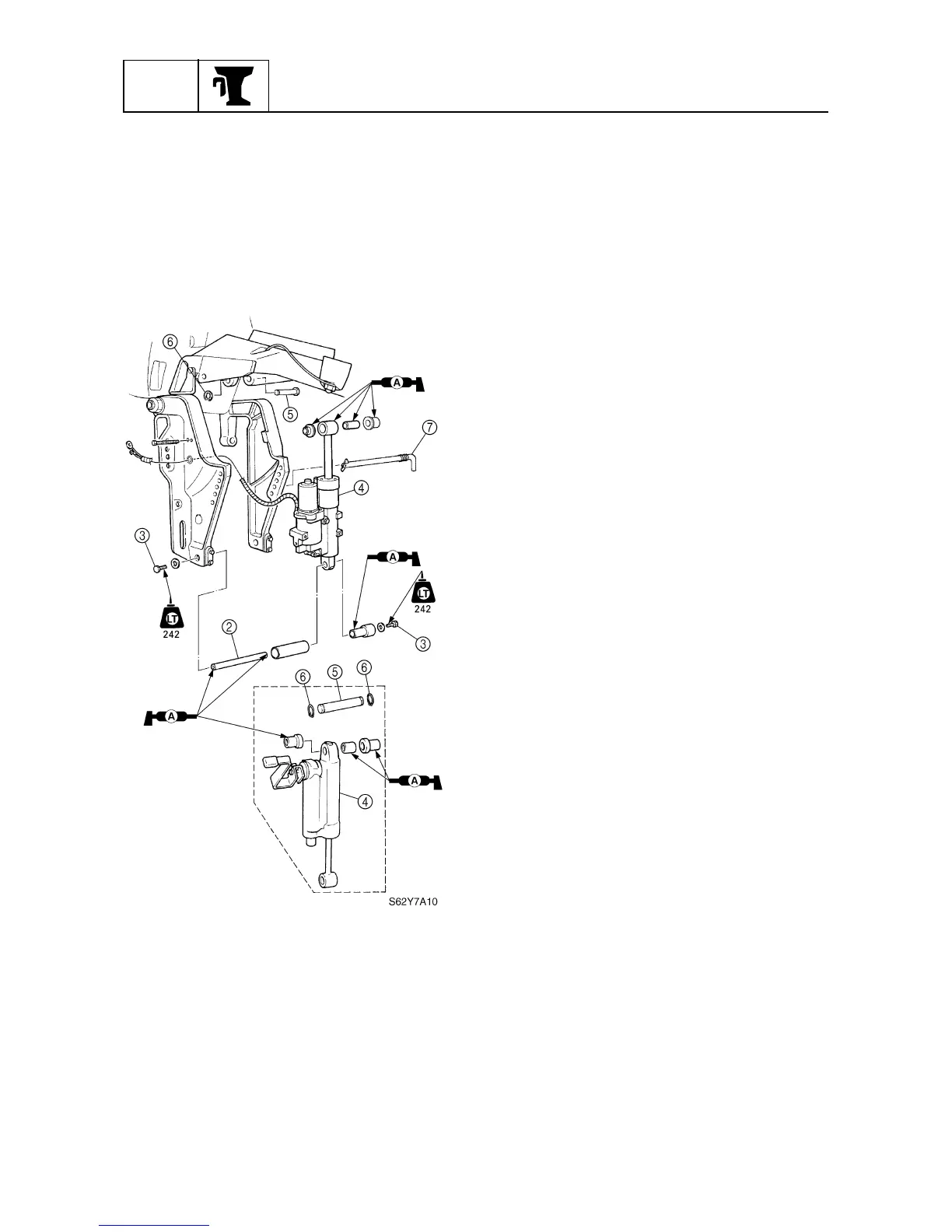

2. Install the shaft
2
and bolts
3
onto both
clamp brackets together with the power
trim and tilt/hydro tilt
4
.
3. Install the tilt ram upper end into the
swivel bracket with the shaft
5
and cir-
clip(s)
6
.
4. Install the tilt pin
7
.
