Yamaha F50A - Page 248

LOWR
Lower unit
6-49
62Y3A11

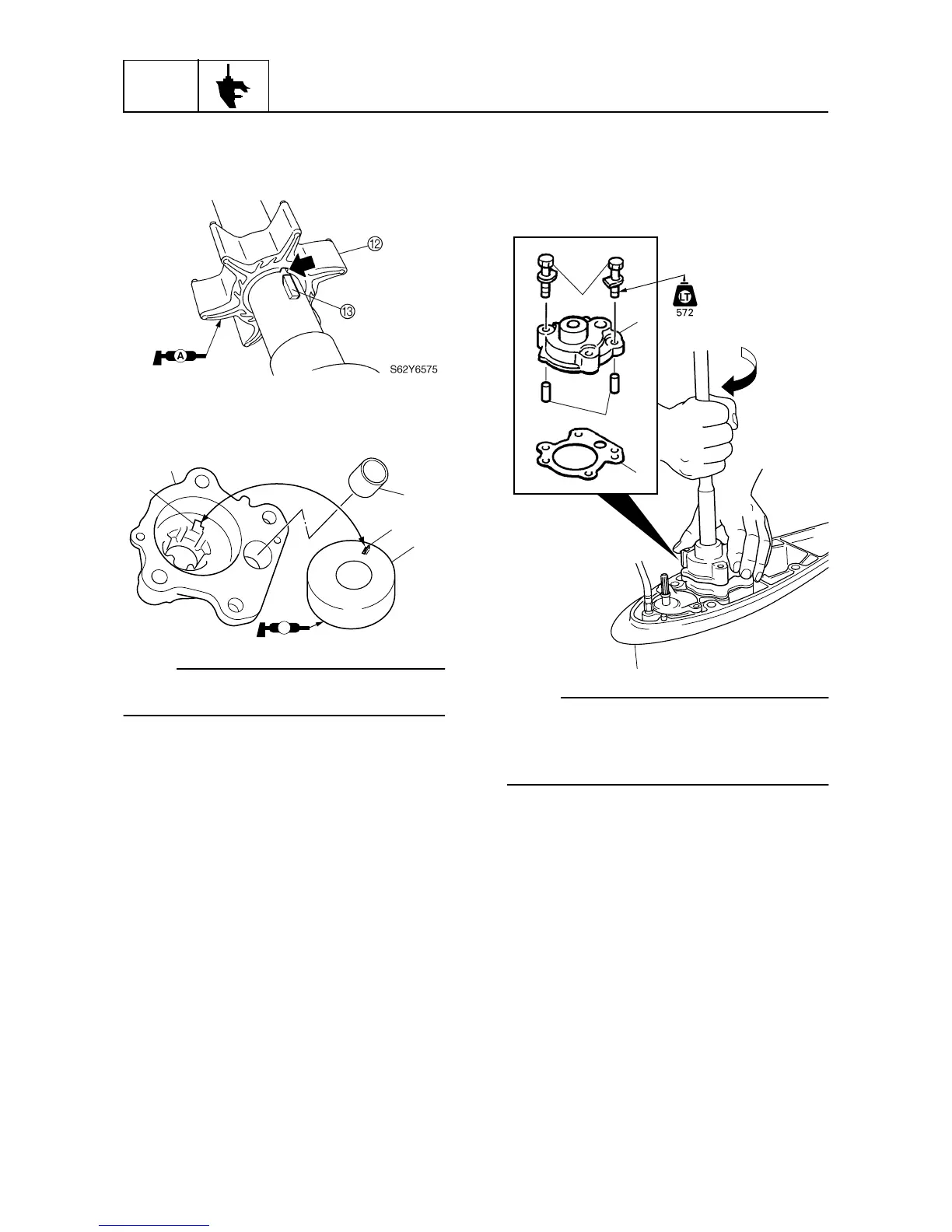

6. Align the groove on the impeller
B
with
the Woodruff key
C
, and then install it to
the drive shaft.
7. Install the insert plate cartridge
D
and
grommet
E
into the pump housing
F
.
NOTE:
Align the insert plate cartridge projection
c
with the hole
d
in the pump housing.
8. Install the new gasket
G
, pump housing
assembly
F
, and dowel pins
H
to the
lower case.
9. Install and tighten the bolts
I
.
NOTE:
When installing the pump housing, apply
grease to the inside of the housing, and then
turn the drive shaft clockwise while pushing
down the pump housing.
S62Y6580
F
E
D
A
d
c
S62Y6585
F
I
H
G
