NOTE:
• Install the needle bearing with the manufac-
ture identification mark
a
facing upward.
• When using the driver rod, do not strike the
special tool in a manner that will force the
stopper
b
out of place.

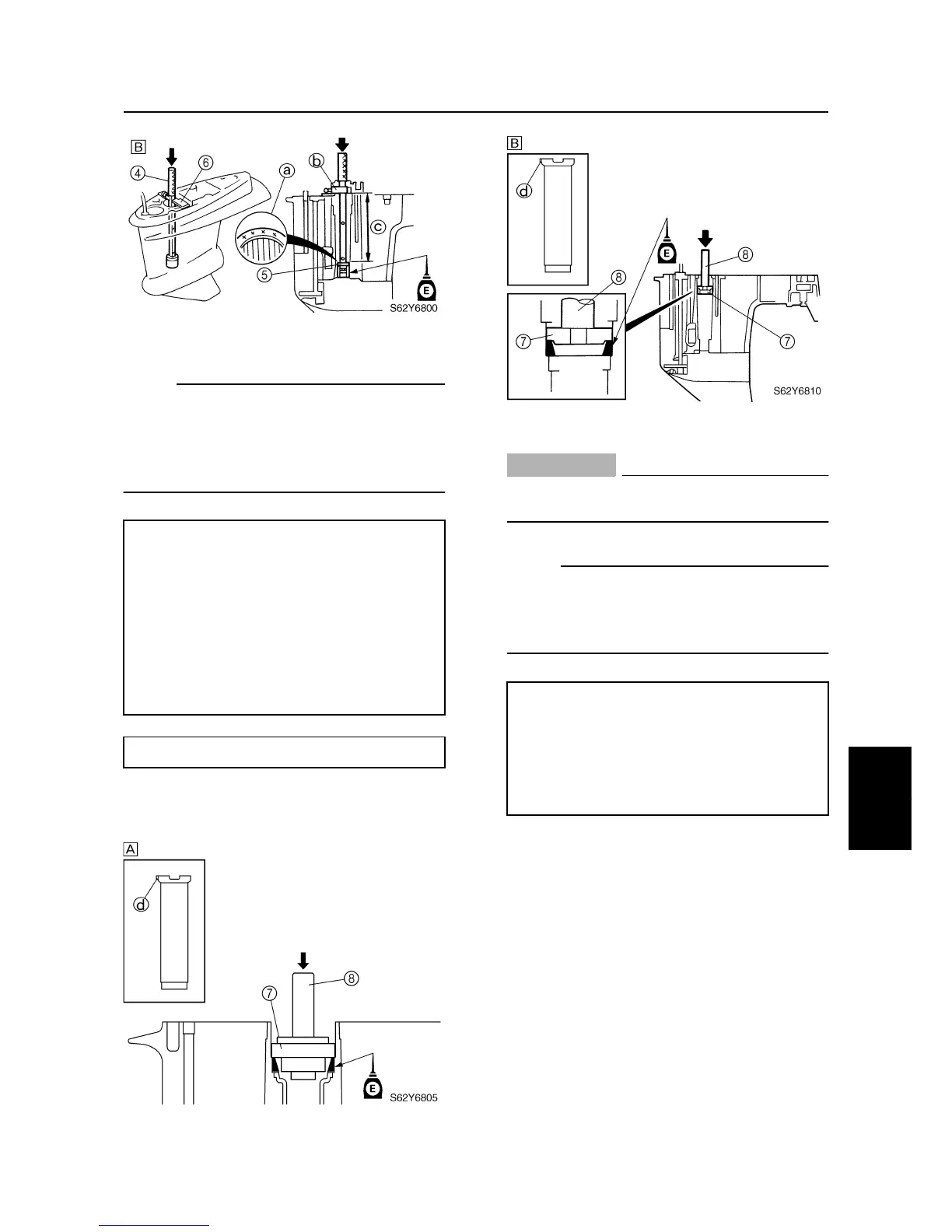

2. Install the sleeve, original shim(s), and
drive shaft bearing outer race.
È
For USA and Canada
É
For worldwide
CAUTION:
Add or remove shims, if necessary, when
replacing the pinion or lower case.
NOTE:
• Apply the gear oil to the inside and outside
of the sleeve.
• Install the sleeve by facing the projection
d
forward.
Driver handle
1
: YB-06071
Drive shaft needle bearing remover and
installer
2
: YB-06155
Drive shaft needle bearing depth stop
3
:
YB-34473
Driver rod SL
4
: 90890-06602
Needle bearing attachment
5
:
90890-06611
Bearing depth plate
6
: 90890-06603
Depth
c
: 186.4–188.6 mm (7.34–7.43 in)
Crank upper and lower seal installer
7
:
YB-06244
Bearing outer race attachment
7
:
90890-06626
Driver handle
8
: YB-06071
Driver rod LL
8
: 90890-06605
Drive shaft and lower case (T50/FT50B, FT50C)
