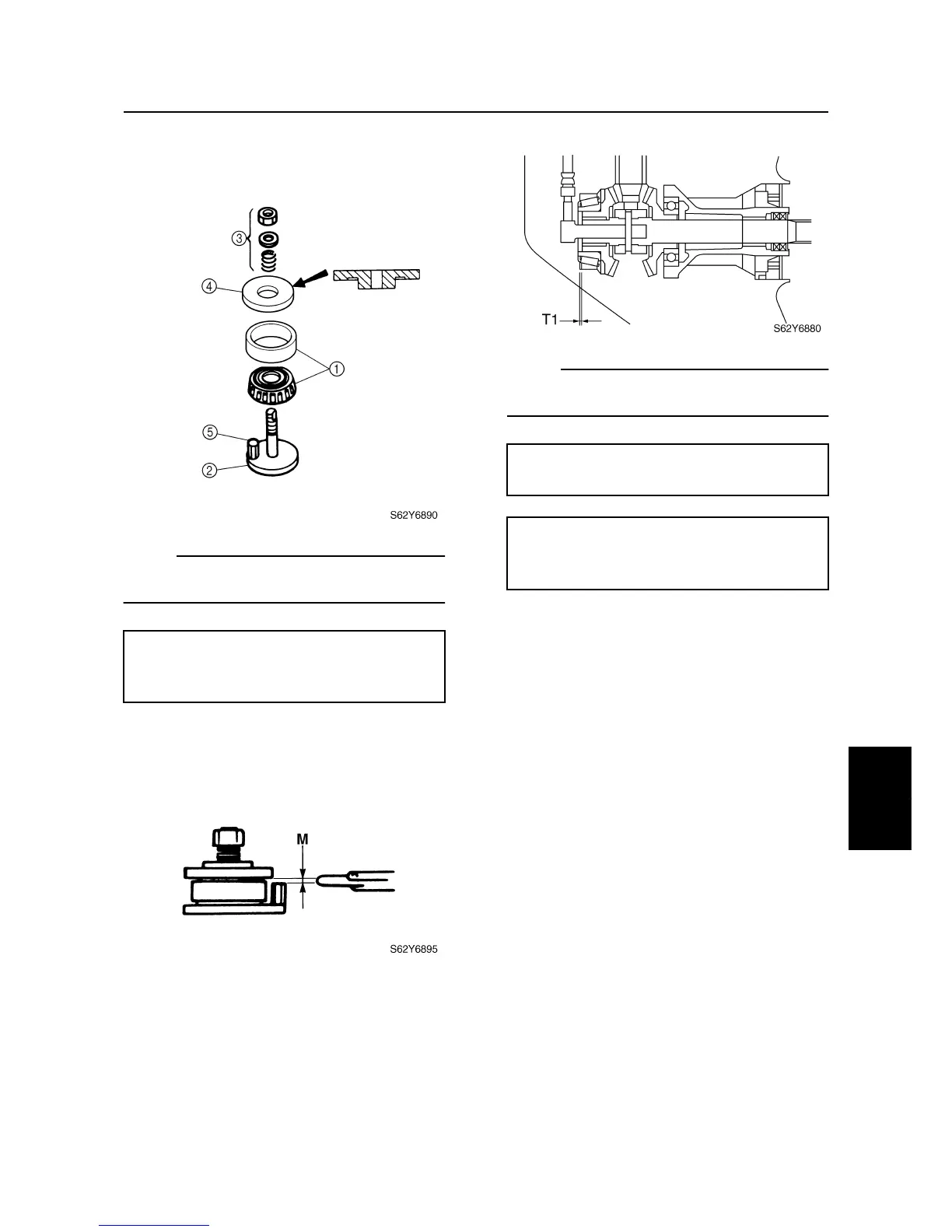

2. Install the taper roller bearing
1
to the
shim selecting tools.
NOTE:
Tighten the nut four turns after it contacts the
spring.
3. Measure the clearance (M) between the
gauge pin and the press plate.
4. Select the forward gear shims (T1).
NOTE:
The sum of T1 and M should not be more
than M0.
Forward gear shim selecting tools:
YB-34446-1
2
, YB-34446-3
3
,
YB-34446-5
4
, YB-34446-7
5
Forward gear shim thickness (T1) =
M0 – M
Available shim thicknesses:
0.10, 0.12, 0.15, 0.18, 0.30, 0.40, and
0.50 mm
Shimming (T50) (for USA and Canada)
