Yamaha F50A - Page 36

GEN
INFO
General information
1-31
62Y3A11

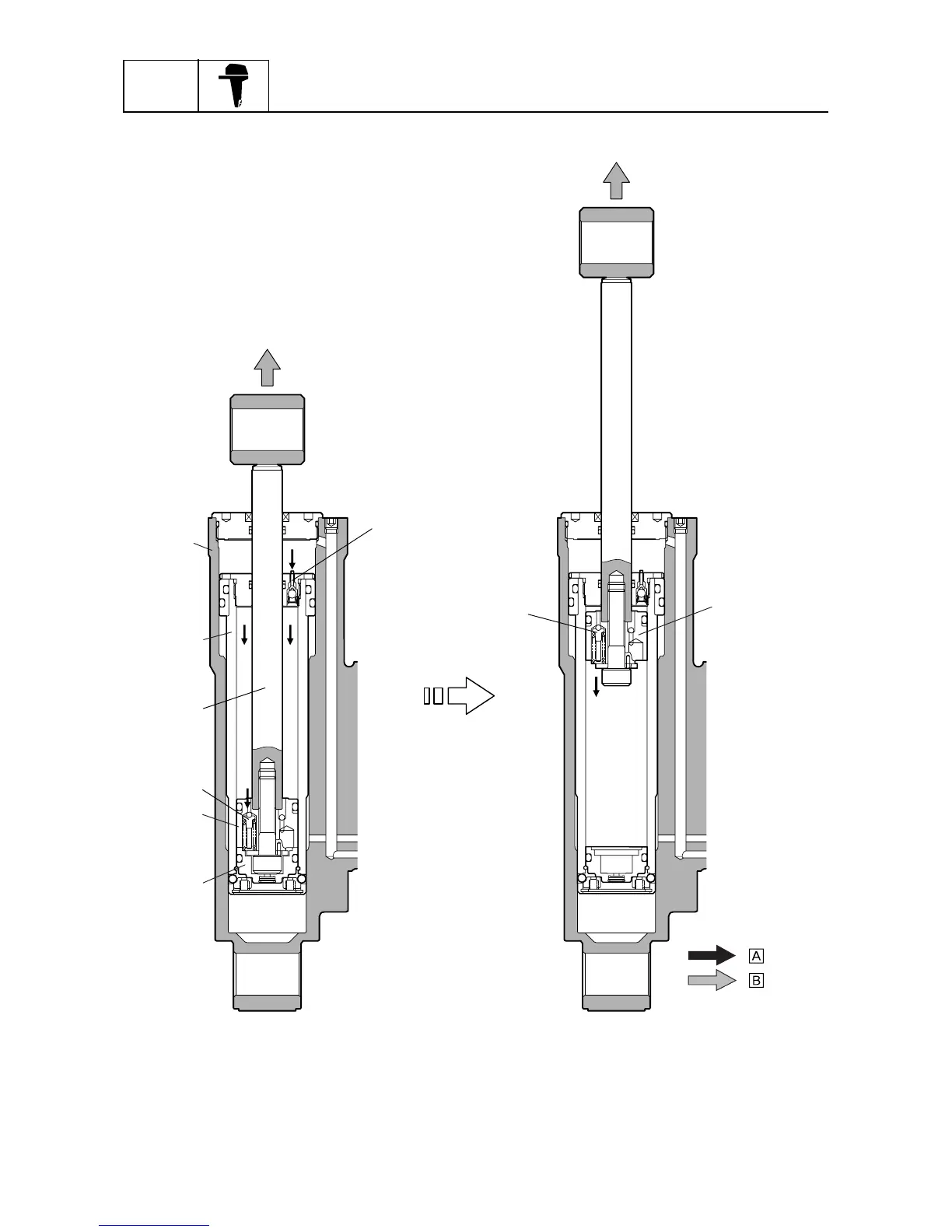

Damper function
1
Power trim and tilt cylinder
2
Trim cylinder
3
Ram
4
Tilt piston absorber
5
Tilt piston
6
Free piston
7
Check valve
8
Tilt piston absorber
9
Tilt piston
È
Send
É
Moving direction
:
:
S62Y1430
1
2
3
4
5
6
7
8
9
