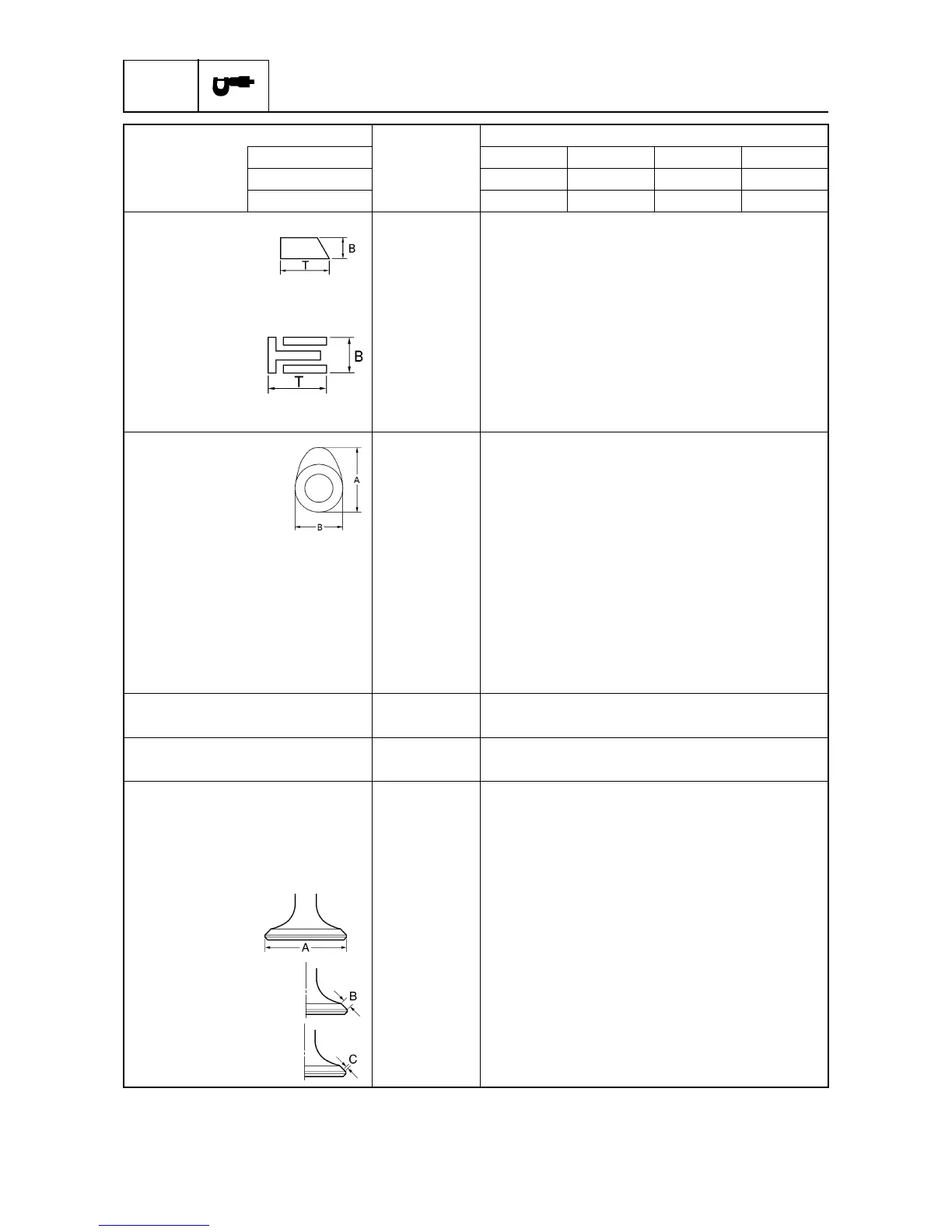

Yamaha F50A - Page 56

SPEC
Specifications
2-13
62Y3A11
2nd ring
Dimension B mm (in) 1.47–1.49 (0.058–0.059)
Dimension T mm (in) 2.49–2.51 (0.098–0.099)
End gap mm (in) 0.30–0.50 (0.012–0.020)
Side clearance mm (in) 0.03–0.07 (0.001–0.003)
Oil ring
Dimension B mm (in) 2.34–2.46 (0.092–0.097)
Dimension T mm (in) 2.75 (0.108)
End gap mm (in) 0.20–0.70 (0.008–0.028)
Side clearance mm (in) 0.05–0.19 (0.002–0.008)
Camshafts
Intake (A) mm (in) 30.89–30.99 (1.2161–1.2200)
Exhaust (A) mm (in) 30.82–30.92 (1.2135–1.2175)
Intake and
exhaust (B)
mm (in) 25.95–26.05 (1.0217–1.0256)
Camshaft journal diameter
#1 mm (in) 36.93–36.94 (1.4539–1.4543)
#2, #3, #4 mm (in) 36.94–36.95 (1.4543–1.4547)
Camshaft journal oil clearance
#1 mm (in) 0.055–0.100 (0.0022–0.0039)
#2, #3, #4 mm (in) 0.045–0.090 (0.0018–0.0035)
Maximum camshaft runout mm (in) 0.04 (0.0016)
Rocker arm shafts
Outside diameter mm (in) 15.98–15.99 (0.6291–0.6295)
Rocker arms
Inside diameter mm (in) 16.00–16.01 (0.6299–0.6303)
Valves
Valve clearance (cold)
Intake mm (in) 0.20
±
0.05 (0.008
±
0.002)
Exhaust mm (in) 0.30
±
0.05 (0.012
±
0.002)
Head diameter (A)
Intake mm (in) 29.9–30.1 (1.177–1.185)
Exhaust mm (in) 25.9–26.1 (1.020–1.027)
Face width (B)
Intake mm (in) 1.84–2.97 (0.072–0.117)
Exhaust mm (in) 1.98–3.11 (0.078–0.122)
Seat contact width (C)
Intake mm (in) 0.9–1.1 (0.035–0.043)
Exhaust mm (in) 0.9–1.1 (0.035–0.043)
Item Unit
Model
USA T50TR ———
Canada T50TR ———
Worldwide FT50BET FT50CEHD FT50CED FT50CET
