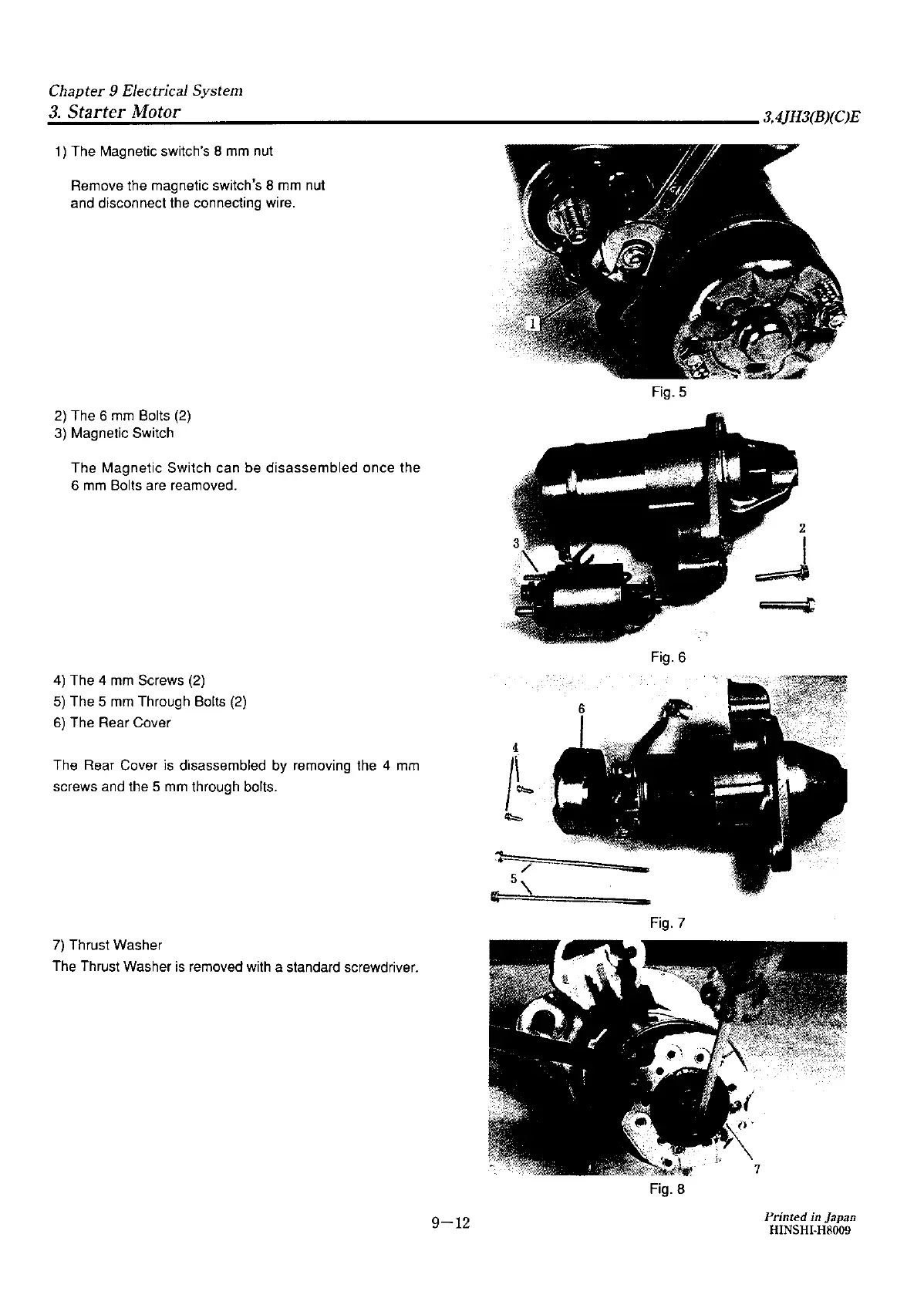

Chapter 9 Electrical System
.;;..3-~S;.;t~a.;;..rt;.;;.e.;;..r.;.M~ot;.;;.o.;;..r
__________________________
3,4JH3(B)(C)E
1)
The
Magnetic switch's 8 mm nut
Remove the magnetic switch's
8 mm nut
and disconnect the connecting
wire.
2) The 6 mm Bolts (2)
3) Magnetic Switch
The
Magnetic
Switch
can
be
disassembled
once
the
6 mm Bolts are reamoved.
4)
The
4 mm Screws (2)
5)
The
5 mm Through Bolts (2)
6)
The
Rear
Cover
The Rear Cover is disassembled by removing the 4 mm
screws and the
5 mm through bolts.
7) Thrust
Washer
The Thrust Washer is removed with a standard screwdriver.
4
/L
~
9-12
Fig. 5
Fig. 6
Fig. 7
Fig. 8
