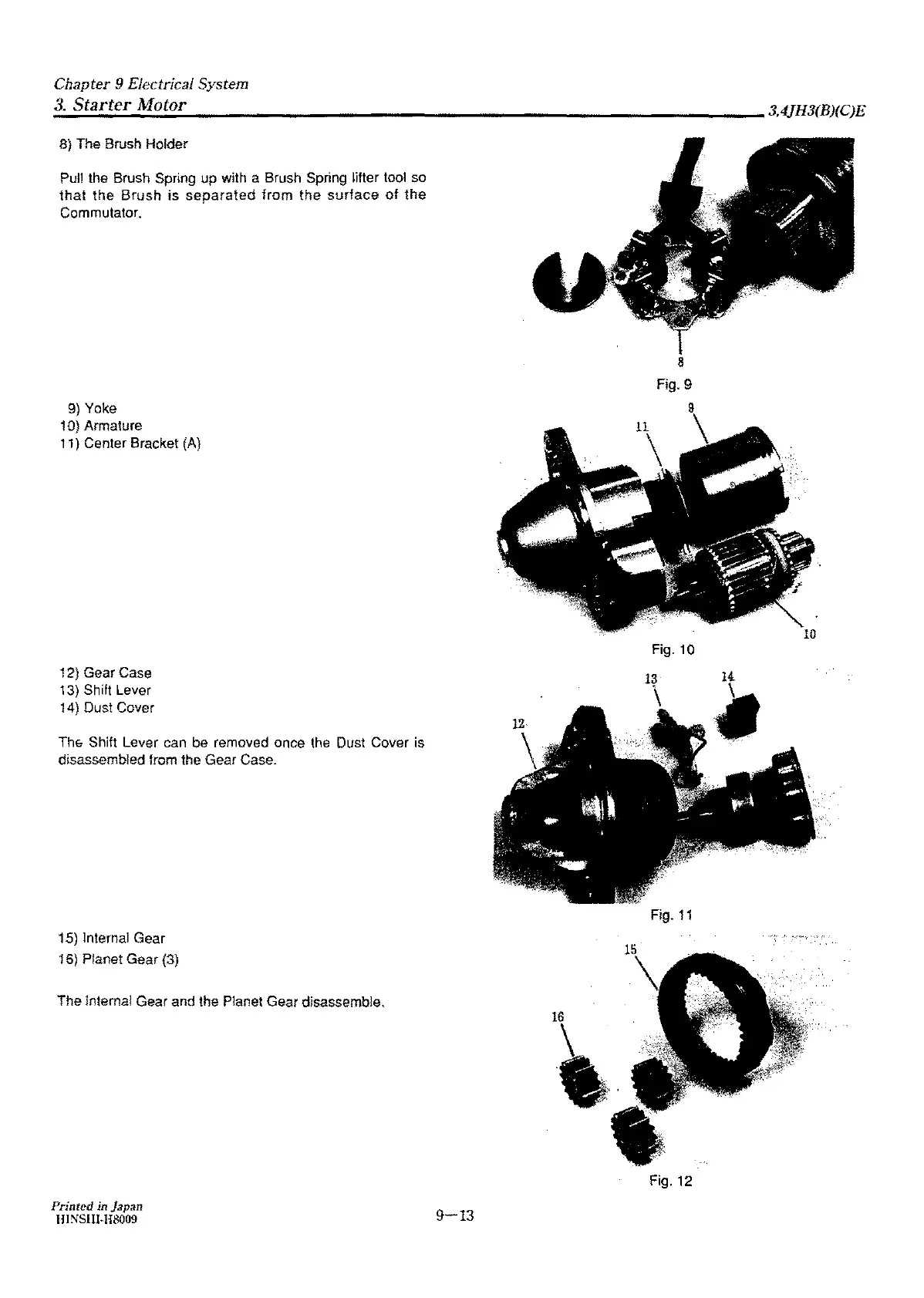

Chapter 9 Electrical System
.;.3;... S;;.t;;.;;a_.r,_te;...r_M..;.;.o_to.;;.r __________________________ 3,4JH3(B)(C)E
8) The Brush Holder
Pull the Brush Spring
up with a Brush Spring lifter tool so
that the Brush is separated from the surface of the
Commutator.
9} Yoke
10) Armature
11) Center Bracket (A}
12) Gear Case
13) Shift Lever
14) Dust Cover
Th& Shift Lever can be removed once the Dust Cover is
disassembled from the
Gear Case.
15) Internal
Gear
16} Planet Gear {3)
The lntemal
Gear and the Planet Gear disassemble.
Printed in Japan
HINSHI-H8009
9-13
16 .
\.
&.·:;.,
..
8
Fig.9
Fig.10
Fig. 11
··1:,
. ,.. .. ,
Fig.12
