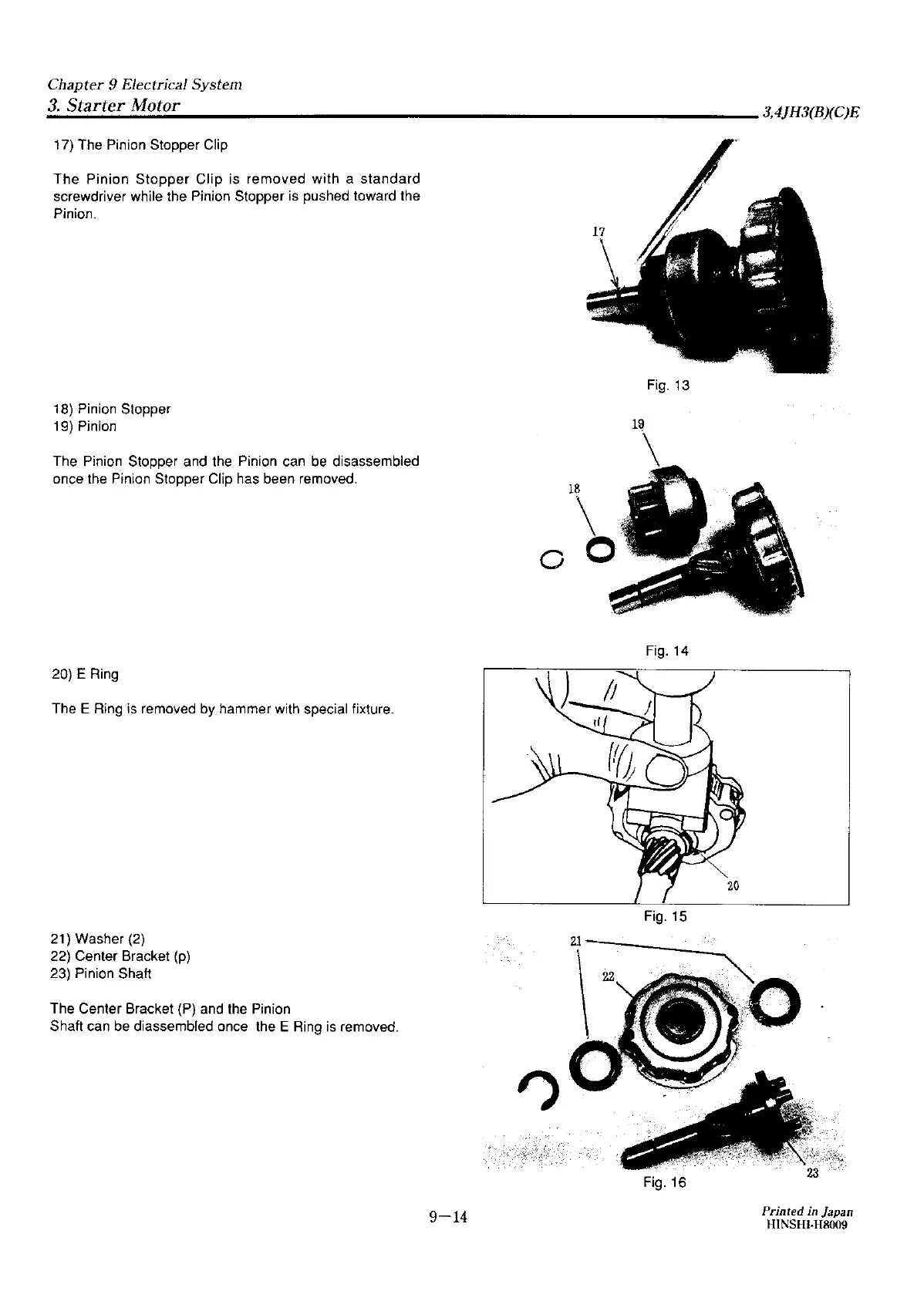

Chapter 9 Electrical
System
_3._S_t_a_r_te_r_M_o_to_r
__________________________
3,4JH3(B)(C)E
17) The Pinion Stopper Clip
The
Pinion
Stopper
Clip
is
removed
with
a
standard
screwdriver while the Pinion Stopper is pushed toward the
Pinion.
18) Pinion Stopper
19) Pinion
The Pinion Stopper and the Pinion can be disassembled
once the Pinion Stopper Clip has been removed.
20) E Ring
The
E Ring is removed by hammer with special fixture.
21) Washer (2)
22) Center Bracket (p)
23) Pinion Shaft
The Center Bracket (P) and the Pinion
Shaft can be diassembled once the
E Ring is removed.
0
9-14
Fig. 13
Fig. 14
Fig. 15
Fig. 16
Printed in Japan
HINSHI-H8009
