Chapter
10
Disassembly and Reassembly
,:;:;3·:..;D:;;.:,:;is:.:,:a,:;:,;ss::.,:e~m;,:,;b;;;;l:.::.Y..;;a;;,n;.;;d:..R:.;.;:.ea=.;s;.;;s~e;;;;;m;;.;b;.;;:lY::...----------------------
3,4JH3(B)(C)E

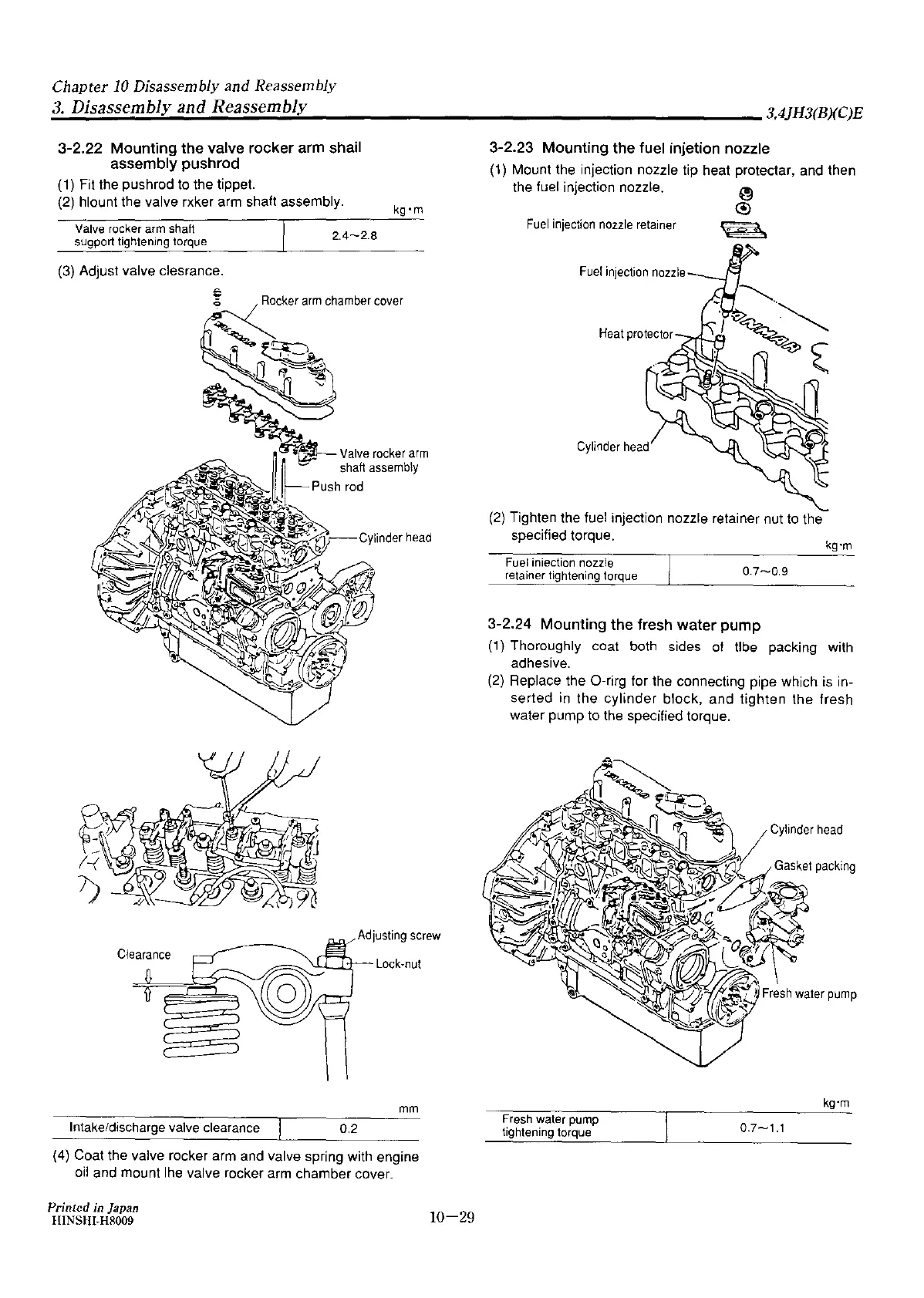

3-2.22 Mounting the valve rocker arm shail
assembly pushrod
(
1)
Fit the push rod to the tippet.
(2) hlount the valve rxker arm shaft assembly.
Valve rocker
arm
shaft
sugport tightening torque
(3) Adjust valve clesrance.
2.4-2.8
kg
•rn
~
Rocker
arm
chamber cover
~
alve
rocker
arm
aft
assembly
od
Clearance
Adjusting screw
Lock-nut
mm
Intake/discharge valve clearance
0.2
(4) Coat the valve rocker arm and valve spring with engine
oil and mount lhe valve rocker arm chamber cover.
Printed
in
Japan
HINSHI-H8009
10-29
3-2.23 Mounting the fuel injetion nozzle
(1) Mount the injection nozzle tip heat protectar, and then
the fuel injection nozzle.
Fuel
injection nozzle retainer
Fuel
injection nozzle
Cylinder
head
(2) Tighten the fuel injection nozzle retainer nut to the
specified torque.
kg·rn
Fuel
iniection nozzle
retainer tightening torque
0.7-0.9
3-2.24 Mounting the fresh
water
pump
(1} Thoroughly coat both sides at tlbe packing with
adhesive.
(2) Replace the O-rirg for the connecting pipe which is in-
serted
in
the
cylinder
block,
and
tighten
the
fresh
water
pump
to the specified torque.
Fresh
water pump
tightening torque
Cylinder
head
t
packing
esh water
pump
kg·m
0.7-1.1
