Chapter
10
Disassembly and Reassembly
_3_.
_D_is_a_s_se_m_bl_y_a_n_d_R_e_a_ss_e_m_b_l_y
_____________________
3,4]H3(B)(C)E

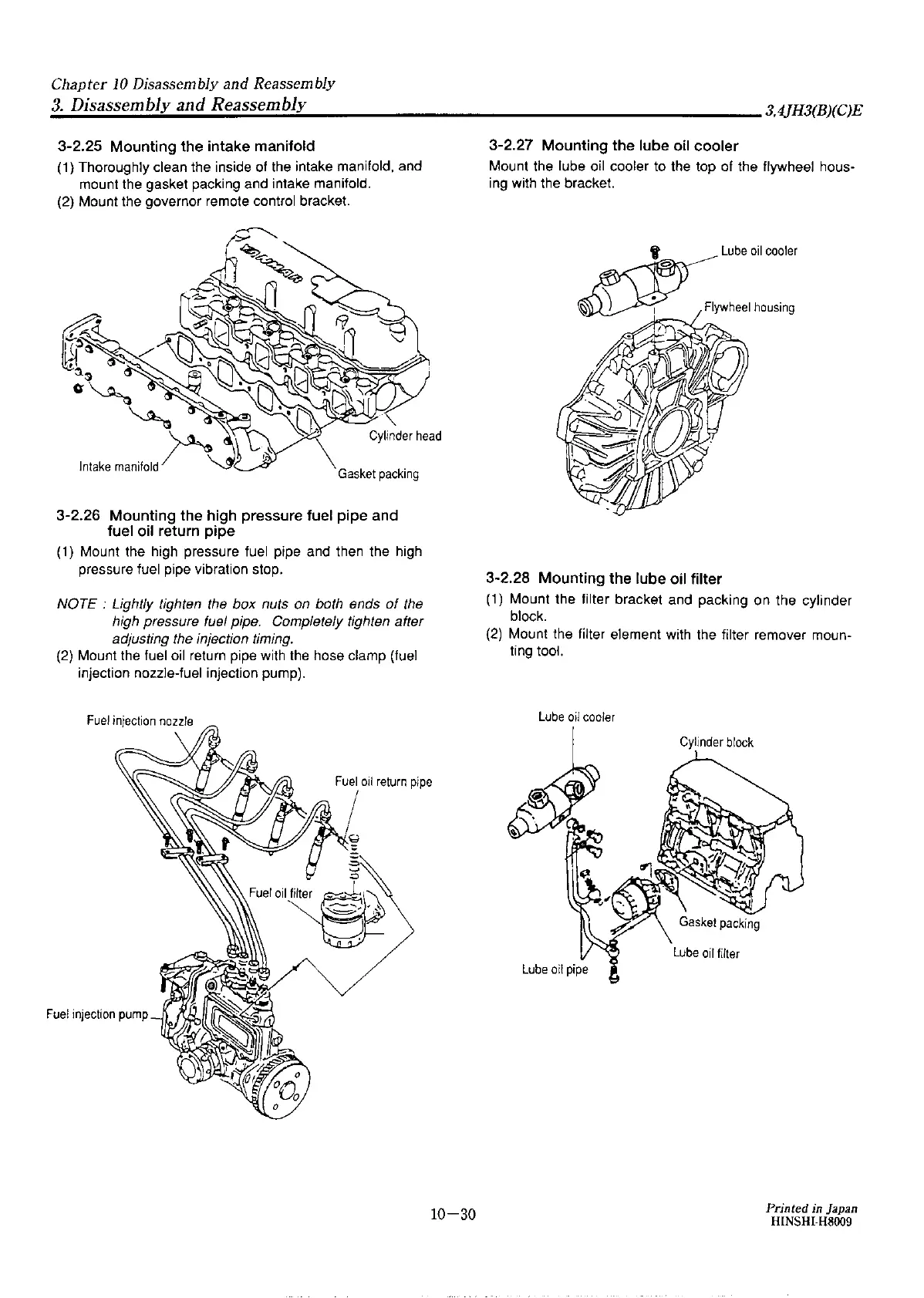

3-2.25 Mounting the intake manifold
(1)
Thoroughly clean the inside of the intake manifold, and
mount the gasket packing and intake manifold.
(2) Mount the governor remote control bracket.
~/
.
°'~
0-~
'¾
Intake
manifold
h
Gasket
packing
3-2.26 Mounting the high pressure fuel pipe and
fuel oil return pipe
( 1) Mount the high pressure fuel pipe and then the high
pressure fuel pipe vibration stop.
NOTE : Lightly tighten the box nuts
on
both ends
of
the
high pressure fuel pipe. Completely tighten after
adjusting the injection timing.
(2)
Mount the fuel oil return pipe with the hose clamp (fuel
injection nozzle-fuel injection pump).
Fuel
oil
return
pipe
10-30
3-2.27 Mounting the lube oil
cooler
Mount the lube
oil
cooler to the top of the flywheel hous-
ing with the bracket.
3-2.28 Mounting the lube oil filter
(1) Mount the filter bracket and packing on the cylinder
block.
(2) Mount the filter element with the filter remover moun•
ting tool.
Lube
oil
cooler
Cylinder
block
Lube
oil
filter
Printed in Japan
HINSHI-H8009
