Chapter
10
Disassembly
and
Reassembly
~3-:..D~is;:::a::;;s;;;;se~m=bl:::Y..:::an;;;d:;..:.R;.;e;;;a;;.ss;.;e;.;m=bl;,;Y
______________________
3.4]H3(B)(C)E

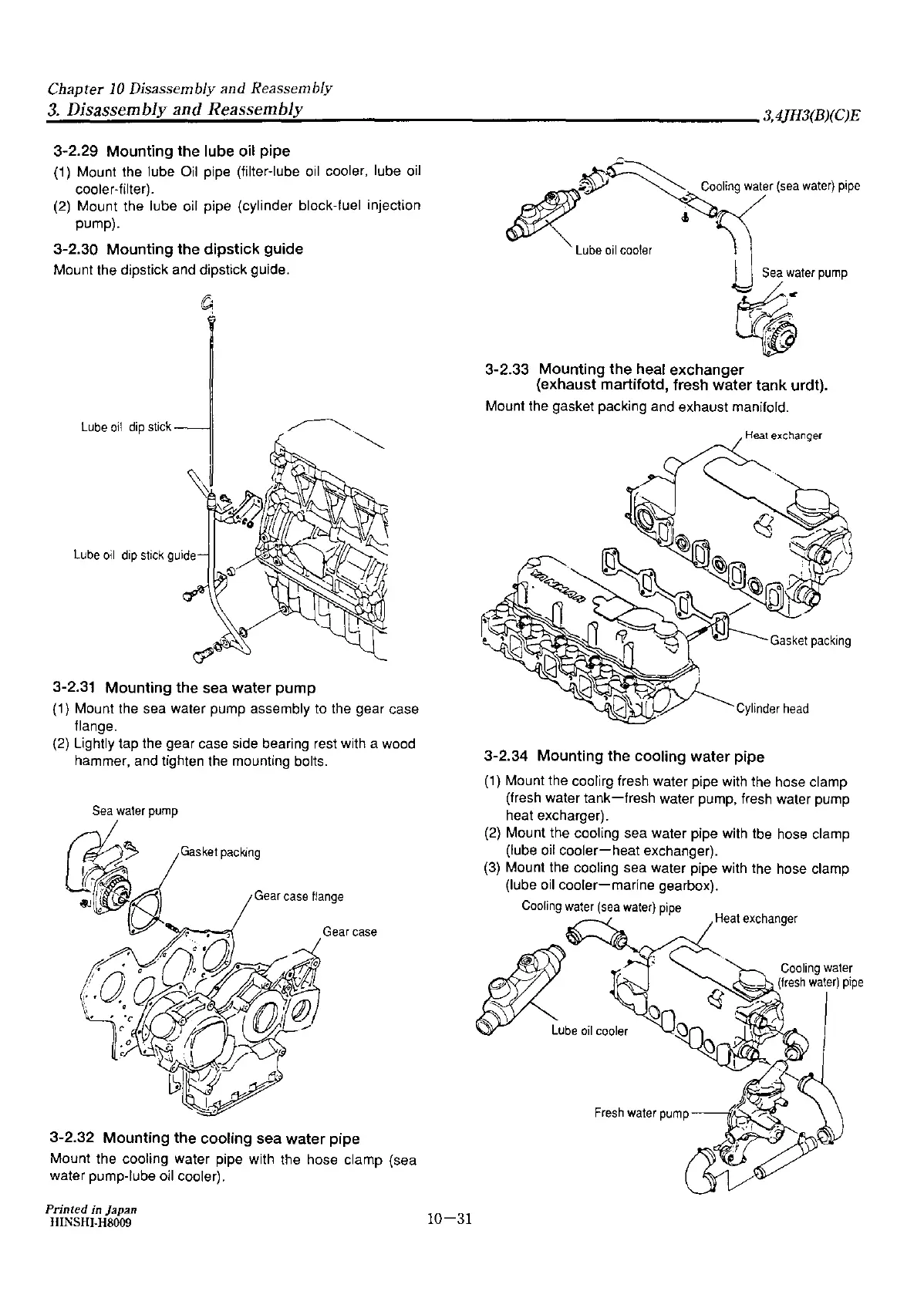

3-2.29 Mounting the lube
oil
pipe
(1)
Mount the lube Oil pipe (filter-lube oil cooler, lube oil
cooler-filter).
(2)
Mount the lube oil pipe (cylinder block-fuel injection
pump).
3-2.30 Mounting the dipstick guide
Mount the dipstick and dipstick guide.
Lube
oil
dip
stick
3-2.31
Mounting
the
sea
water
pump
(1)
Mount the sea water pump assembly to the gear case
flange.
(2)
Lightly tap the gear case side bearing rest with a wood
hammer, and tighten the mounting bolts.
Sea
water
pump
Gasket
packing
Gear
case
flange
• • J
Gear
case
'
: • J
/
3-2.32 Mounting the cooling sea water pipe
Mount the cooling water pipe with the hose clamp (sea
water pump-lube oil cooler).
Printed
in
Japan
IIINSHI-H8009
10-31
,~
~
Lube
011
cooler
Cooling
water
(sea
water)
pipe
3-2.33 Mounting the heal exchanger
(exhaust martifotd, fresh water tank urdt).
Mount the gasket packing and exhaust manifold.
Heat exchanger
Gasket
packing
Cylinder
head
3-2.34 Mounting the cooling water pipe
(1)
Mount the coolirg fresh water pipe with the hose clamp
(fresh water
tank-fresh
water pump, fresh water pump
heat excharger).
(2)
Mount the cooling sea water pipe with tbe hose clamp
(lube oil
cooler-heat
exchanger).
(3)
Mount the cooling sea water pipe with the hose clamp
(lube oil
cooler-marine
gearbox).
Cooling
water
(sea
water)
pipe
Heat
exchanger
Cooling
water
.:--;,-_-.s'?,(fresh
water)
pipe
