ABB ACQ80-04 Series User Manual

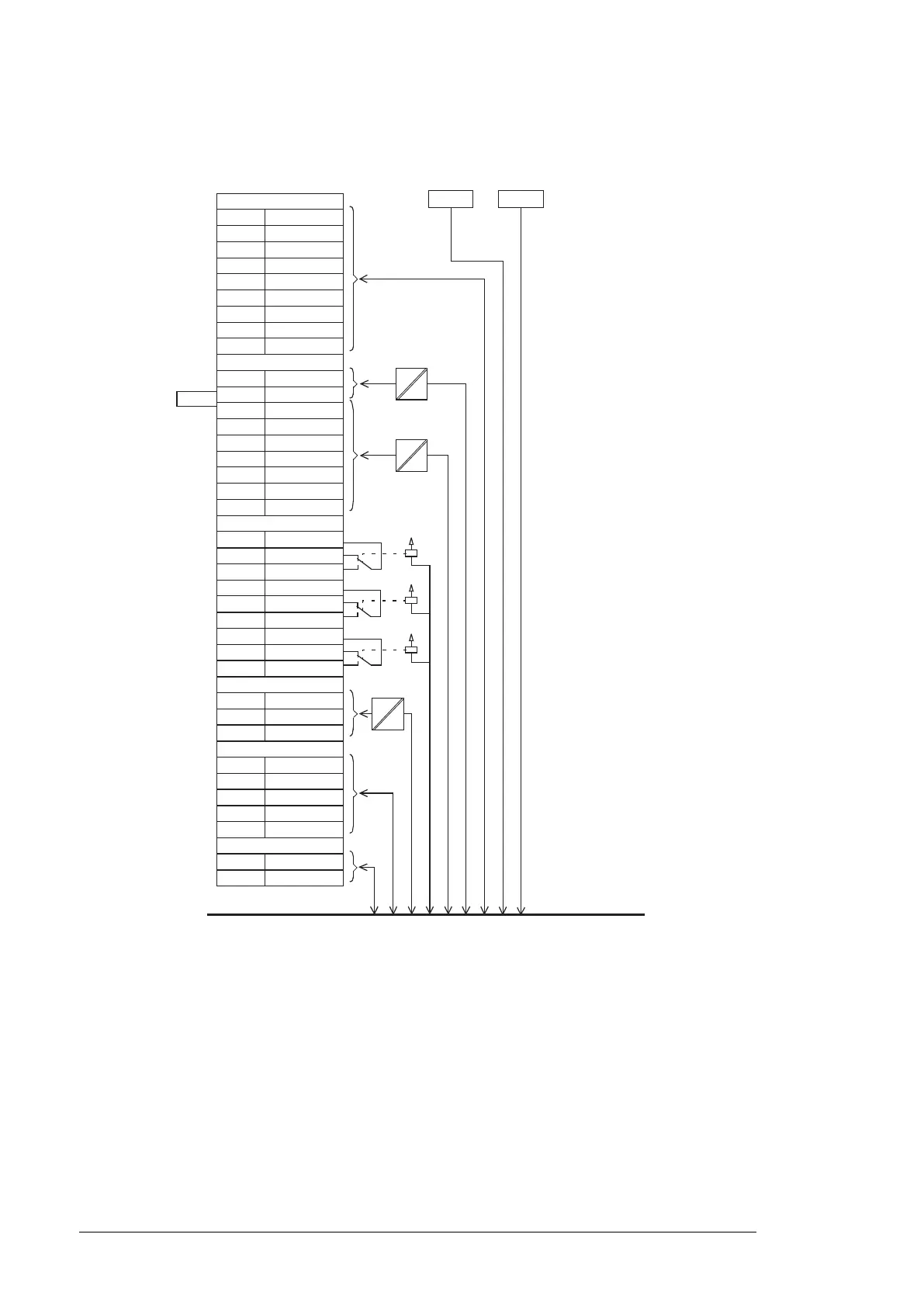

Grounding of frames R6…R8
X1
1SCR
2AI1
3AGND
4 +10V
5AI2
6AGND
7AO1
8AO2
9AGND
X2 & X3
10 +24V
11 DGND
12 DCOM
13 DI1
14 DI2
15 DI3
16 DI4
17 DI5
18 DI6
X6, X7, X8
19 RO1C
20 RO1A
21 RO1B
22 RO2C
23 RO2A
24 RO2B
25 RO3C
26 RO3A
27 RO3B
X5
29 B+
30 A-
31 DGND
X4
34 OUT1
35 OUT2
36 SGND
37 IN1
38 IN2
X10
40 24VAC/DC+in
41 24VAC/DC-in
Ground
Slot 1 Slot 2
*
)
*
)
Jumper installed at factory
Auxiliary circuit power consumption
Maximum external power supply:
Frames R0…R5: 25 W, 1.04 A at 24 V AC/DC
Frames R6…R8: 36 W, 1.50 A at 24 V AC/DC (as standard, terminals 40…41)
130 Technical data
